Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Federal Pioneer |
| Model | FKDL22200 |
| Stock # | CB - 1558 |
Description

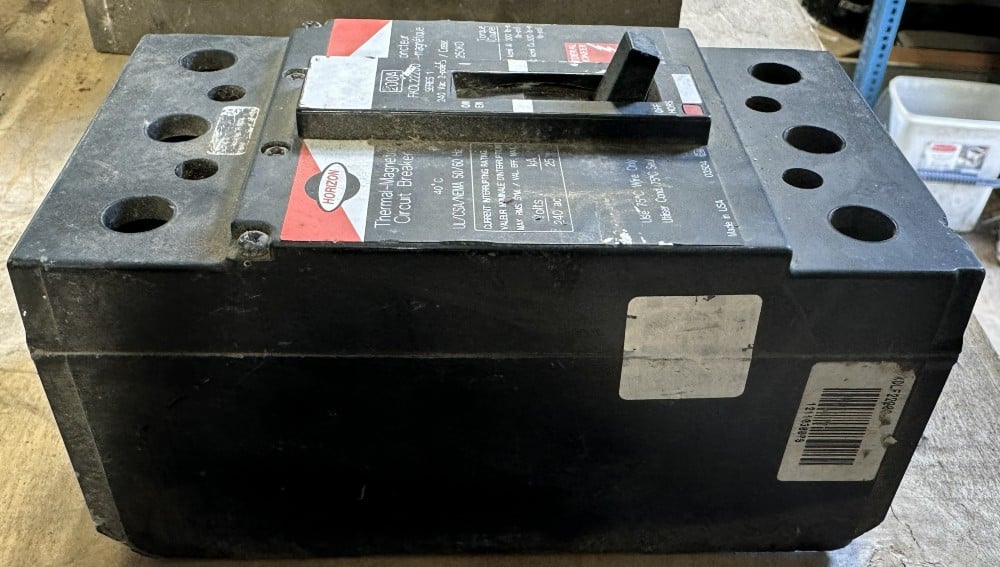

Federal Pioneer Horizon FKDL22200 Molded Case Circuit Breaker, Series 1
200A – 2-Pole (3-Pole Frame) – 240V AC – Thermal-Magnetic, Fixed Trip – 25kA @ 240V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Federal Pioneer Horizon thermal-magnetic molded case circuit breaker, catalog FKDL22200, Series 1. Rated 200A at 40°C, 2-pole, 240V AC 50/60 Hz, with fixed, non-adjustable trip. Interrupting rating of 25kA at 240V AC. Two-pole breaker built in a three-pole frame. Made in U.S.A. UL / CSA / NEMA rated.
SPECIFICATIONS
Manufacturer: Federal Pioneer (Horizon), Made in U.S.A.
Series: Horizon, Series 1
Catalog #: FKDL22200
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 2 (in 3-pole frame)
Current Rating: 200A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 240V AC, 50/60 Hz
Interrupting Rating: 25kA @ 240V AC

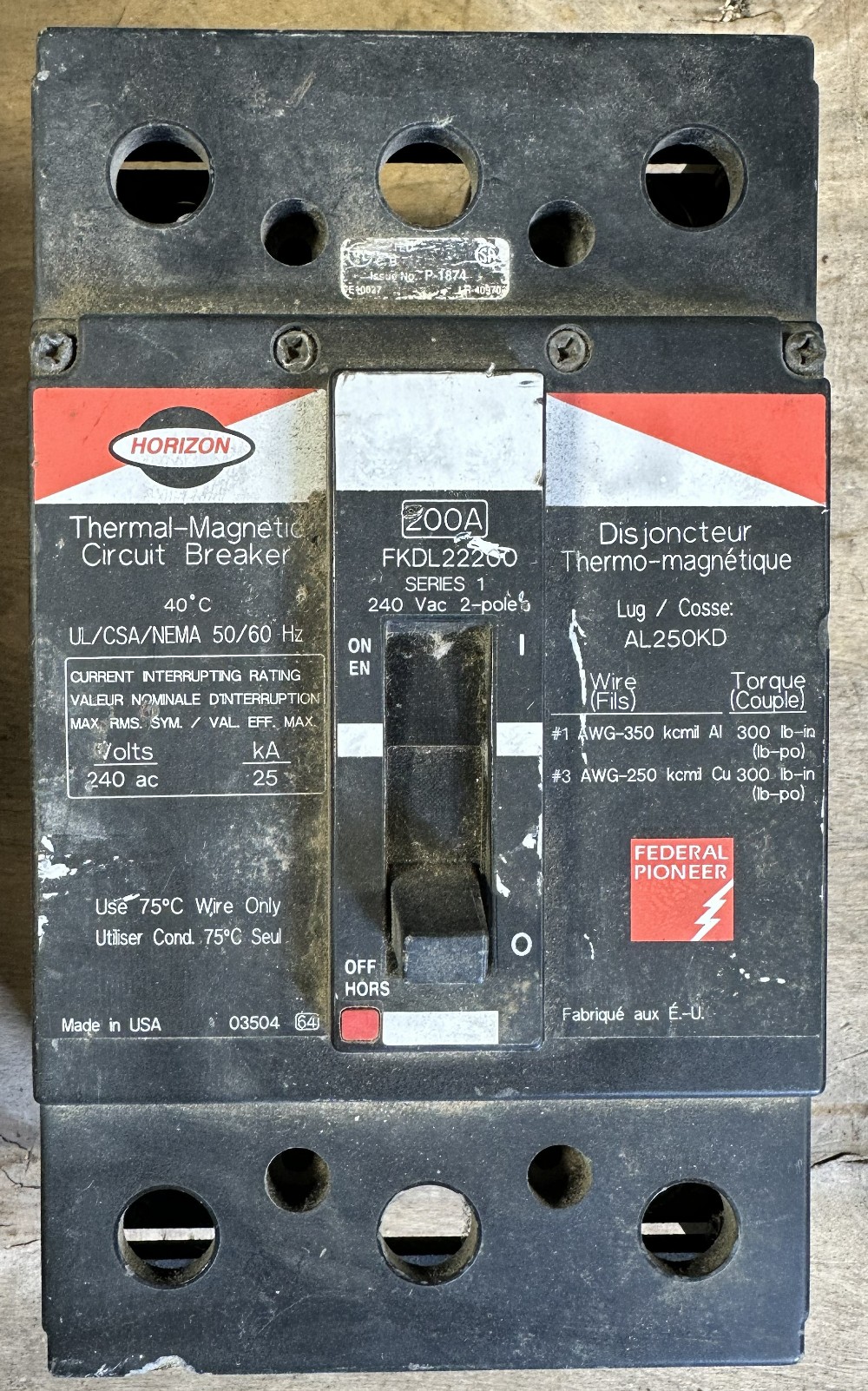

Wire Rating (per nameplate lug data): AL250KD – #1 AWG–350 kcmil Al / #3 AWG–250 kcmil Cu; torque 300 lb-in; 75°C wire only
Approvals: UL / CSA / NEMA
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1558
