Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Eaton |
| Stock # | CB - 1617 |
Description
Eaton CSRL02200 – Type CSR
200A, 120/240 VAC, 2 Pole, 25kA – Thermal-Magnetic Circuit Breaker
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Eaton Type CSR 2-pole circuit breaker, catalogue no. CSRL02200. It is rated 200A, 120/240 VAC, 60 Hz, with a non-adjustable thermal-magnetic trip (40°C calibration). Interrupting rating is 25kA RMS symmetrical at 120/240 VAC. It has Cu/Al lugs for #2 AWG to 300 kcmil and is HACR rated. UL listed and CSA certified. Type CSR breakers are commonly used as main breakers in Eaton loadcentres.
SPECIFICATIONS
Manufacturer: Eaton
Catalogue No.: CSRL02200
Type: CSR
Amperage: 200A
Voltage: 120/240 VAC, 60 Hz
Poles: 2
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 25kA RMS sym. @ 120/240 VAC
Lugs: Cu/Al, #2 AWG – 300 kcmil; 250 lb-in torque
Features: HACR type
Style No.: 7803C07G54
Approvals: UL listed (E7819), CSA (LR 43556)
CONDITION

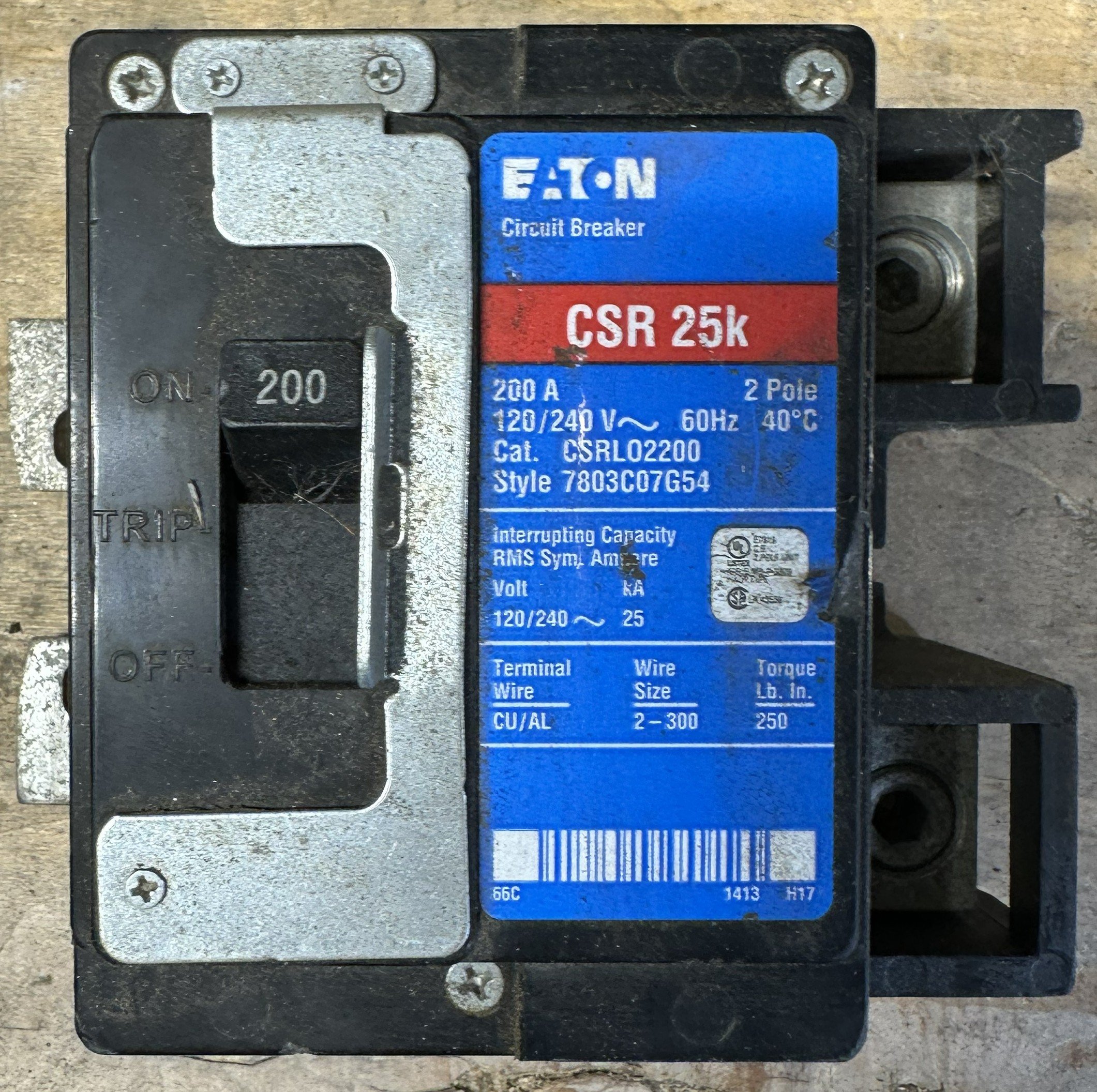

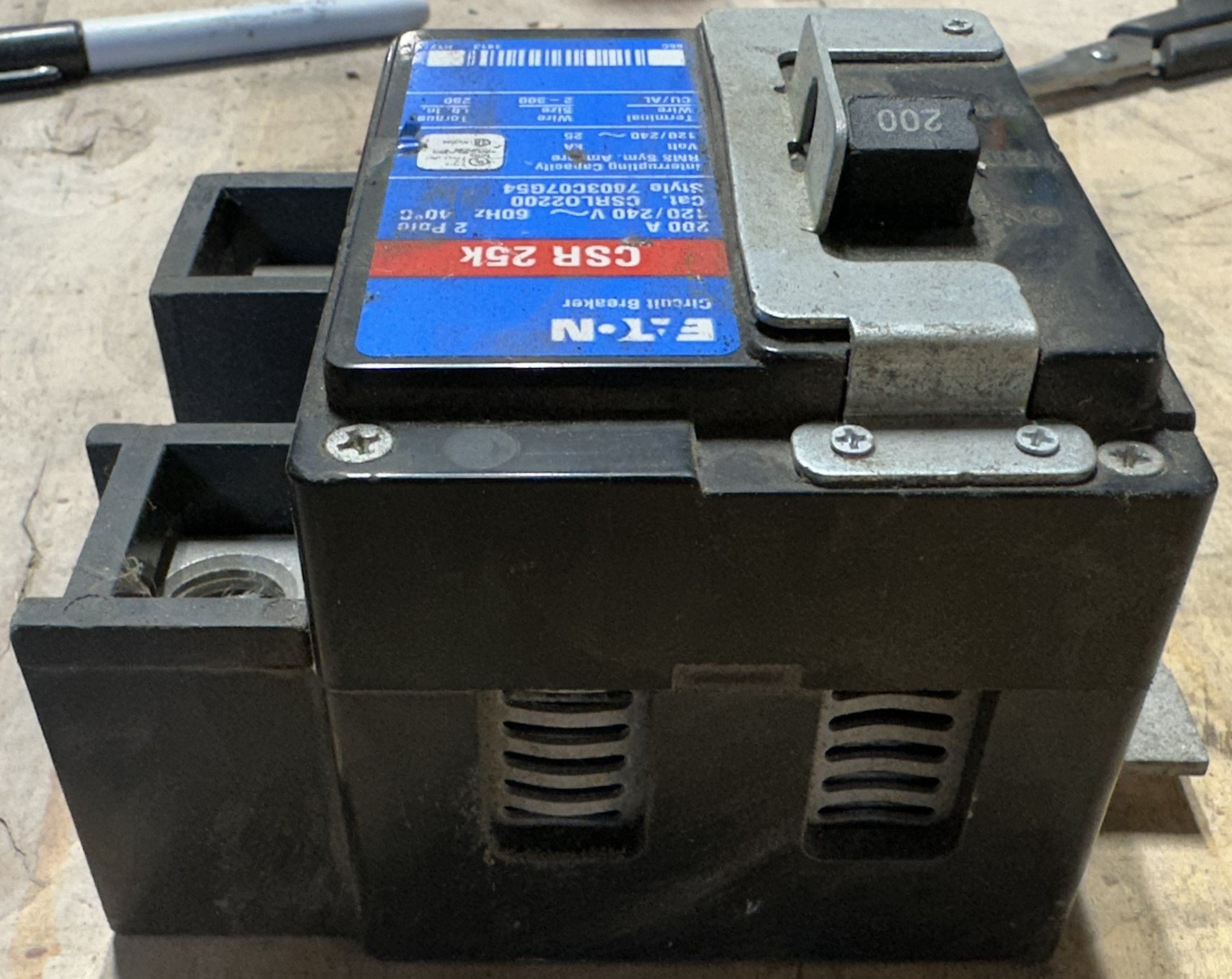

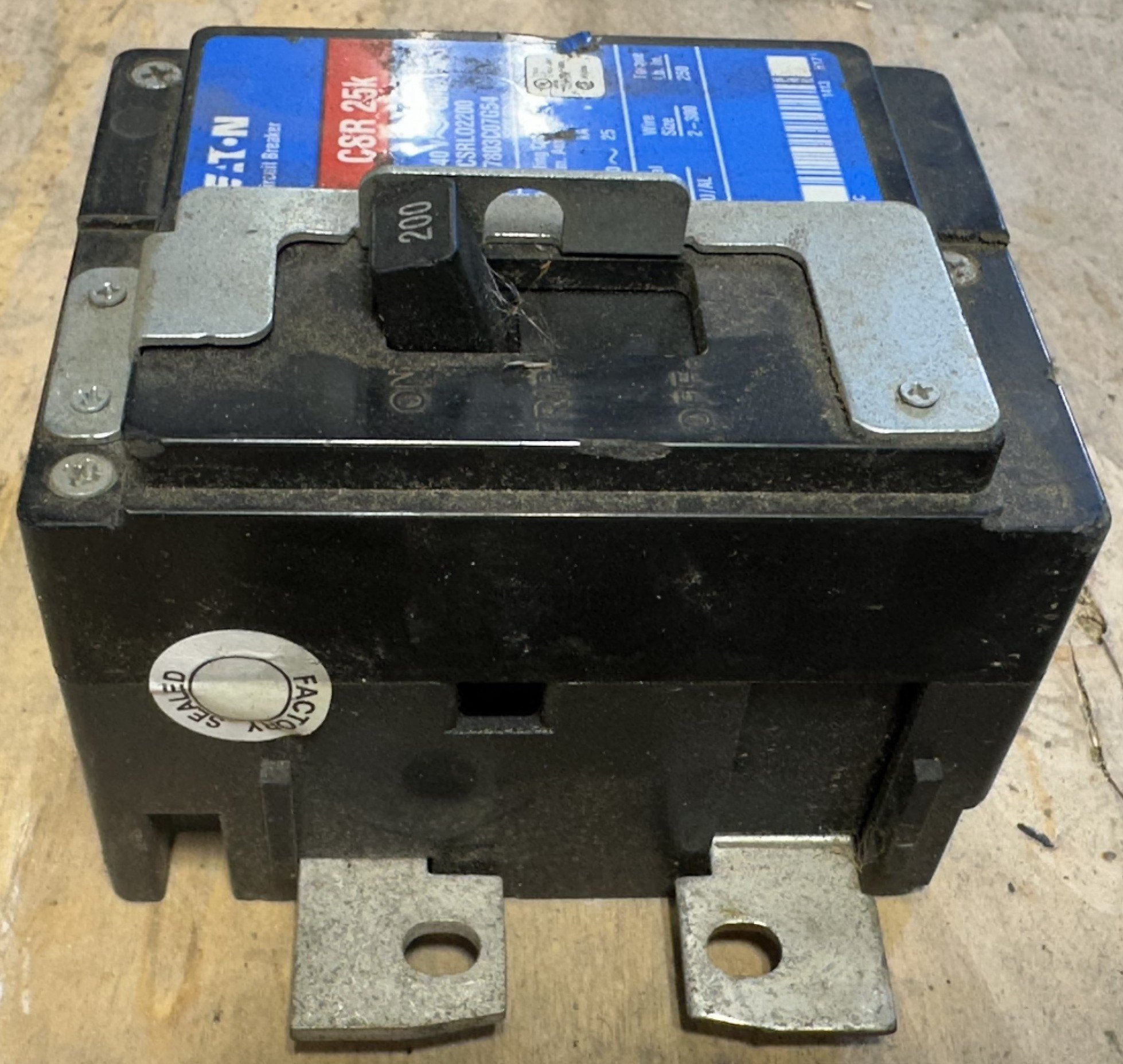

Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1617
