General Electric Type TFJ TFJ236175 Molded Case Circuit Breaker
175A (225A Frame) – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip 800–1750A – Lugs Installed

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

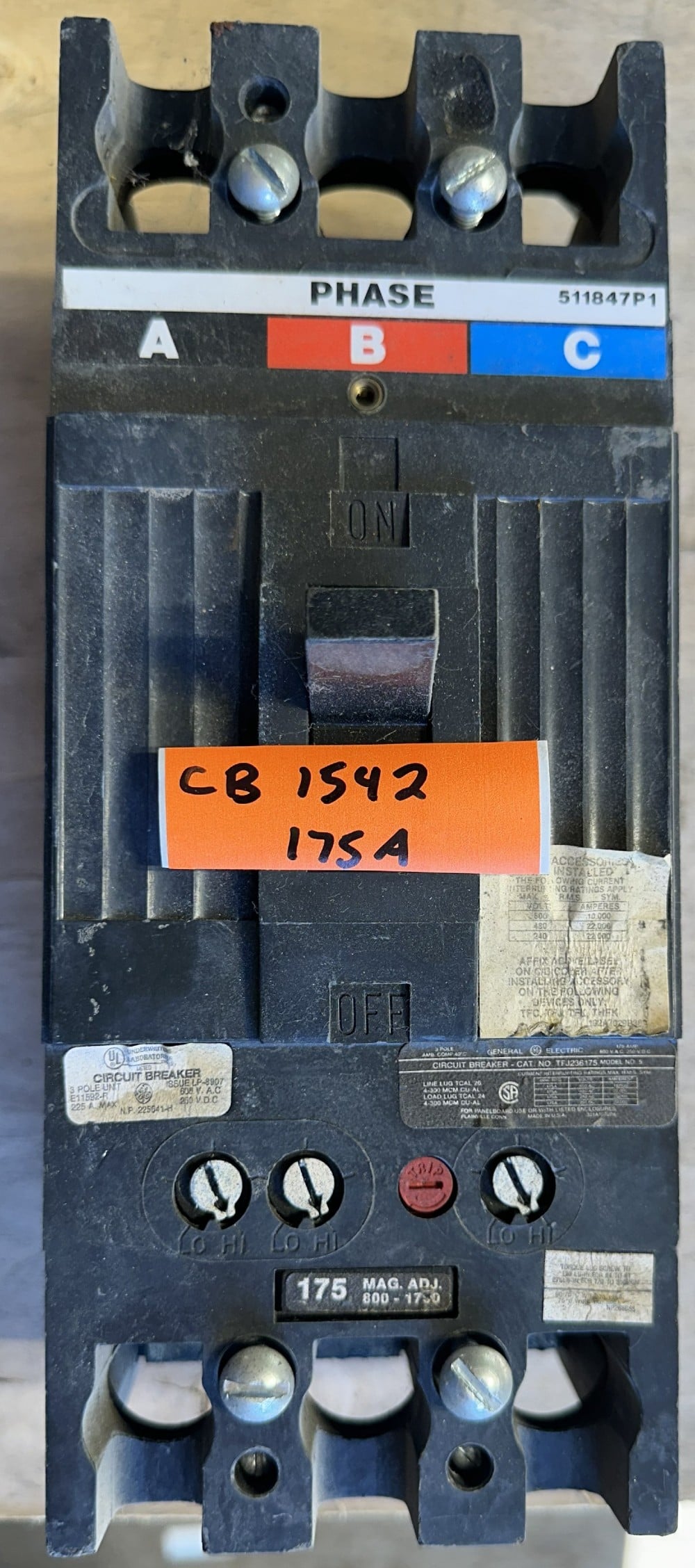

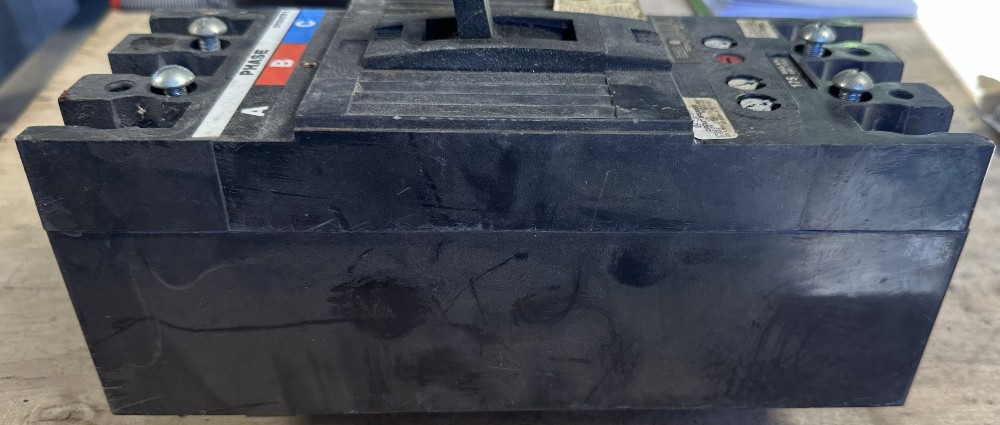

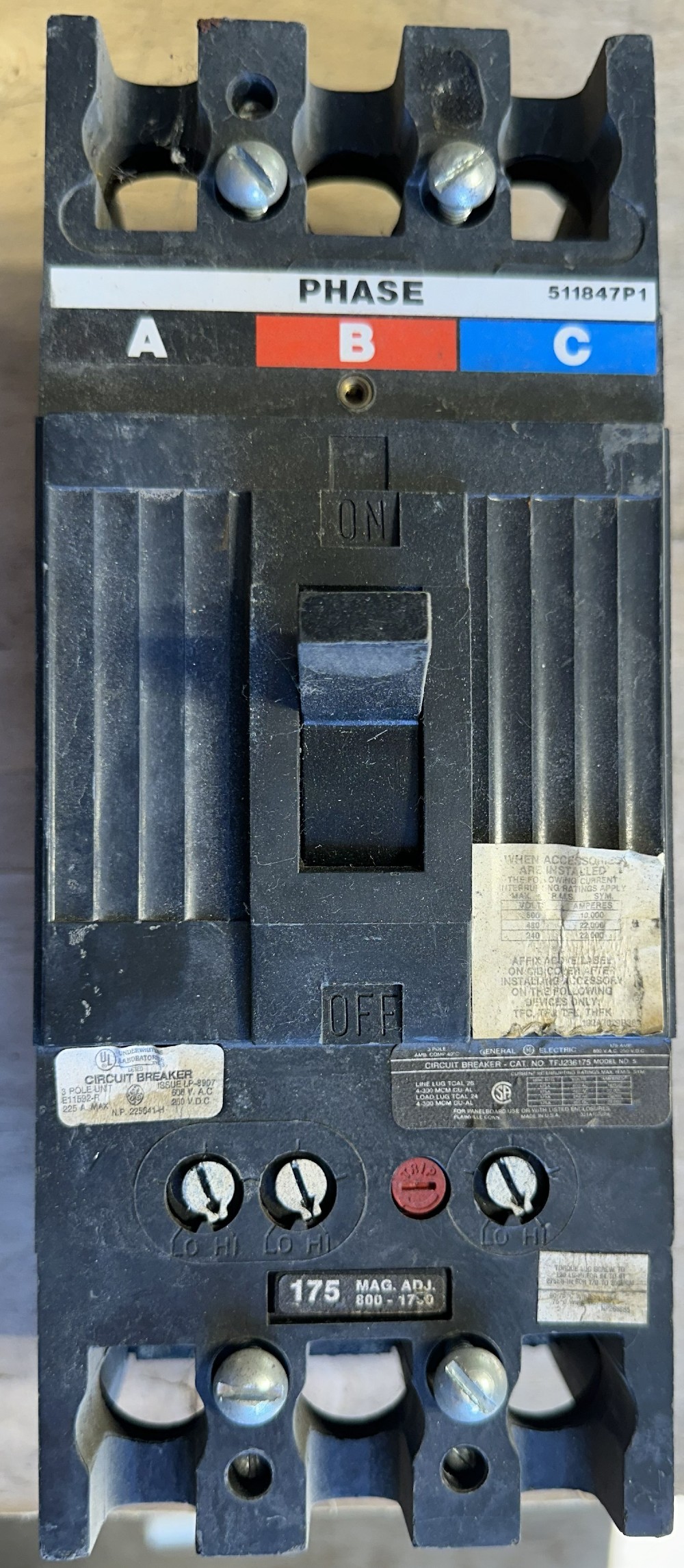

General Electric (Plainville, CT, Made in U.S.A.) Type TFJ thermal-magnetic molded case circuit breaker, catalog TFJ236175, Model 5. Rated 175A at 40°C in a 225A maximum frame, 3-pole, 600V AC / 250V DC. Magnetic trip adjustable from 800A to 1750A (LO–HI). Interrupting rating of 22,000A at 240V, 22,000A at 480V and 10,000A at 600V (RMS symmetrical, with accessories installed). Line lugs TCAL26 and load lugs TCAL24 installed, #4 to 300 MCM Cu/Al. Push-to-trip button and A-B-C phase label. UL listed and CSA certified.

SPECIFICATIONS

Manufacturer: General Electric, Plainville, Connecticut (Made in U.S.A.)
Series: Type TFJ, Model 5
Catalog #: TFJ236175
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 175A @ 40°C (225A maximum frame)
Magnetic Trip: Adjustable, 800–1750A (LO–HI)
Voltage: 600V AC / 250V DC
Interrupting Rating (with accessories installed): 22,000A @ 240V, 22,000A @ 480V, 10,000A @ 600V (RMS Sym.)
Lugs: Line TCAL26 / Load TCAL24 (installed), #4–300 MCM Cu/Al
Features: Push-to-trip button; phase label 511847P1
Approvals: UL Listed (Issue No. LP-8907; File E11592-R), CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1542
