Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | PHF2036 |
| Stock # | CB - 1546 |
Description

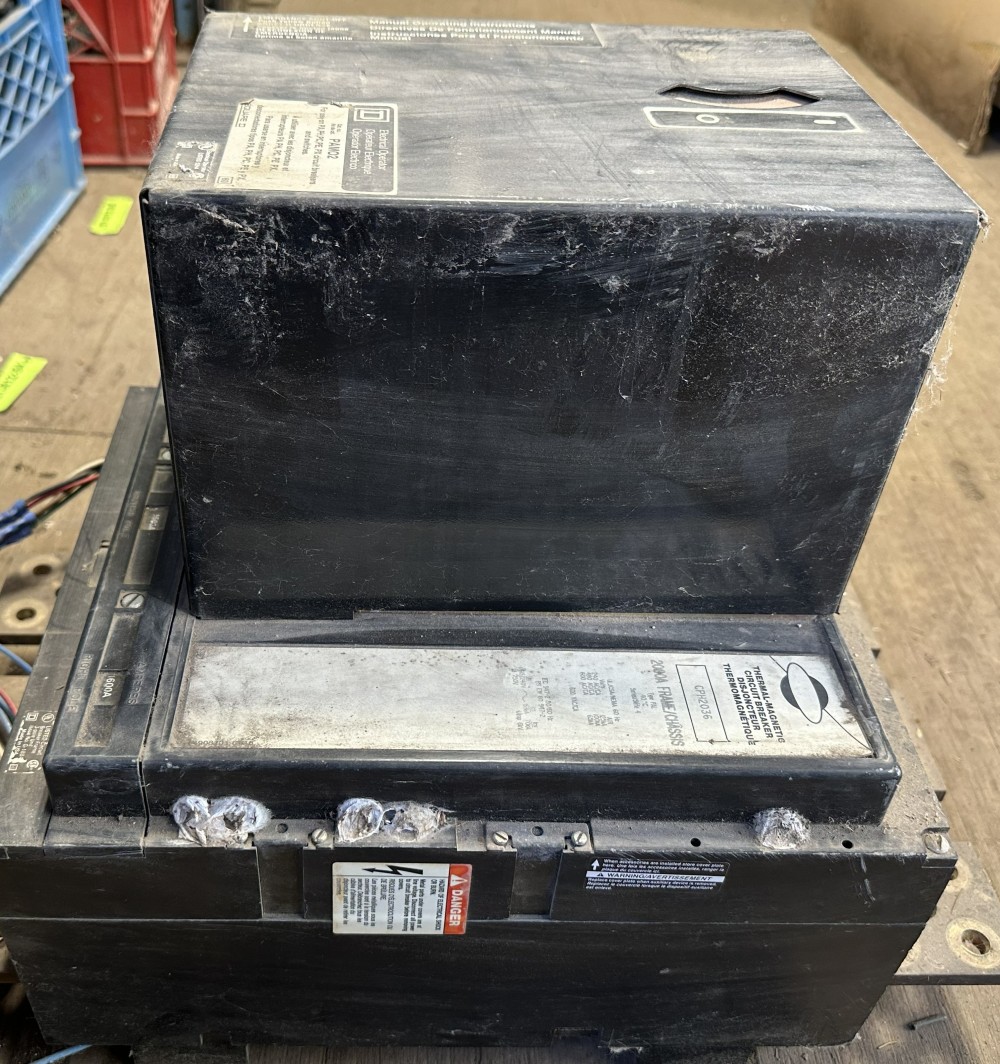

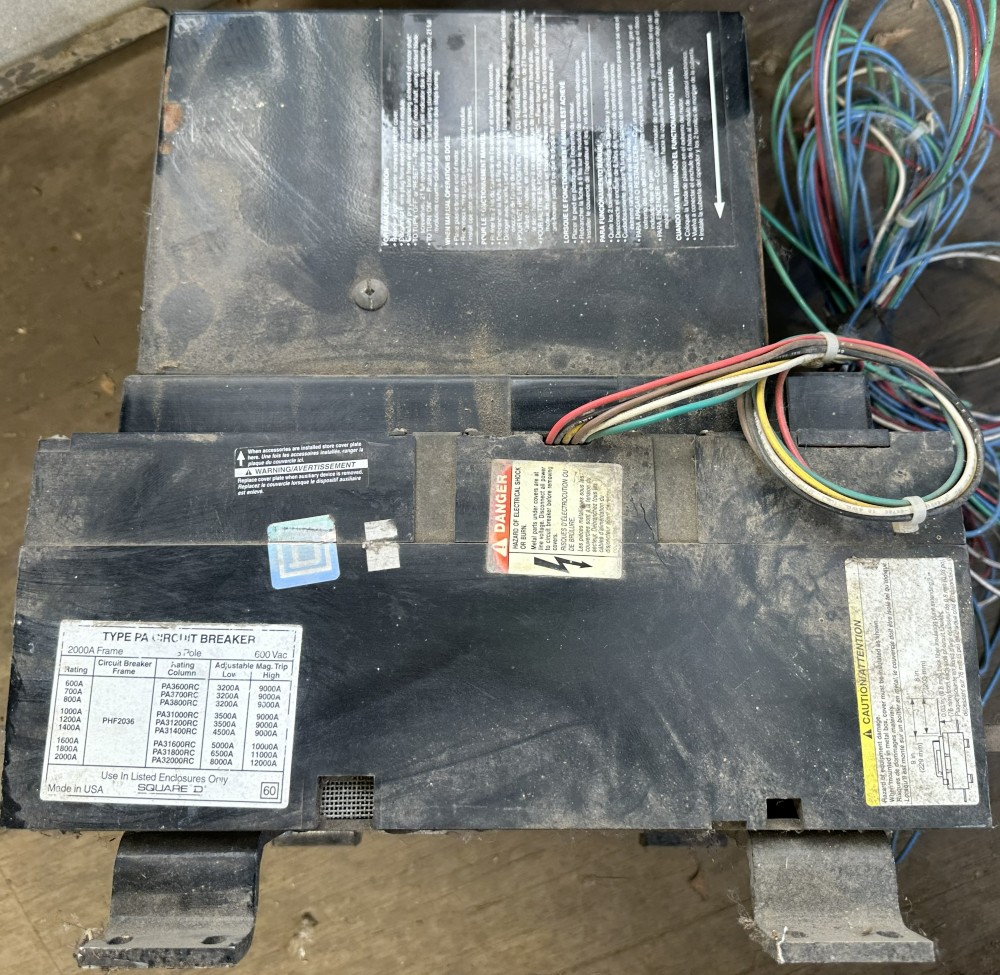

Square D Type PAL PHF2036 Molded Case Circuit Breaker with PAMO2 Electrical Operator
1600A in 2000A P-Frame – 3-Pole – 600V AC – Thermal-Magnetic – Adjustable Magnetic Trip (LO/HI) – 100kA @ 480V – Motor Operated
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D Type PAL (P-frame) Series 4 high-interrupting thermal-magnetic molded case circuit breaker, frame catalog PHF2036, 2000A frame, 3-pole, 600V AC. Fitted with PA31600RC rating columns for 1600A continuous, with LO/HI magnetic trip adjustment on the breaker face. Interrupting rating of 125kA at 240V, 100kA at 480V and 65kA at 600V (UL/CSA/NEMA, 60 Hz). Complete with Square D PAMO2 electrical (motor) operator, for use on PA, PH, PC, PE and PX breakers and switches.
SPECIFICATIONS
Manufacturer: Square D
Series: Type PAL (P-Frame), Series 4, High Interrupting
Frame Catalog #: PHF2036
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Frame Rating: 2000A

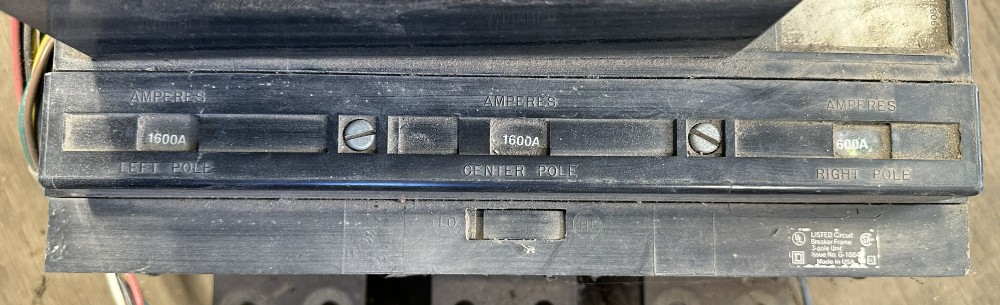

Current Rating: 1600A (rating columns PA31600RC)
Calibration: 40°C
Magnetic Trip: Adjustable, LO/HI on breaker face
Voltage: 600V AC

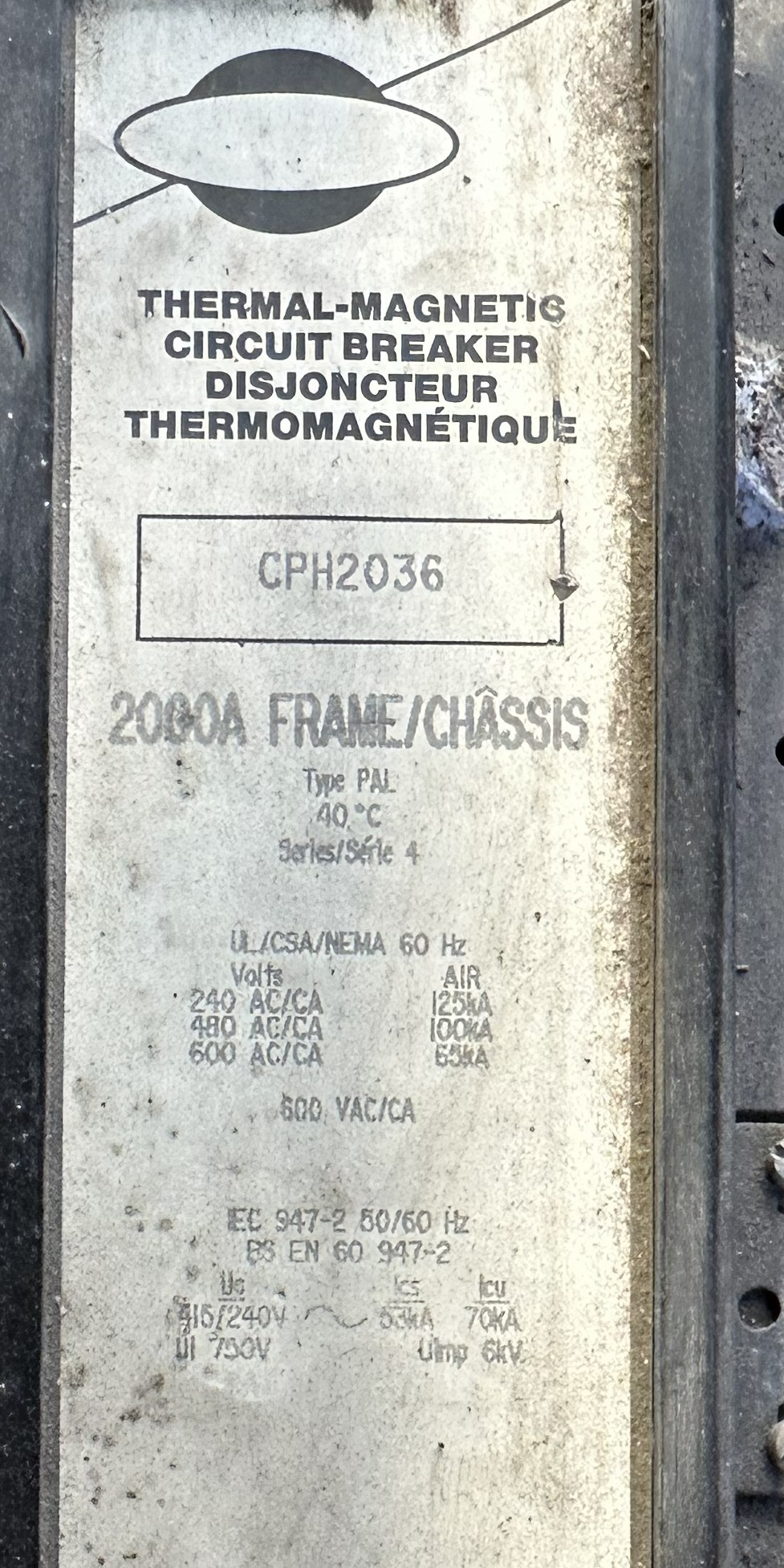

Interrupting Rating (UL/CSA/NEMA, 60 Hz): 125kA @ 240V, 100kA @ 480V, 65kA @ 600V

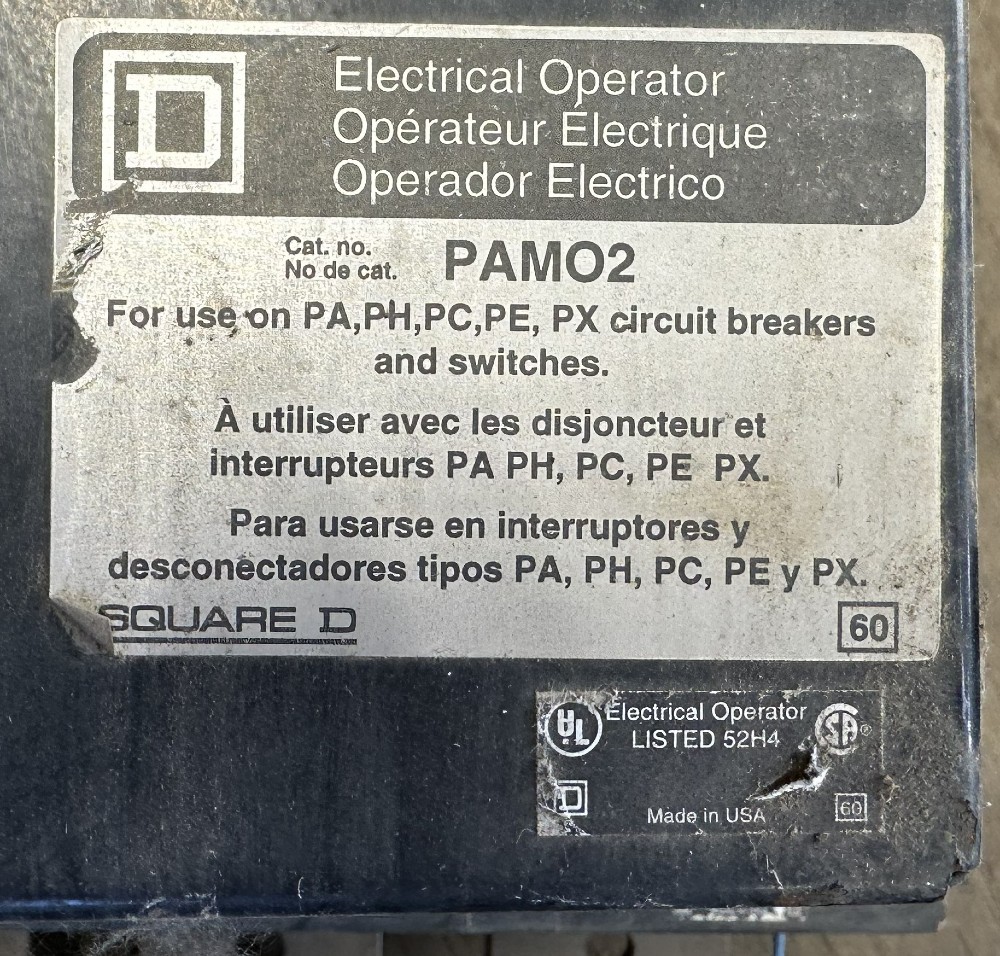

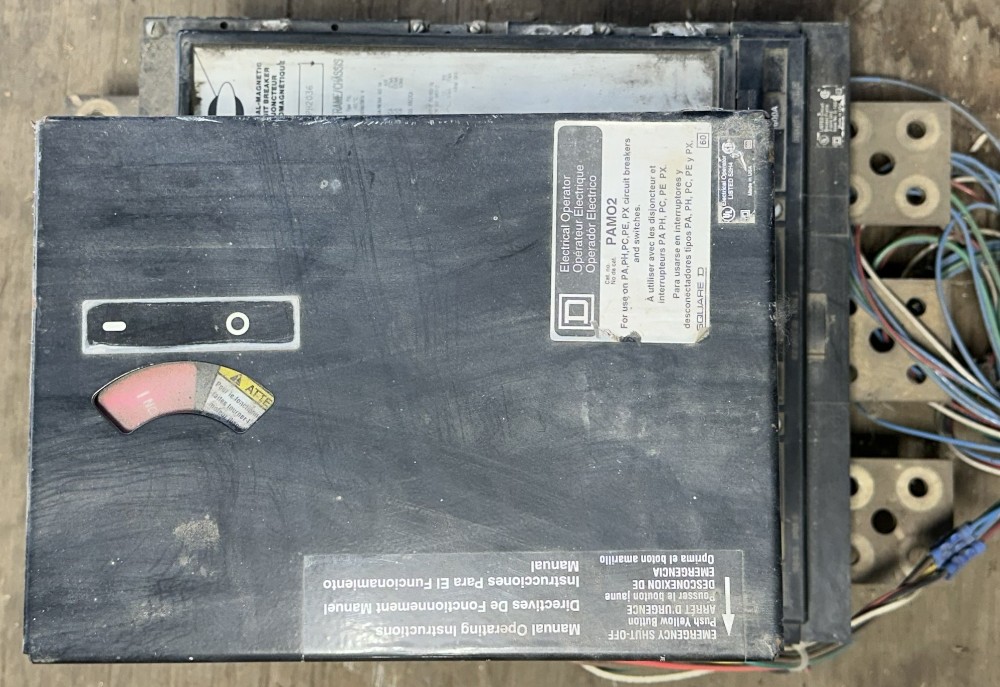

Accessory: Square D PAMO2 Electrical Operator (UL Listed 52H4), installed
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1546
