Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | TYPE FA PLUGIN |
| Stock # | CB - 1570 |
Description

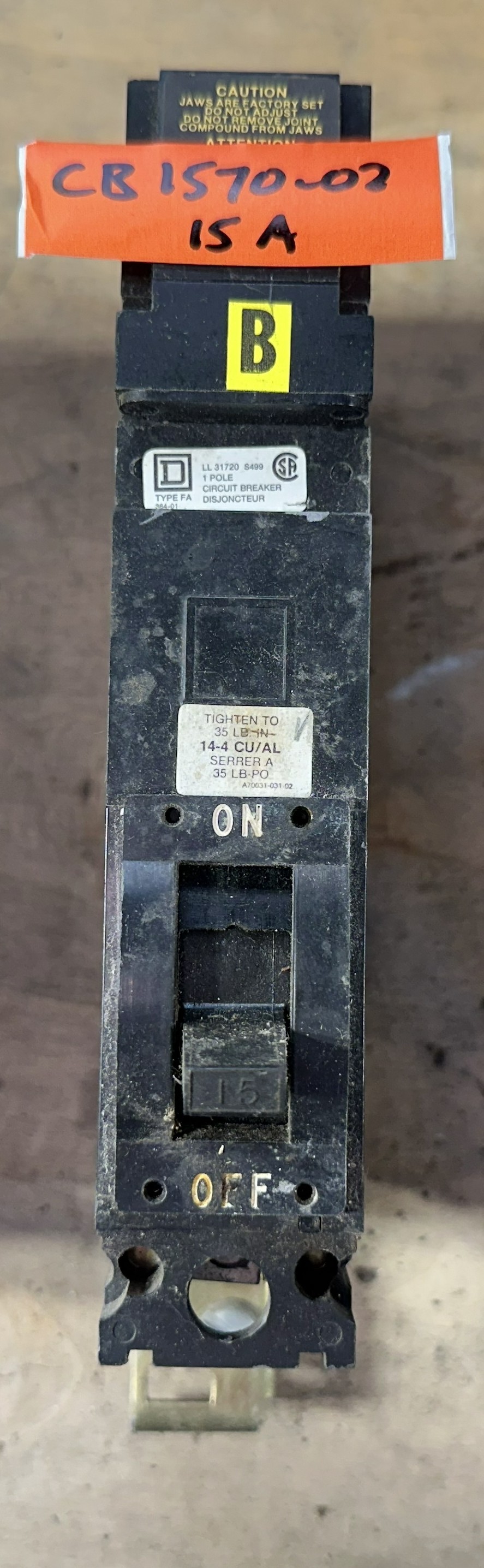

Square D Type FA Plug-In Molded Case Circuit Breaker
15A – 1-Pole – Thermal-Magnetic, Fixed Trip – 14kA @ 277V AC / 18kA @ 120V AC – 250V DC
>> Qty 3 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

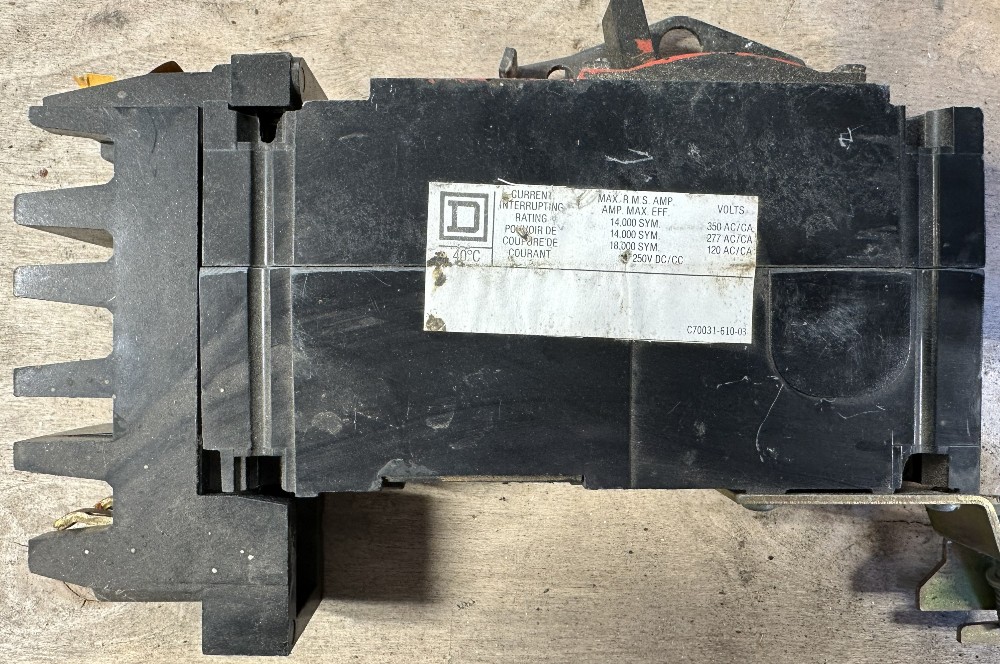

Square D Type FA thermal-magnetic molded case circuit breaker, rated 15A at 40°C, 1-pole, with fixed, non-adjustable trip. Interrupting rating of 14,000A at 350V AC, 14,000A at 277V AC and 18,000A at 120V AC; 250V DC rated. Plug-in jaws on line end (factory set), phase label B. Load terminal #14–4 AWG Cu/Al. Mounting bracket at load end. Three units available – priced each.
SPECIFICATIONS
Manufacturer: Square D
Series: Type FA
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 1
Current Rating: 15A @ 40°C
Trip Type: Fixed – non-adjustable
Interrupting Rating: 14,000A @ 350V AC, 14,000A @ 277V AC, 18,000A @ 120V AC; 250V DC
Line Connection: Plug-in jaws (factory set), phase label B
Load Terminal: #14–4 AWG Cu/Al, 35 lb-in
Accessories: Mounting bracket at load end
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1570
