Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | General Electric |
| Model | FBV16TE015RV |
| Stock # | CB - 1599 |
Description
General Electric FBV16TE015RV – Record Plus (Naval)
15A, 347 VAC, 1 Pole – Current-Limiting Thermal-Magnetic Molded Case Circuit Breaker
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

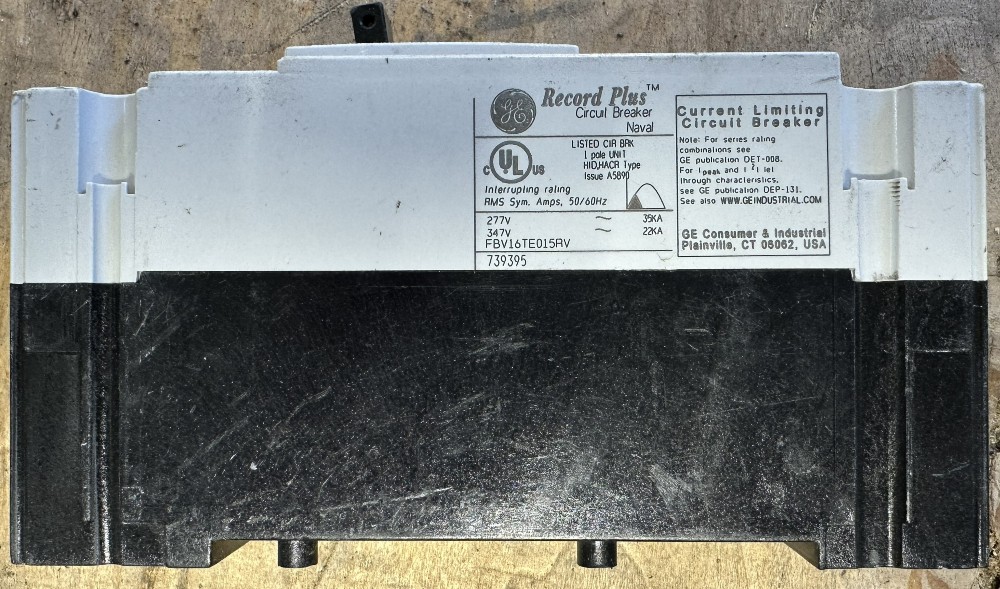

General Electric Record Plus single-pole current-limiting molded case circuit breaker (Naval), catalogue no. FBV16TE015RV. It is rated 15A, 347 VAC, with a non-adjustable thermal-magnetic trip and a push-to-trip button. Interrupting rating is 35kA at 277 VAC and 22kA at 347 VAC. It is HID and HACR rated, so it suits lighting and HVAC circuits. Comes with an FCAL12 Cu/Al lug kit. cULus listed.
Please note: The 347 VAC single-pole rating is intended for line-to-neutral circuits on 600Y/347V solidly grounded wye systems.
SPECIFICATIONS
Manufacturer: General Electric (GE Consumer & Industrial)
Catalogue No.: FBV16TE015RV
Series: Record Plus (Naval), FB frame
Amperage: 15A
Voltage: 347 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable; current limiting
Interrupting Rating (RMS sym., 50/60 Hz): 35kA @ 277 VAC; 22kA @ 347 VAC
Lugs: FCAL12 (Cu/Al, 60/75°C), #14 – #10 AWG, 35 lb-in

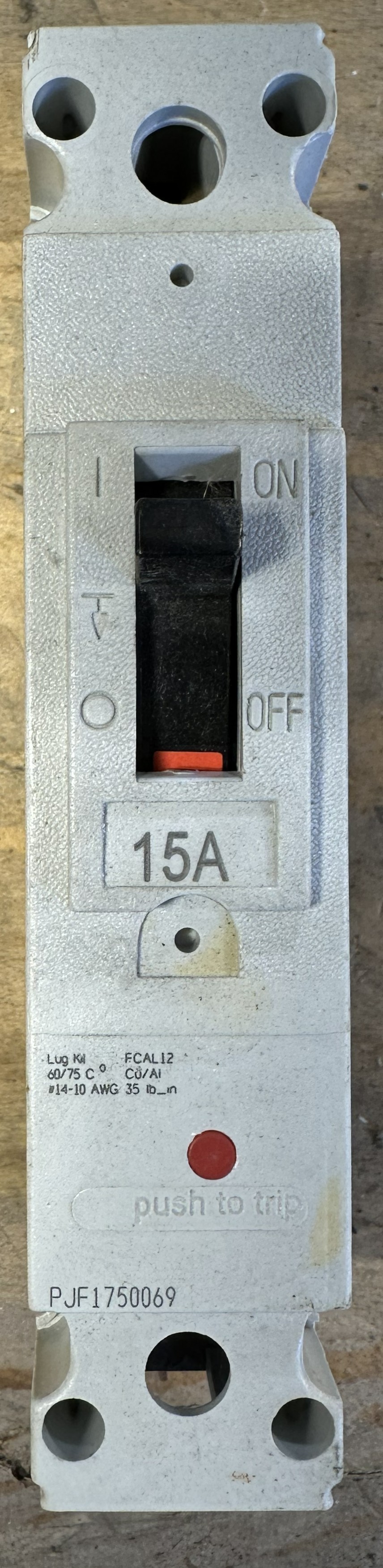

Features: Push-to-trip button; HID and HACR type
Series Ratings: Per GE publication DET-008; let-through characteristics per DEP-131
Approvals: cULus listed (issue A5890)
Serial No.: PJF1750069
Made in USA
CONDITION
Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1599
