Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | KA36150 |
| Stock # | CB - 1589 |
Description
Type KA I-Line Plug-In Molded Case Circuit Breaker – Probable Square D KA36150 – Chipped Housing, As-Is
150A – 3-Pole – Thermal-Magnetic – I-Line Plug-On
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

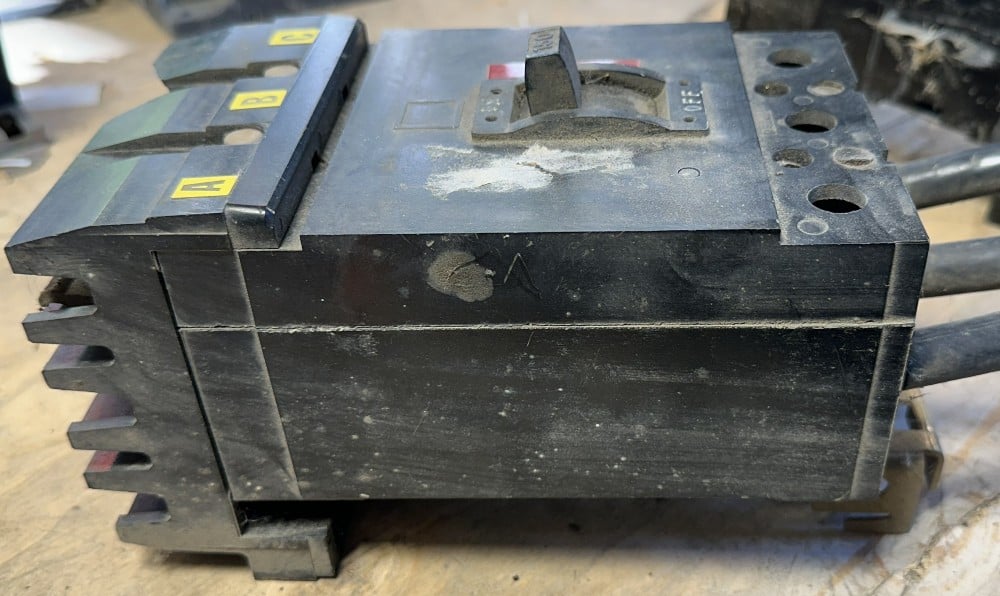

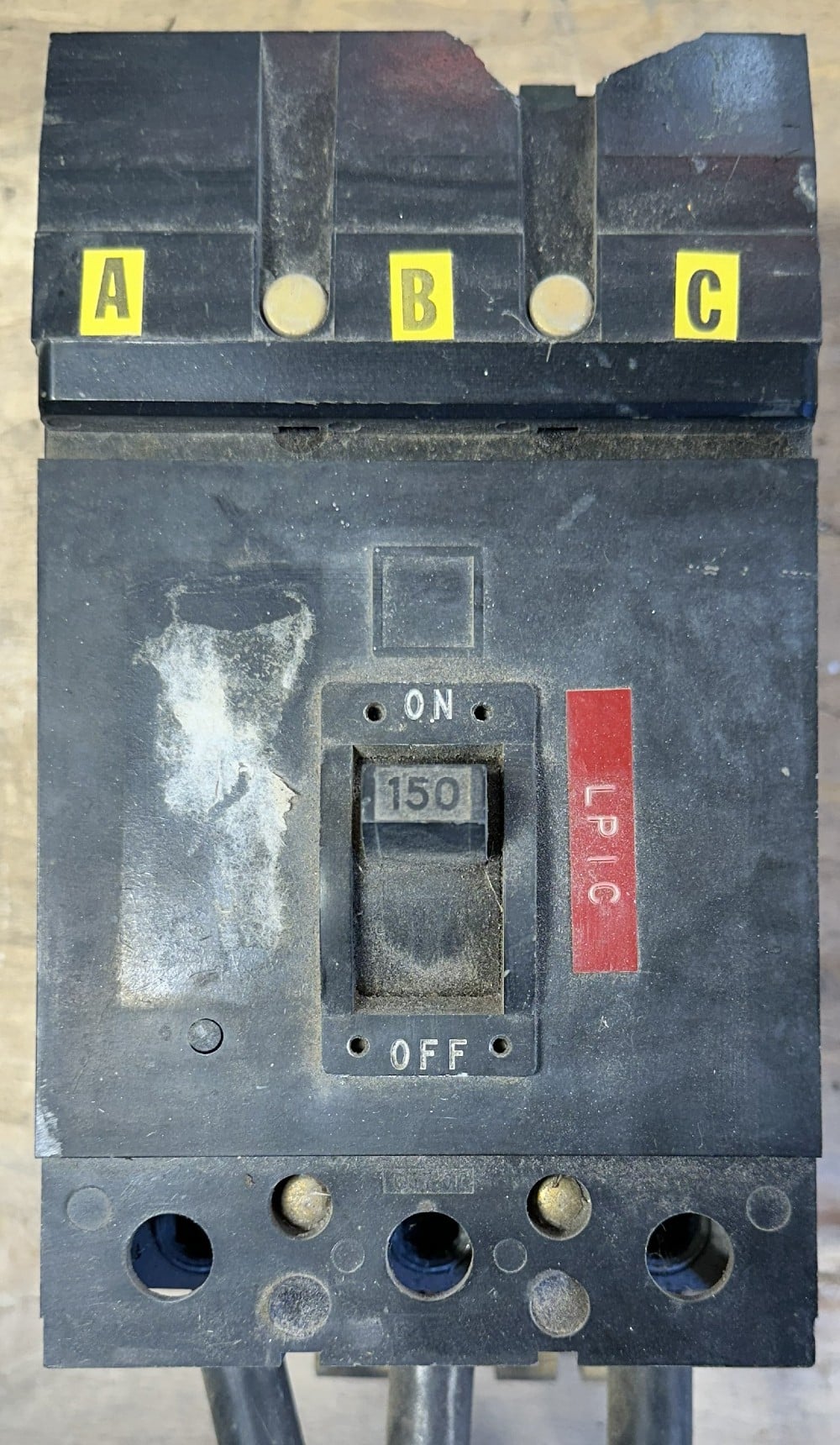

KA-frame thermal-magnetic molded case circuit breaker, probable Square D KA36150 by case style, 150A handle rating, 3-pole. I-Line plug-in jaws on line end with A-B-C phase labels. Mounting bracket at load end.
Please note: The line-end jaw housing is chipped between the B and C phases. The catalog / rating label has been removed from the cover – brand, catalog number, voltage and interrupting rating are not marked and are not confirmed. Cut cable tails are attached to the load side. Sold as-is; buyer to verify suitability before use.
SPECIFICATIONS
Manufacturer: Probable Square D (not marked)
Series: Probable Type KA
Catalog #: Not marked – probable KA36150
Type: Thermal-Magnetic Molded Case Circuit Breaker, I-Line plug-in
Poles: 3 (A-B-C)
Current Rating: 150A (handle marking)
Voltage / Interrupting Rating: Not visible
Line Connection: Plug-in jaws
Accessories: Mounting bracket at load end
CONDITION
Condition: Used – As-Is. Line-end jaw housing chipped (between B and C phases); rating label removed; cut cable tails attached; “LP1C” circuit label on cover.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1589
