Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | KAL36150 |
| Stock # | CB - 1547 |
Description

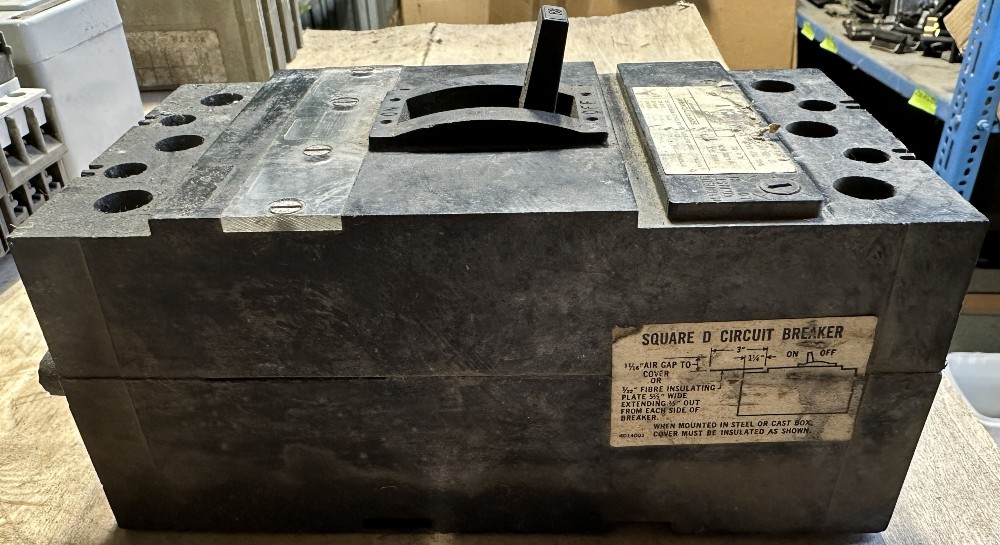

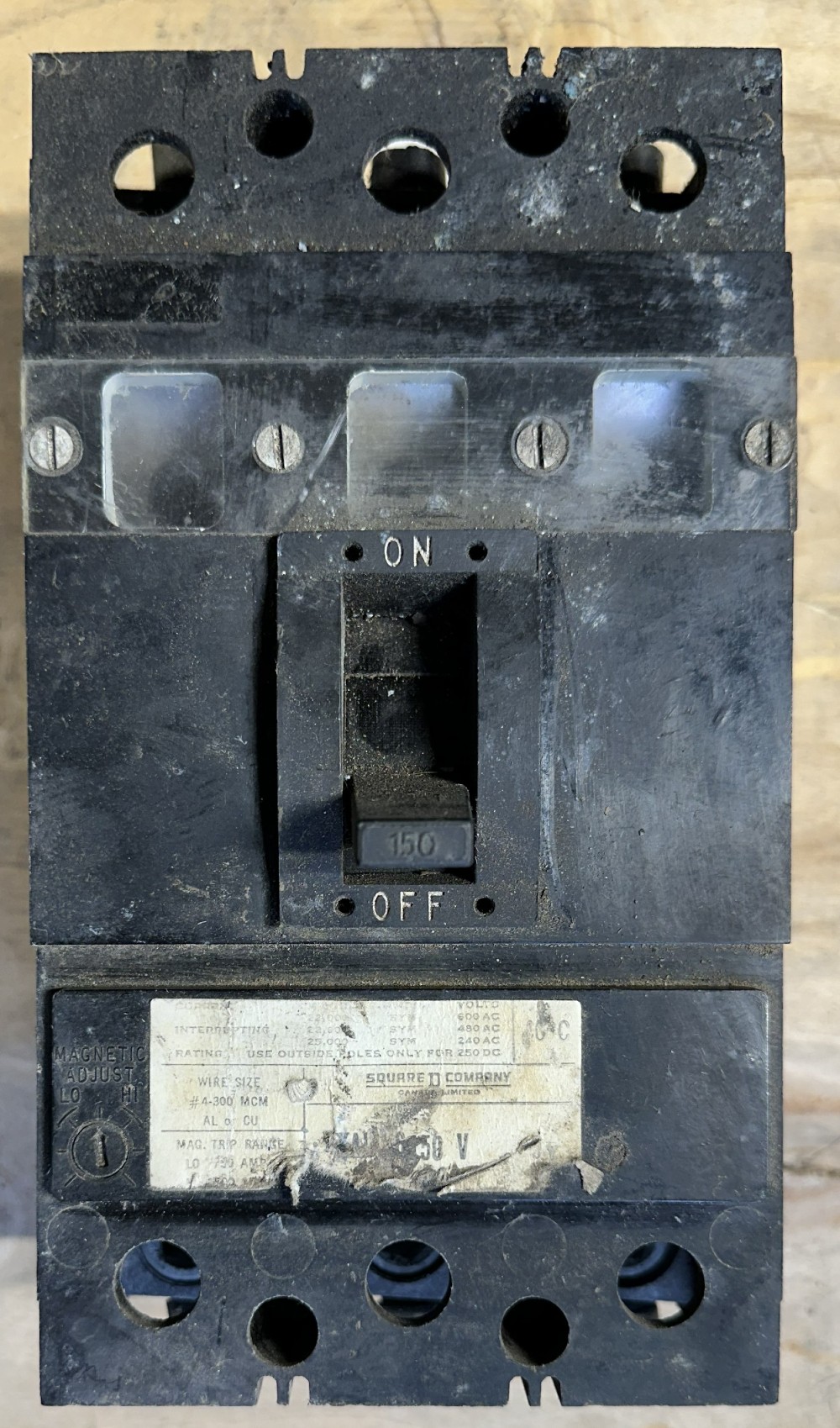

Square D Type KA KAL36150 Molded Case Circuit Breaker
150A (225A KA Frame) – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip 750–1500A – 22kA @ 480V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D Company Canada Limited Type KA thermal-magnetic molded case circuit breaker, catalog KAL36150, 225A KA frame. Rated 150A at 40°C, 3-pole, 600V AC / 250V DC (outside poles only for DC), with magnetic trip adjustable from 750A to 1500A (LO–HI). Interrupting rating of 25,000A at 240V, 22,000A at 480V and 22,000A at 600V (RMS symmetrical). Wire range #4–300 MCM Al or Cu. Line-side terminal shield fitted.
SPECIFICATIONS
Manufacturer: Square D Company Canada Limited
Series: Type KA (225A Frame)

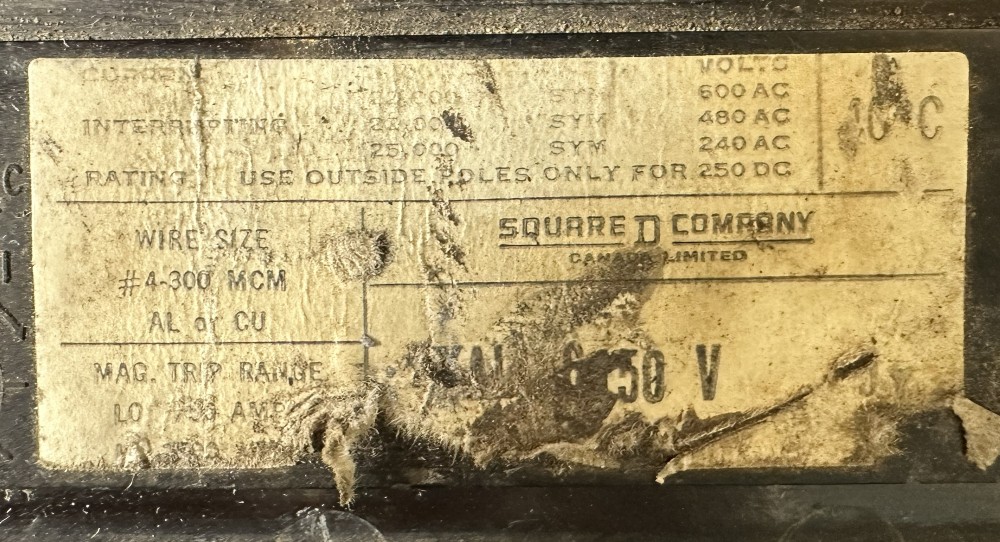

Catalog #: KAL36150 (label partly damaged)
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 150A @ 40°C
Magnetic Trip: Adjustable, 750–1500A (LO–HI)
Voltage: 600V AC / 250V DC (outside poles only for DC)
Interrupting Rating: 25,000A @ 240V AC, 22,000A @ 480V AC, 22,000A @ 600V AC (RMS Sym.)
Wire Size: #4–300 MCM, Al or Cu
Accessory: Line-side terminal shield
CONDITION
Condition: Used – As-Is. Catalog label partly damaged.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1547
