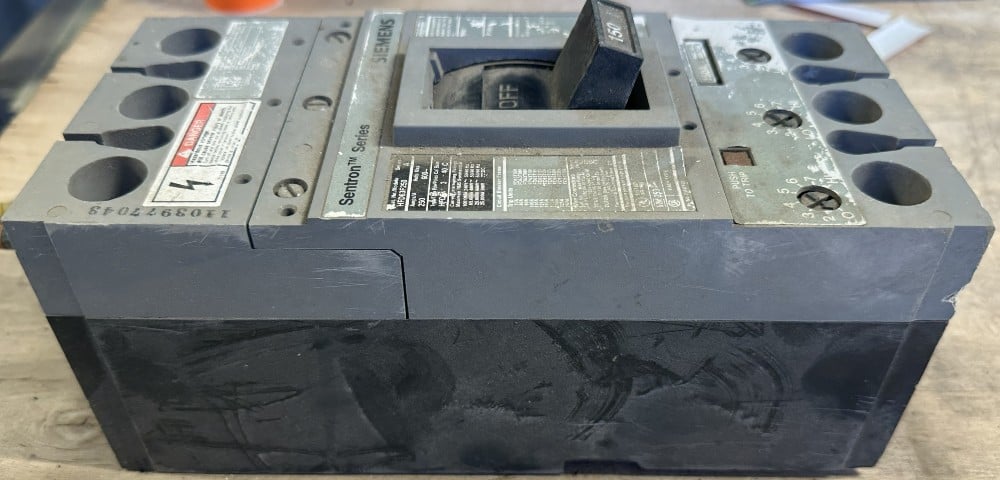

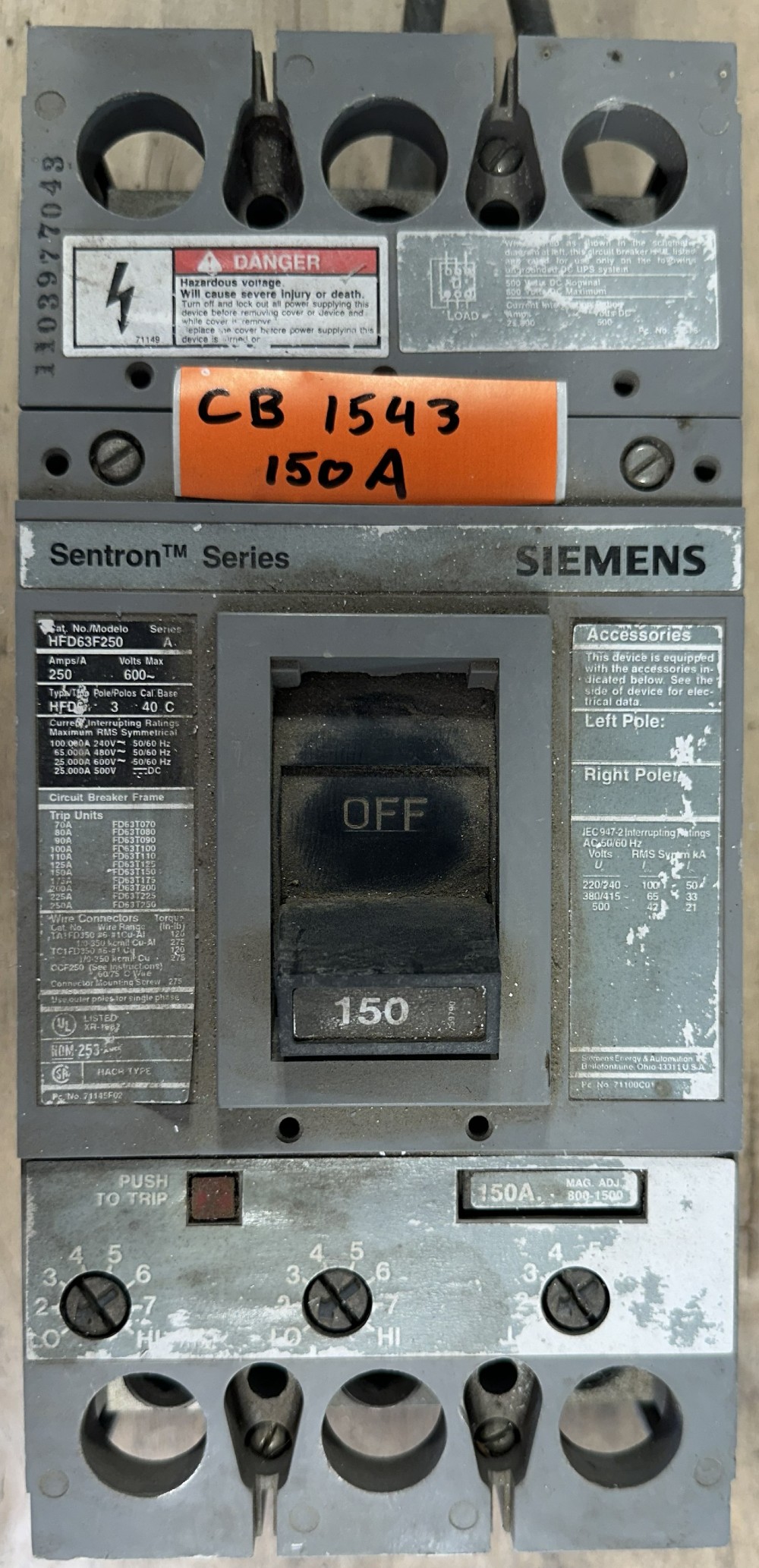

Siemens Sentron HFD63F250 Molded Case Circuit Breaker with FD63T150 Trip Unit
150A Trip Unit in 250A HFD6 Frame – 3-Pole – 600V AC / 500V DC – Adjustable Magnetic Trip 800–1500A – 65kA @ 480V – HACR

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Siemens Sentron Series Type HFD6 high-interrupting molded case circuit breaker, frame catalog HFD63F250 (250A frame), Series A, 3-pole, 600V AC / 500V DC. Fitted with an FD63T150 interchangeable thermal-magnetic trip unit rated 150A at 40°C, with magnetic trip adjustable from 800A to 1500A (LO–HI). Interrupting rating of 100kA at 240V, 65kA at 480V, 25kA at 600V and 25kA at 500V DC. Push-to-trip button. HACR rated. UL Listed, CSA and NOM certified. Lugs not installed.

SPECIFICATIONS

Manufacturer: Siemens Energy & Automation (Bellefontaine, Ohio, U.S.A.)
Series: Sentron, Type HFD6, Series A
Frame Catalog #: HFD63F250 (250A frame)
Trip Unit: FD63T150, 150A @ 40°C, interchangeable thermal-magnetic
Type: Molded Case Circuit Breaker, interchangeable trip unit
Poles: 3
Magnetic Trip: Adjustable, 800–1500A (LO–HI)
Voltage: 600V AC / 500V DC
Interrupting Rating: 100,000A @ 240V AC, 65,000A @ 480V AC, 25,000A @ 600V AC, 25,000A @ 500V DC
Lugs: Not installed – rated for TA1FD350 (#6–350 kcmil Cu/Al)
Features: Push-to-trip button
Ratings: HACR Type
Approvals: UL Listed, CSA, NOM

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1543
