Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Stock # | CB - 1607 |
Description

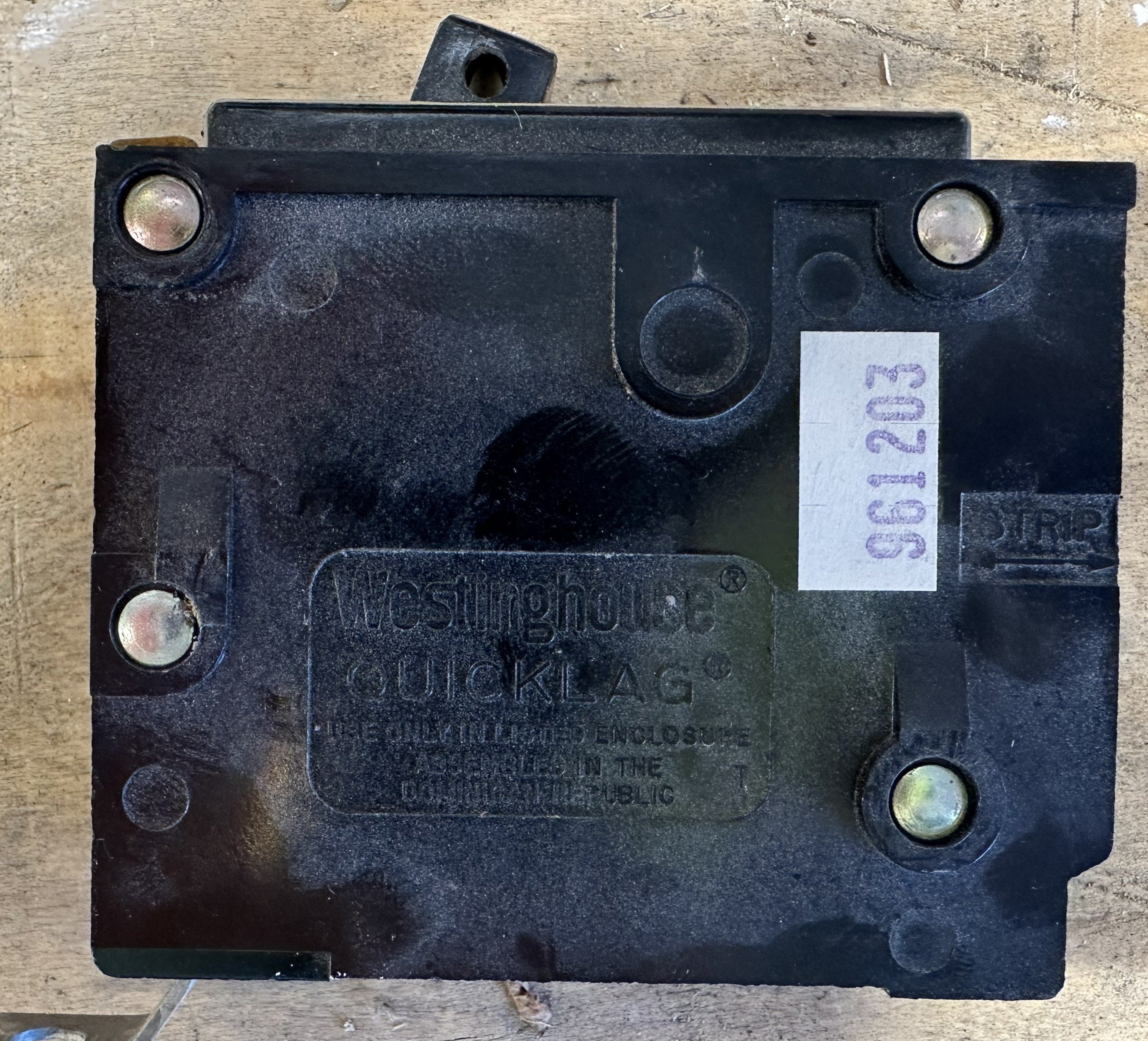

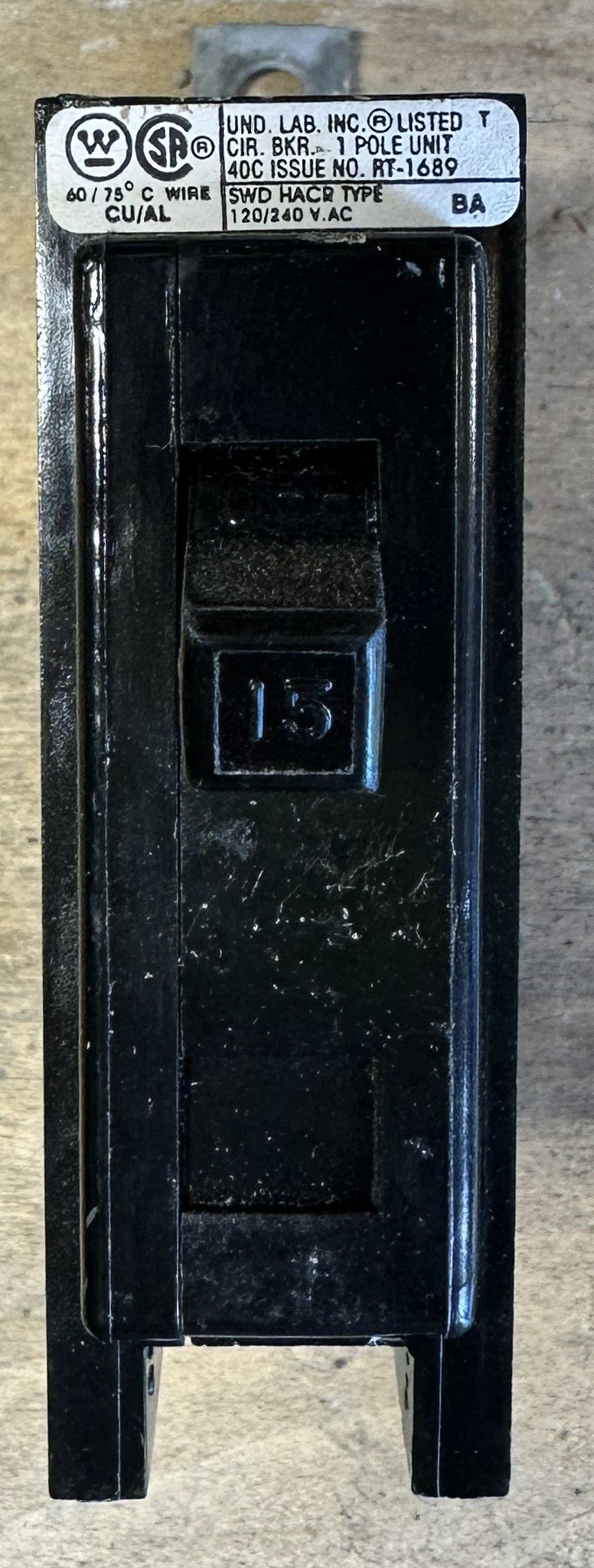

Westinghouse Quicklag Type BA Circuit Breaker
15A, 120/240 VAC, 1 Pole, SWD / HACR – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 156 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Westinghouse Quicklag Type BA single-pole circuit breakers. Each is rated 15A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration). Interrupting rating is 10kA RMS symmetrical at 120/240 VAC. They are SWD (switching duty) and HACR rated, with Cu/Al terminals suitable for 60/75°C wire. UL listed and CSA certified. We have 156 in stock, and quantity pricing is available on request for multiple units or the full lot.
SPECIFICATIONS
Manufacturer: Westinghouse
Series / Type: Quicklag, Type BA
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 VAC
Terminals: Cu/Al, 60/75°C wire

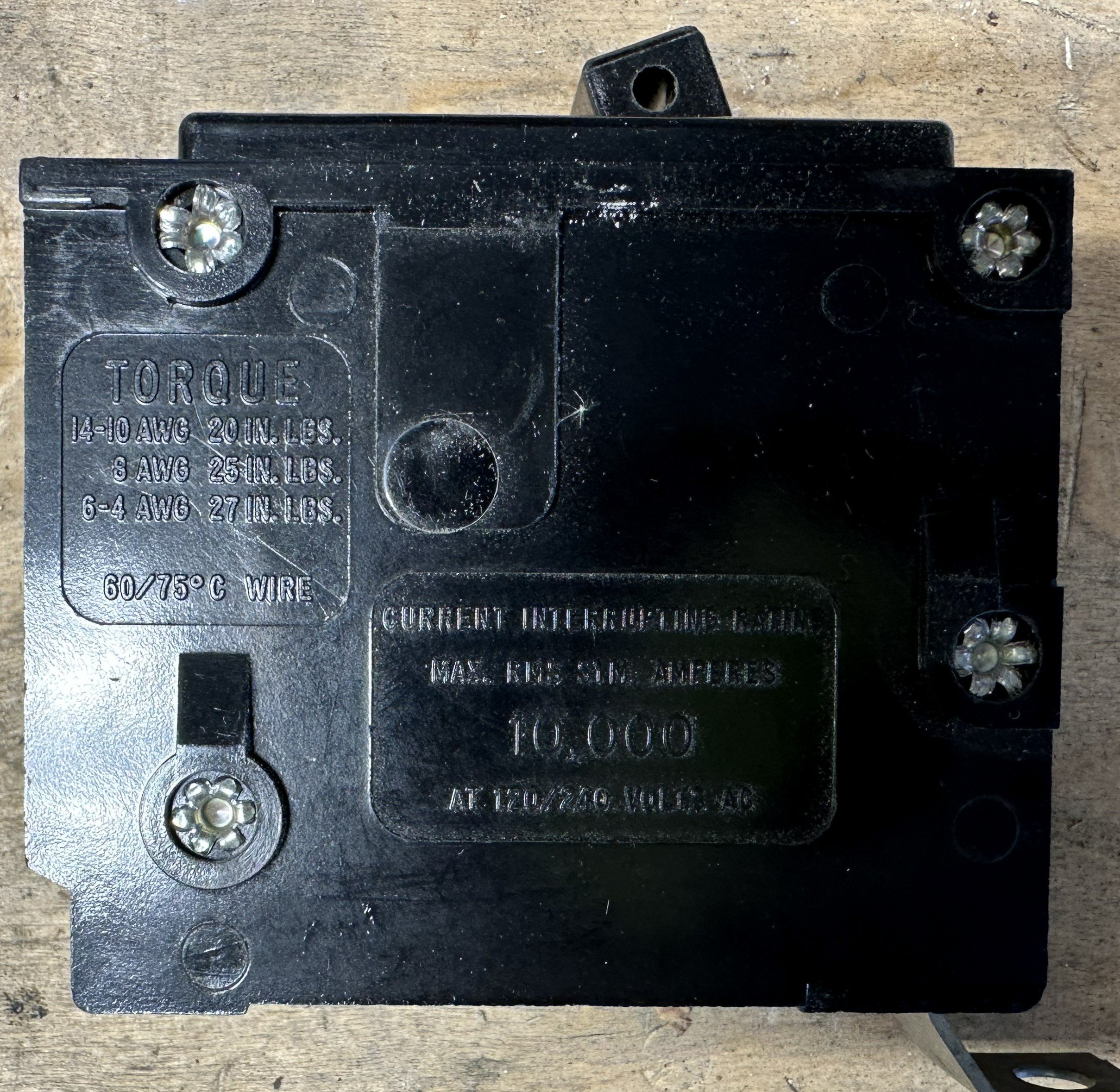

Lug Torque: 14–10 AWG 20 in-lb; 8 AWG 25 in-lb; 6–4 AWG 27 in-lb
Features: SWD and HACR type
Approvals: UL listed (Issue No. RT-1689 / RT-1690), CSA
Assembled in the Dominican Republic
CONDITION
Used – As-Is. Removed from service. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel); full lot ships on pallet (LTL)
Stock #: CB-1607
