Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | HFB2015 |
| Stock # | CB - 1513 |
Description

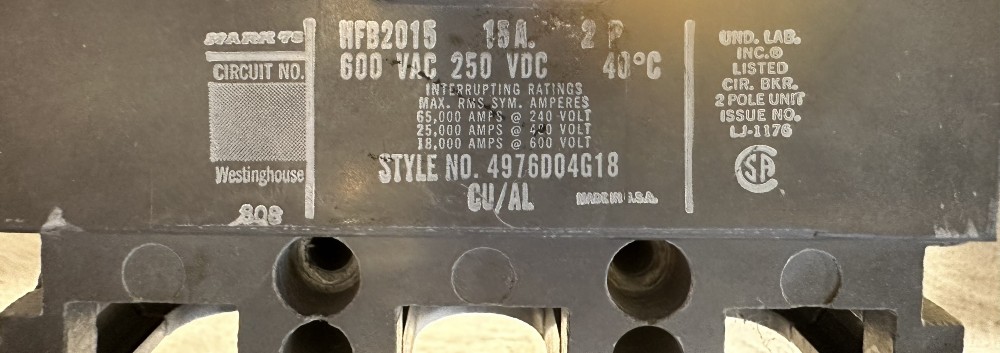

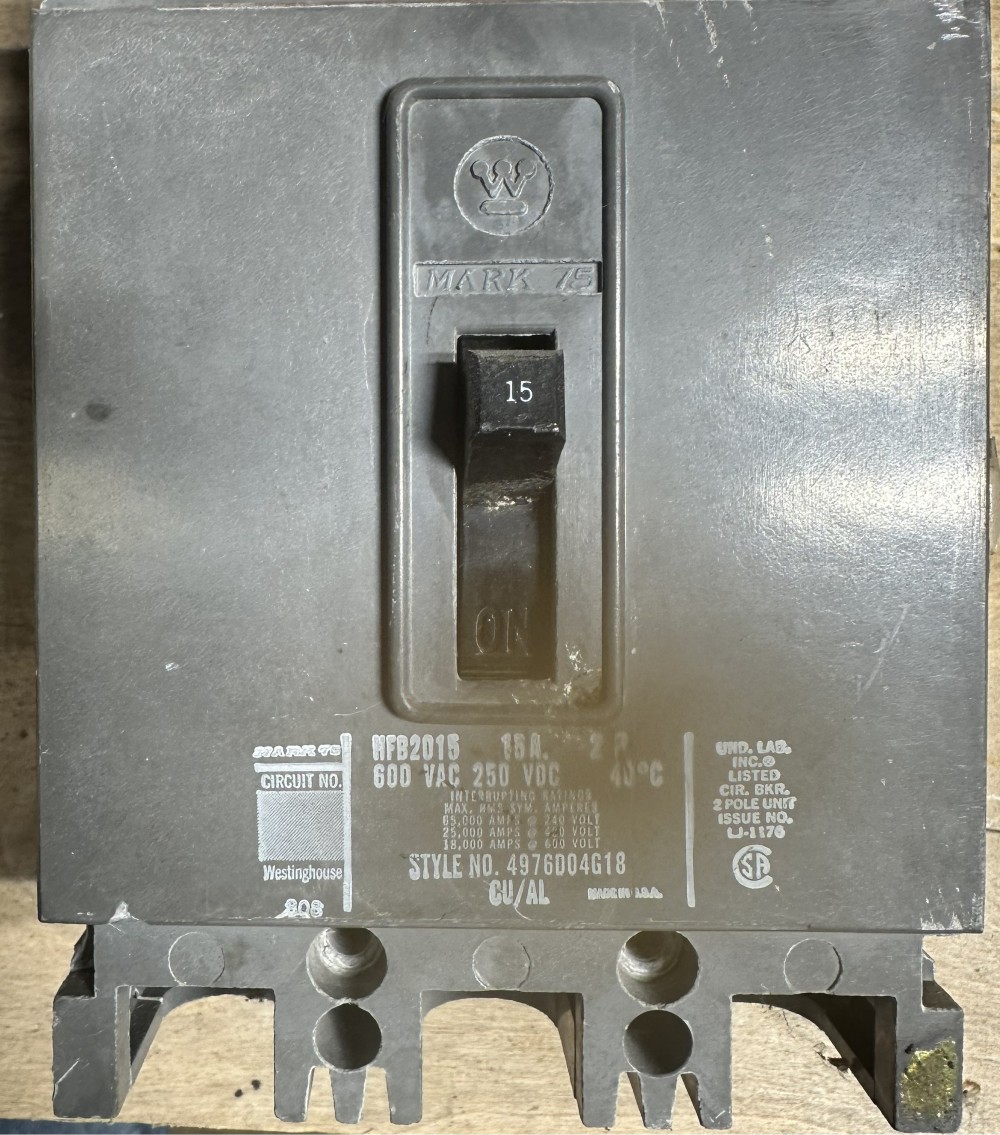

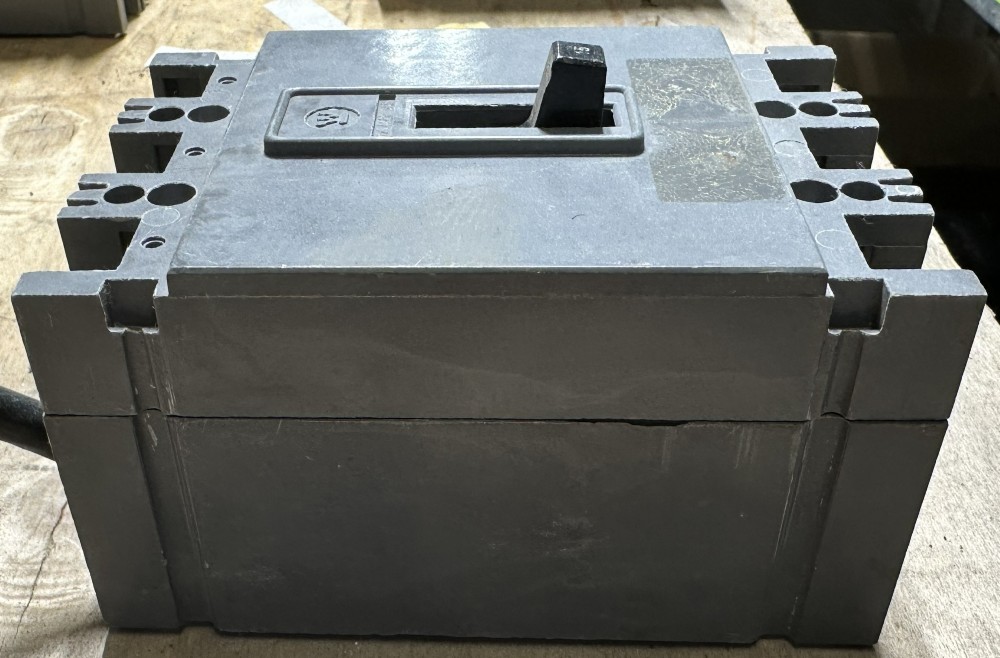

Westinghouse Mark 75 HFB2015 Molded Case Circuit Breaker
15A – 2-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 65kA @ 240V / 25kA @ 480V / 18kA @ 600V
>> Qty 3 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Westinghouse Mark 75 HFB thermal-magnetic molded case circuit breaker, catalog HFB2015, rated 15A, 2-pole, 600V AC / 250V DC with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 25,000A at 480V and 18,000A at 600V. Calibrated at 40°C, Cu/Al wire rated. Two-pole breaker built in the standard three-pole HFB frame (centre pole not used). Made in U.S.A. Three units available – priced each.
SPECIFICATIONS
Manufacturer: Westinghouse
Series: Mark 75 HFB
Catalog #: HFB2015
Style #: 4976D04G18
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 2 (in 3-pole frame, centre pole not used)
Current Rating: 15A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC
Interrupting Rating: 65,000A @ 240V, 25,000A @ 480V, 18,000A @ 600V
Calibration: 40°C
Wire Rating: Cu/Al
Origin: Made in U.S.A.
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1513
