Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | FB3015 |
| Stock # | CB - 1536 |
Description

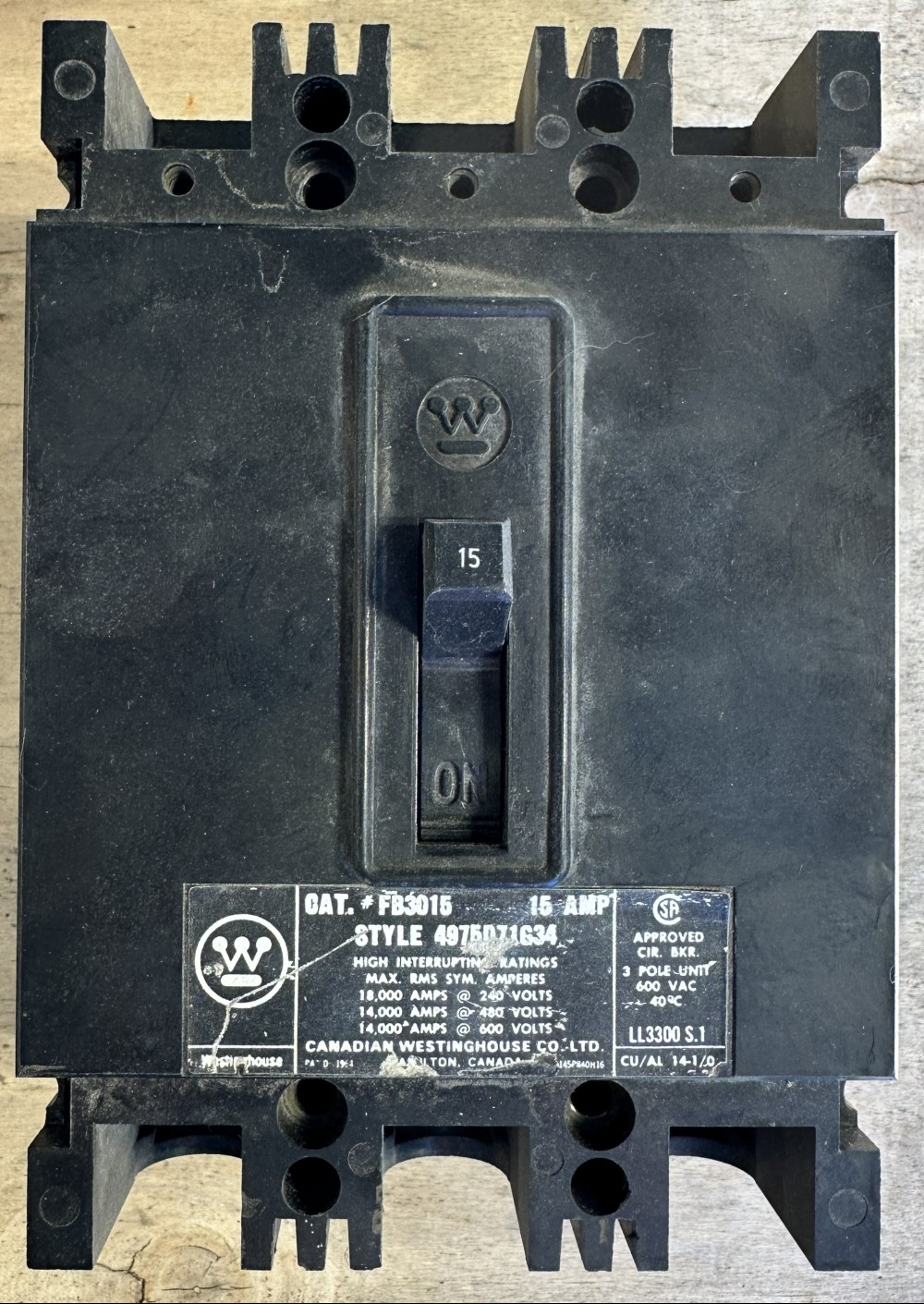

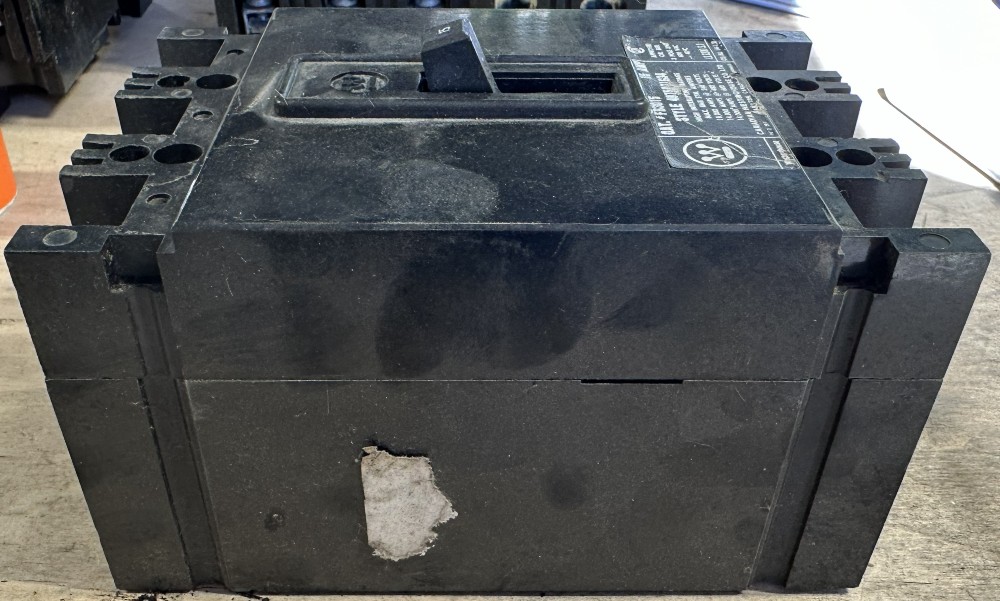

Westinghouse AB De-ion Type FB FB3015 Molded Case Circuit Breaker
15A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 18kA @ 240V / 14kA @ 480V / 14kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Canadian Westinghouse (Hamilton, Canada) AB De-ion Type FB thermal-magnetic molded case circuit breaker, catalog FB3015, Style No. 4975D71G34. Rated 15A at 40°C, 3-pole, 600V AC, with fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V (RMS symmetrical). Cu/Al terminals, #14 to 1/0 AWG. CSA approved.
SPECIFICATIONS
Manufacturer: Westinghouse (Canadian Westinghouse Co. Ltd., Hamilton, Canada)
Series: AB De-ion, Type FB
Catalog #: FB3015
Style #: 4975D71G34
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 15A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 18,000A @ 240V, 14,000A @ 480V, 14,000A @ 600V (RMS Sym.)
Terminals: Cu/Al, #14–1/0 AWG
Approvals: CSA Approved
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1536
