15 Amps, Square D QOB115 (Equivalent) Type QOB Bolt-On Circuit Breaker, 1-Pole, 120/240 VAC, Visi-Trip – Qty 18

Details

Description

Square D Type QOB Bolt-On Circuit Breaker – QOB115 Equivalent
15A, 120/240 VAC, 1 Pole, SWD / HACR – Thermal-Magnetic with Visi-Trip

>> Qty 18 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

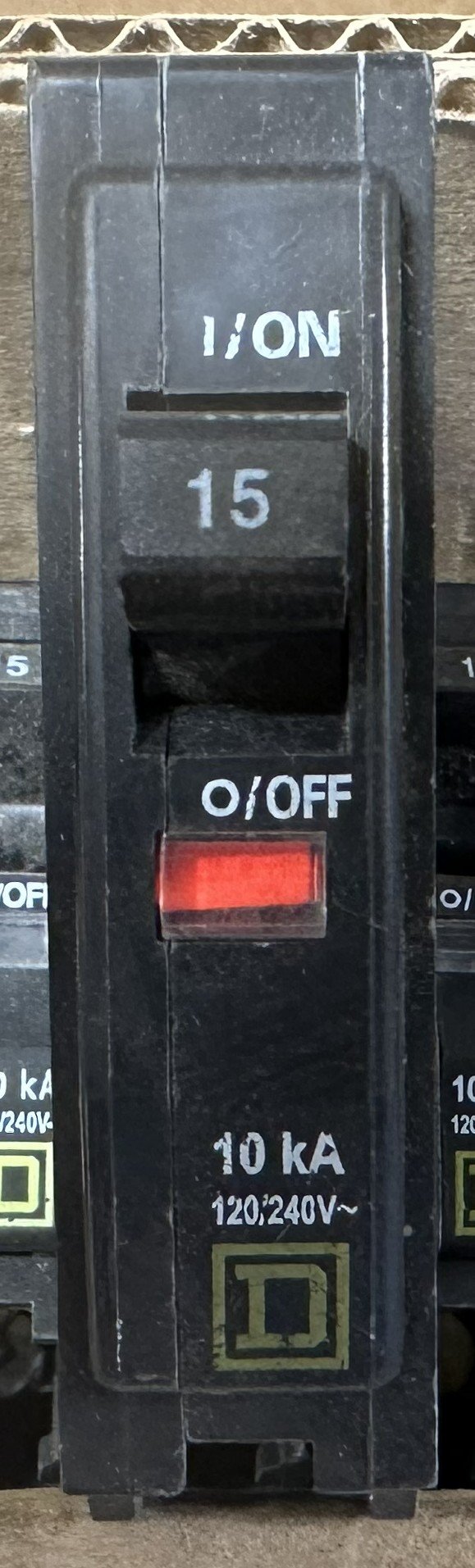

Square D Type QOB bolt-on single-pole circuit breakers. Each is rated 15A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration) and a Visi-Trip indicator. Interrupting rating is 10kA at 120/240 VAC, 50/60 Hz. They are SWD (switching duty) and HACR rated. UL listed, CSA certified and NOM/ANCE marked. The catalogue number is not printed on the units, but the ratings correspond to Square D QOB115. We have 18 in stock, and quantity pricing is available on request.

SPECIFICATIONS
Manufacturer: Square D
Series / Type: QOB (bolt-on)
Catalogue No.: Not marked; corresponds to QOB115
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration; Visi-Trip indicator
Interrupting Rating: 10kA @ 120/240 VAC, 50/60 Hz

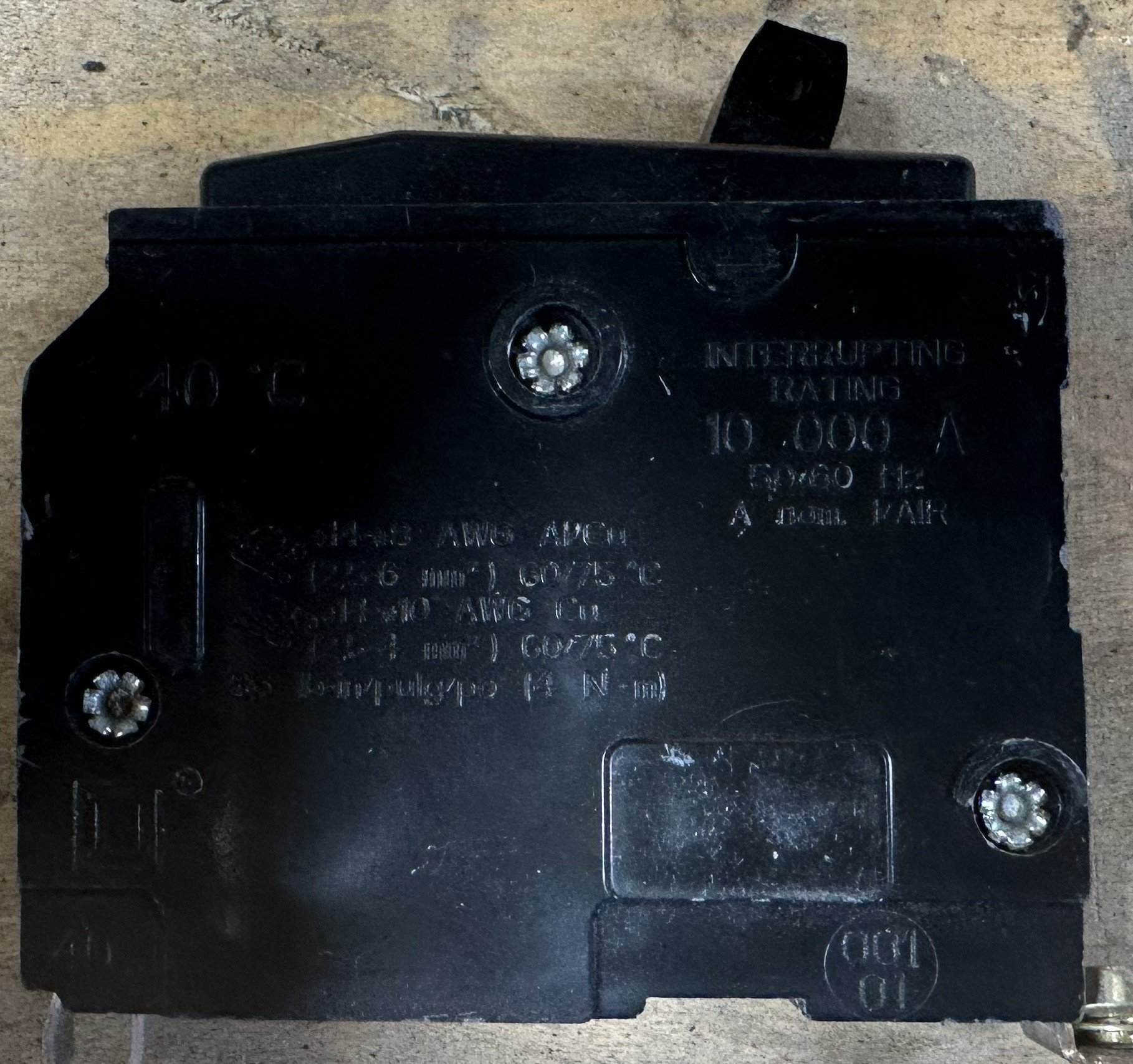

Lugs: #14–8 AWG Al/Cu or #14–10 AWG Cu, 60/75°C wire; 36 lb-in (4 N·m)
Features: SWD and HACR type
Approvals: UL listed (Issue No. DP-3357), CSA, NOM 117 (ANCE)
Made in USA

CONDITION
Used – As-Is. Removed from service. Shows normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1612
