15 Amps, Square D, FAL36015, FAL Molded Case Circuit Breaker, 3-Pole, 600 VAC / 250 VDC, Series 2

Details

Description

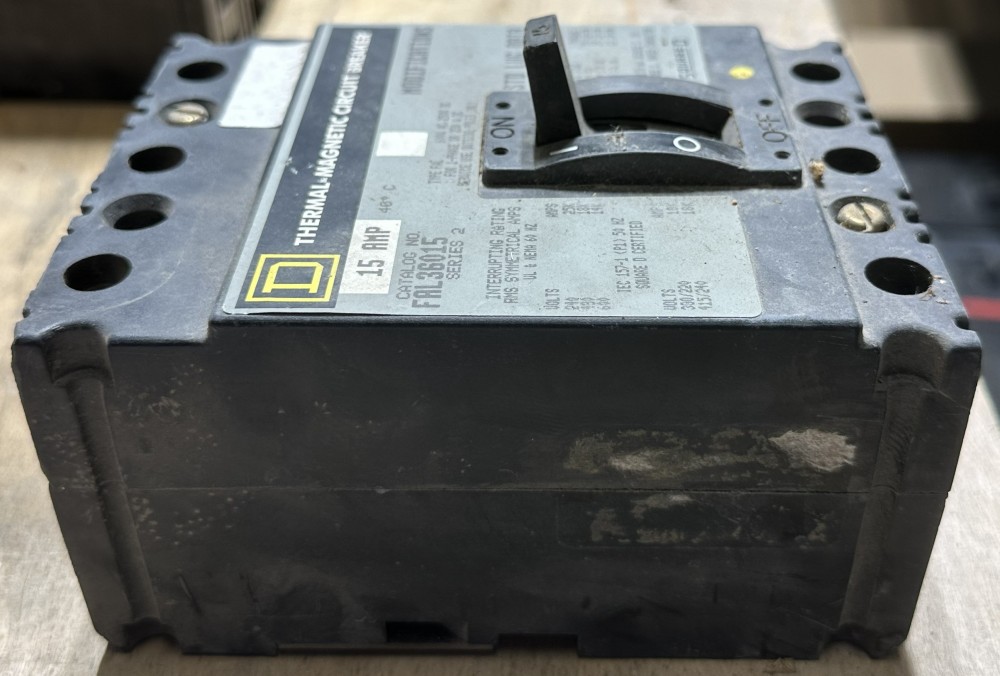

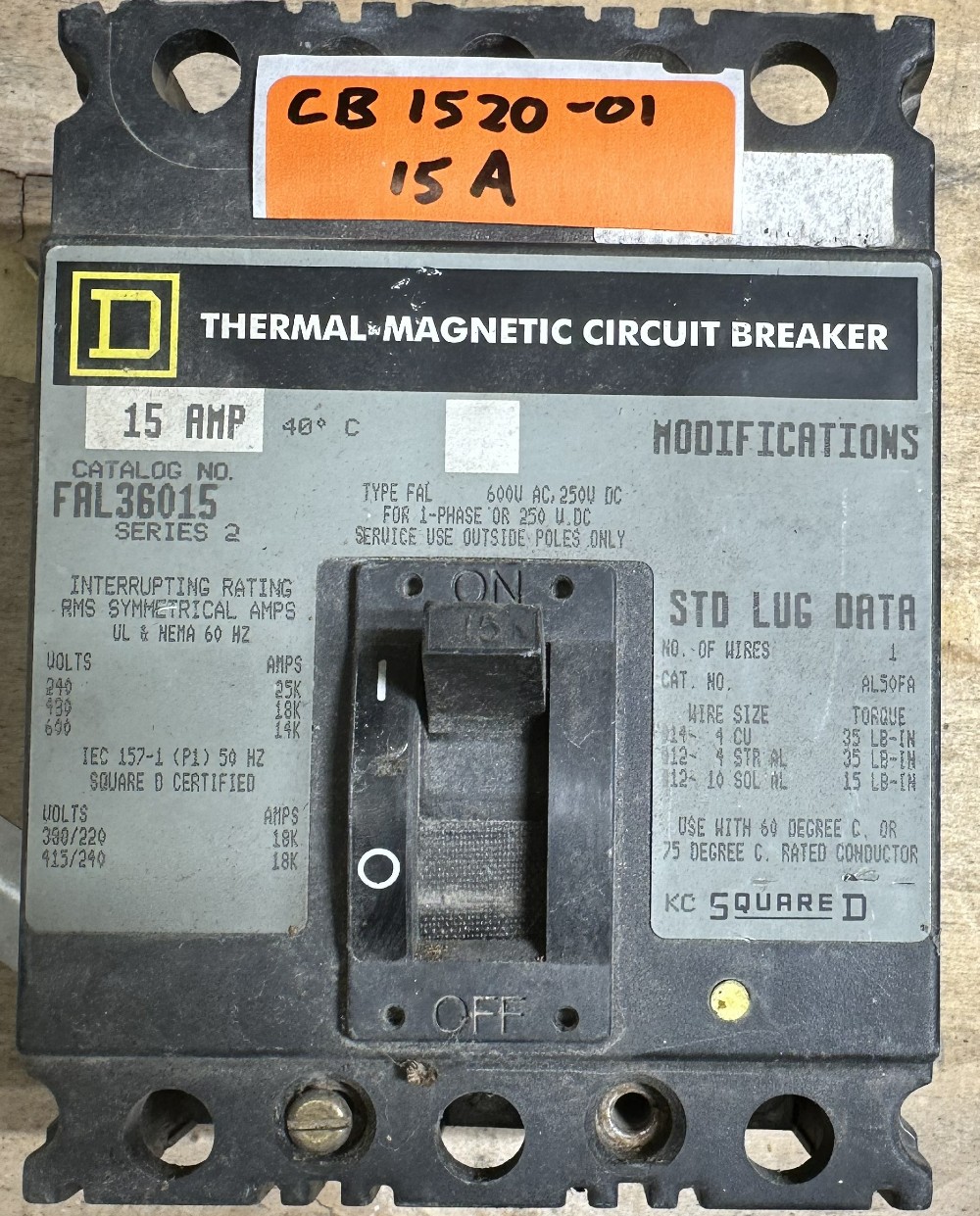

Square D FAL36015 Molded Case Circuit Breaker, Series 2
15A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 25kA @ 240V / 18kA @ 480V / 14kA @ 600V

>> Qty 7 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

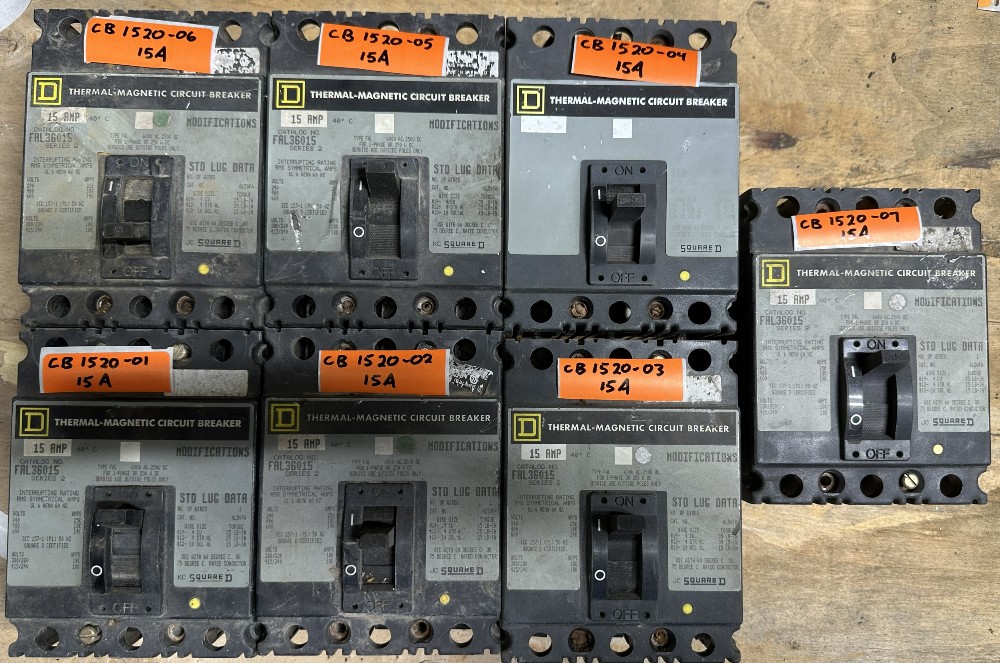

Square D FAL Series 2 thermal-magnetic molded case circuit breaker, catalog FAL36015, rated 15A at 40°C, 3-pole, 600V AC / 250V DC with fixed, non-adjustable trip. Interrupting rating of 25kA at 240V, 18kA at 480V and 14kA at 600V (UL/NEMA, 60 Hz). AL50FA lugs. Seven units available – priced each.

SPECIFICATIONS

Manufacturer: Square D
Series: FAL, Series 2
Catalog #: FAL36015
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 15A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC
Interrupting Rating (UL/NEMA, 60 Hz): 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
Interrupting Rating (IEC 157-1, 50 Hz): 18kA @ 380/220V and 415/240V
Lugs: AL50FA, one wire – #14–4 Cu and #12–4 stranded Al @ 35 lb-in; #12–10 solid Al @ 15 lb-in; 60°C or 75°C conductors

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1520
