Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Siemens |
| Stock # | CB - 1608 |
Description
Siemens Type BQ Circuit Breaker
15A, 120/240 VAC, 1 Pole, SWD – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 25 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Siemens Type BQ single-pole circuit breakers. Each is rated 15A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration). Interrupting rating is 10kA RMS symmetrical at 120/240 VAC. They are SWD (switching duty) rated and accept 14–8 AWG Cu or 12–8 AWG Al wire (60/75°C). CSA certified. We have 25 in stock, and quantity pricing is available on request for multiple units or the full lot.
SPECIFICATIONS
Manufacturer: Siemens
Type: BQ
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 VAC
Wire: 14–8 AWG Cu / 12–8 AWG Al, 60/75°C; terminal torque 25 in-lb
Features: SWD type
Approvals: CSA (file LR14374)
Label Ref.: 3277-8 (production codes vary by unit)
CONDITION

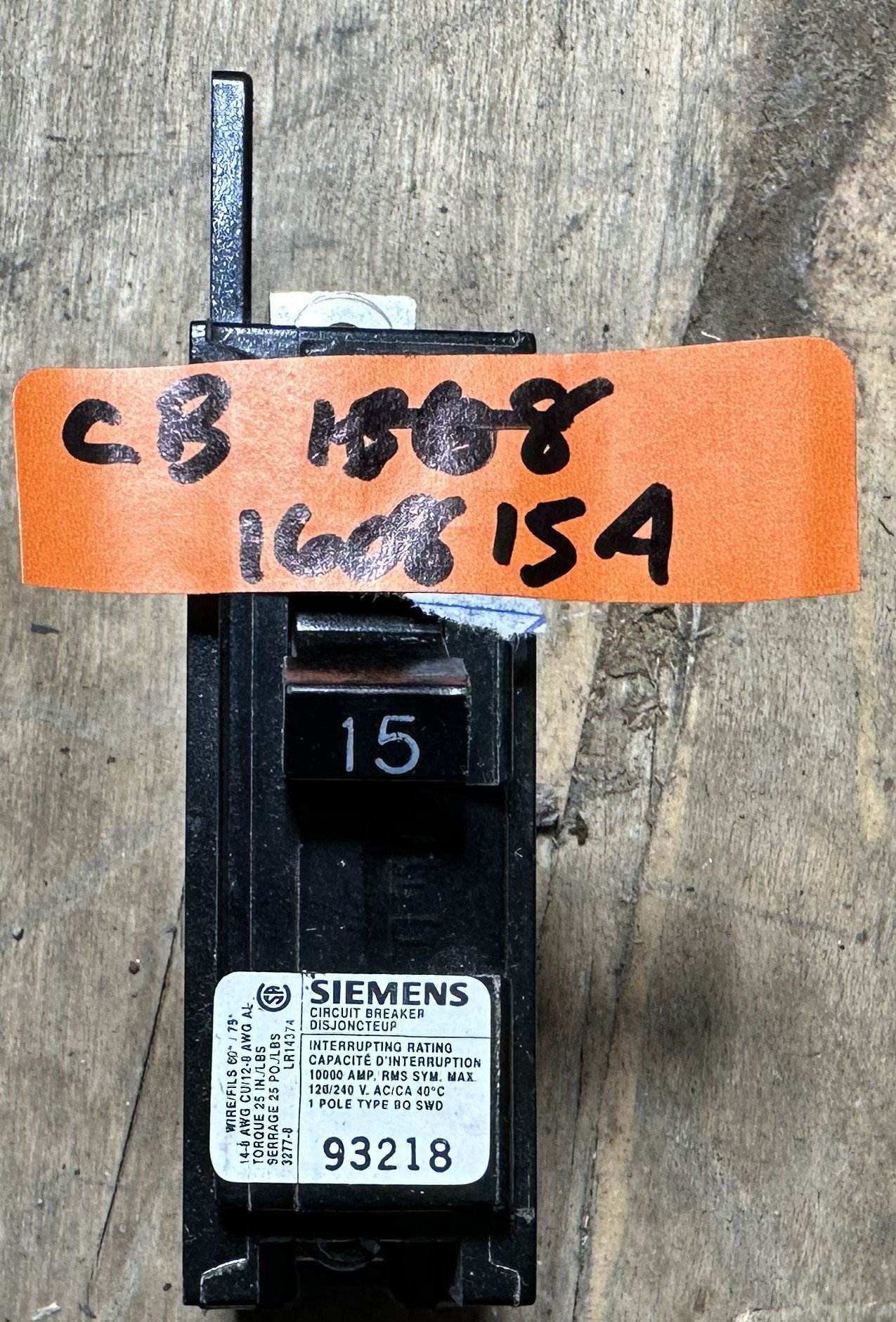

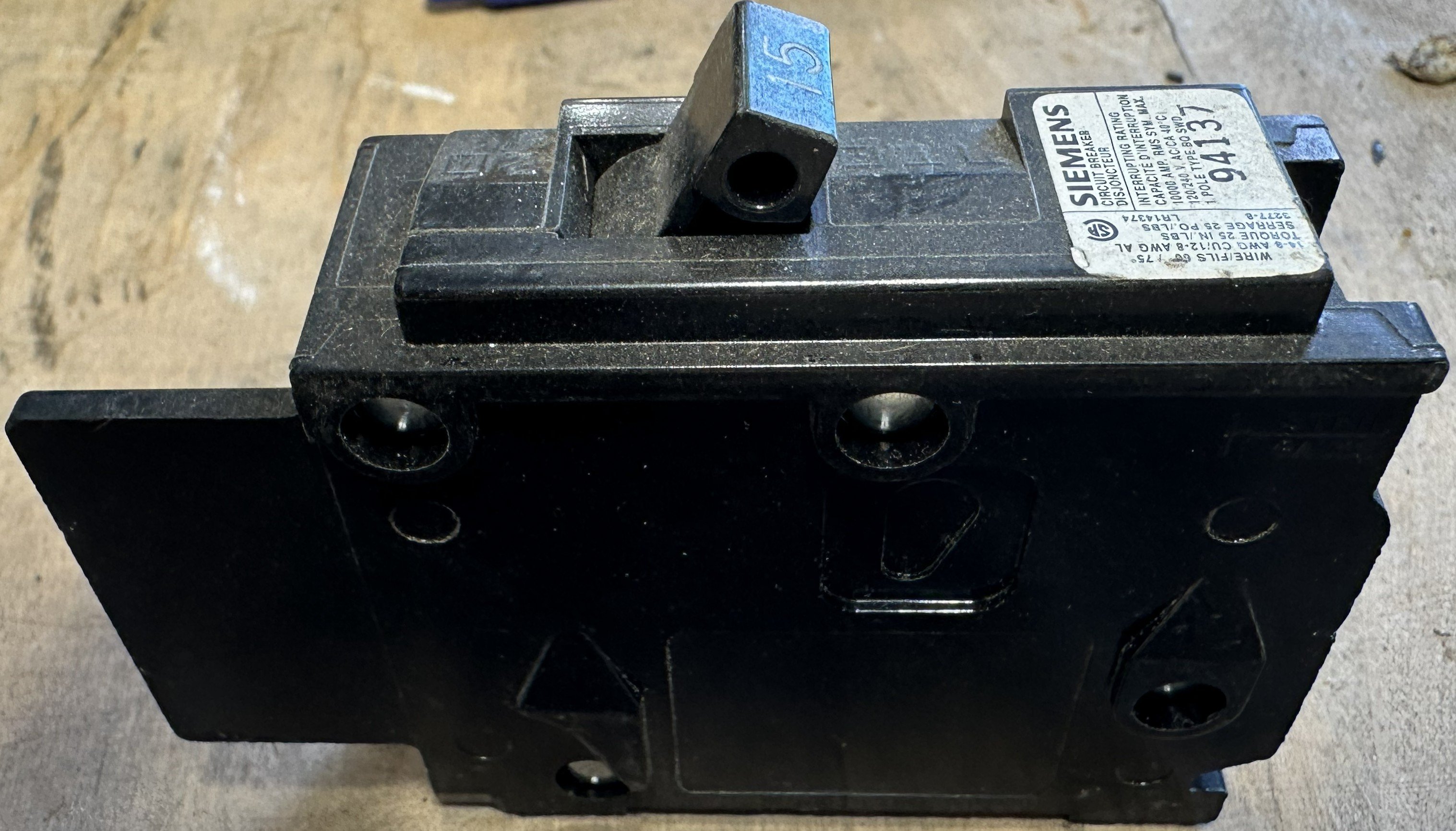

Used – As-Is. Removed from service. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1608
