15 Amps, Siemens BQ1B015, Type BQ Circuit Breaker, 1-Pole, 120/240 VAC, SWD/HACR – Qty 2

Details

Description

Siemens BQ1B015 – Type BQ
15A, 120/240 VAC, 1 Pole, SWD / HACR – Thermal-Magnetic, Non-Adjustable Trip

>> Qty 2 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

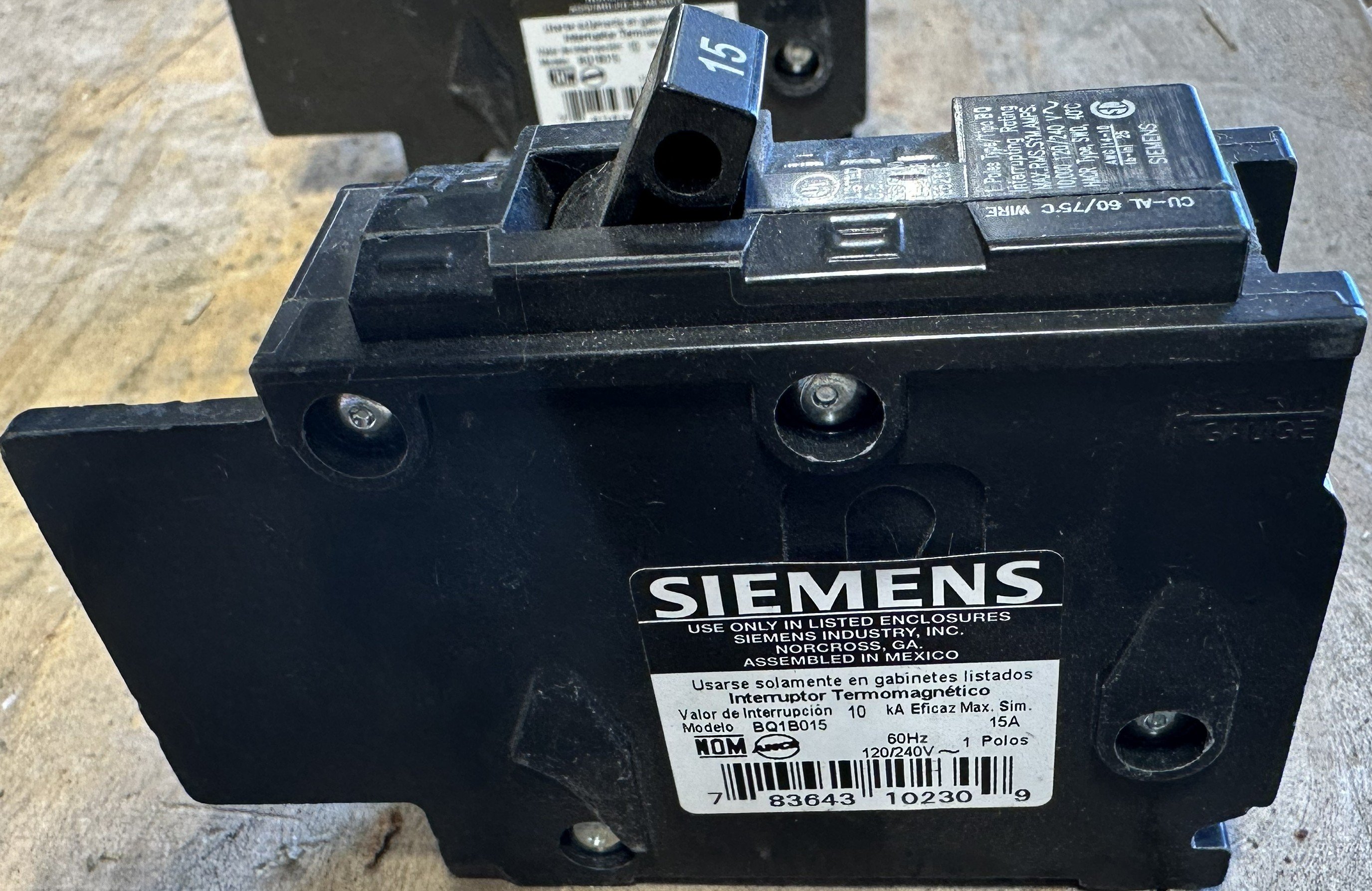

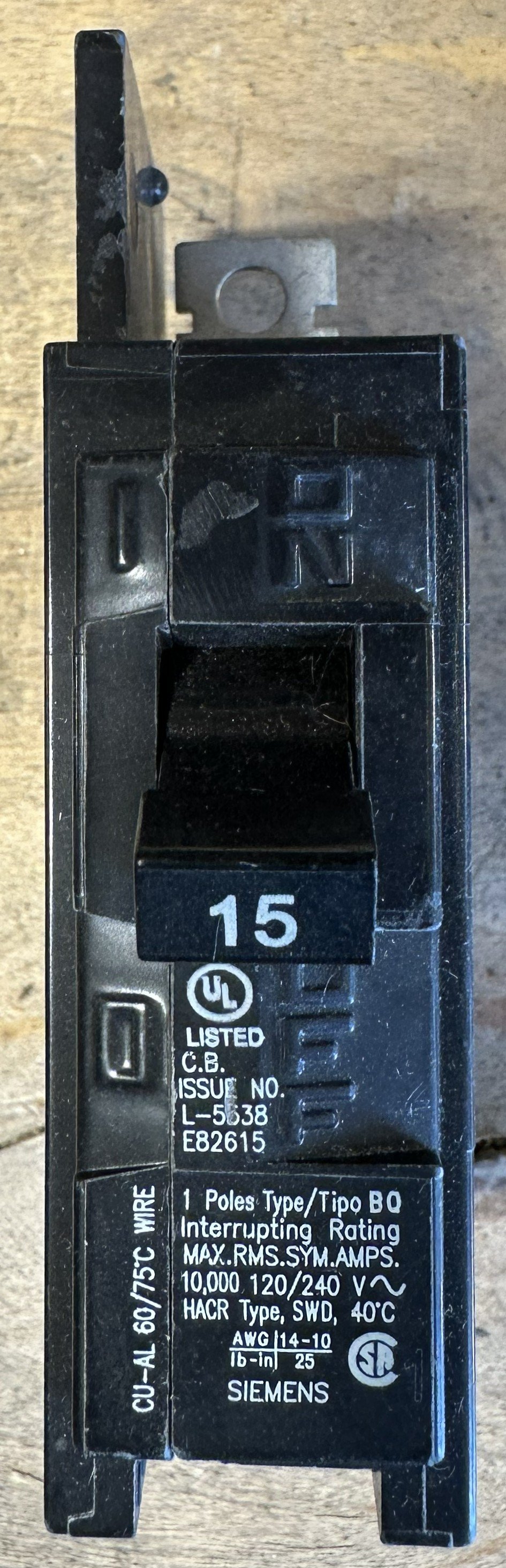

Siemens Type BQ single-pole circuit breakers, catalogue no. BQ1B015. Each is rated 15A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration). Interrupting rating is 10kA RMS symmetrical at 120/240 VAC, 60 Hz. They are SWD (switching duty) and HACR rated, with Cu-Al terminals suitable for 60/75°C wire. UL listed, CSA certified and NOM/ANCE marked. We have 2 in stock.

SPECIFICATIONS
Manufacturer: Siemens Industry, Inc.
Catalogue No.: BQ1B015
Type: BQ
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 VAC, 60 Hz
Terminals: Cu-Al, 60/75°C wire; 14–10 AWG, 25 lb-in
Features: SWD and HACR type
Approvals: UL listed (Issue No. L-5638, E82615), CSA, NOM/ANCE
Assembled in Mexico

CONDITION
Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1610
