Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Siemens |
| Stock # | CB - 1611 |
Description
Siemens B115 – Type BL
15A, 120/240 VAC, 1 Pole, SWD / HACR – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 11 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Siemens Type BL single-pole circuit breakers, catalogue no. B115. Each is rated 15A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration, 60 Hz). Interrupting rating is 10kA RMS symmetrical at 120/240 VAC. They are SWD (switching duty) and HACR rated, with Cu/Al lugs for #14–10 AWG wire (60/75°C). UL listed, CSA certified and NOM/ANCE marked. For use in listed enclosures only. We have 11 in stock, and quantity pricing is available on request.
SPECIFICATIONS
Manufacturer: Siemens Industry, Inc.
Catalogue No.: B115
Type: BL
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration, 60 Hz
Interrupting Rating: 10kA RMS sym. @ 120/240 VAC
Lugs: Cu/Al, 60/75°C wire, #14–10 AWG; 25 lb-in torque
Features: SWD and HACR type
Approvals: UL listed (Issue No. L-5538, L82615), CSA, NOM/ANCE
UPC: 7 83643 26341 3
Assembled in Mexico
CONDITION

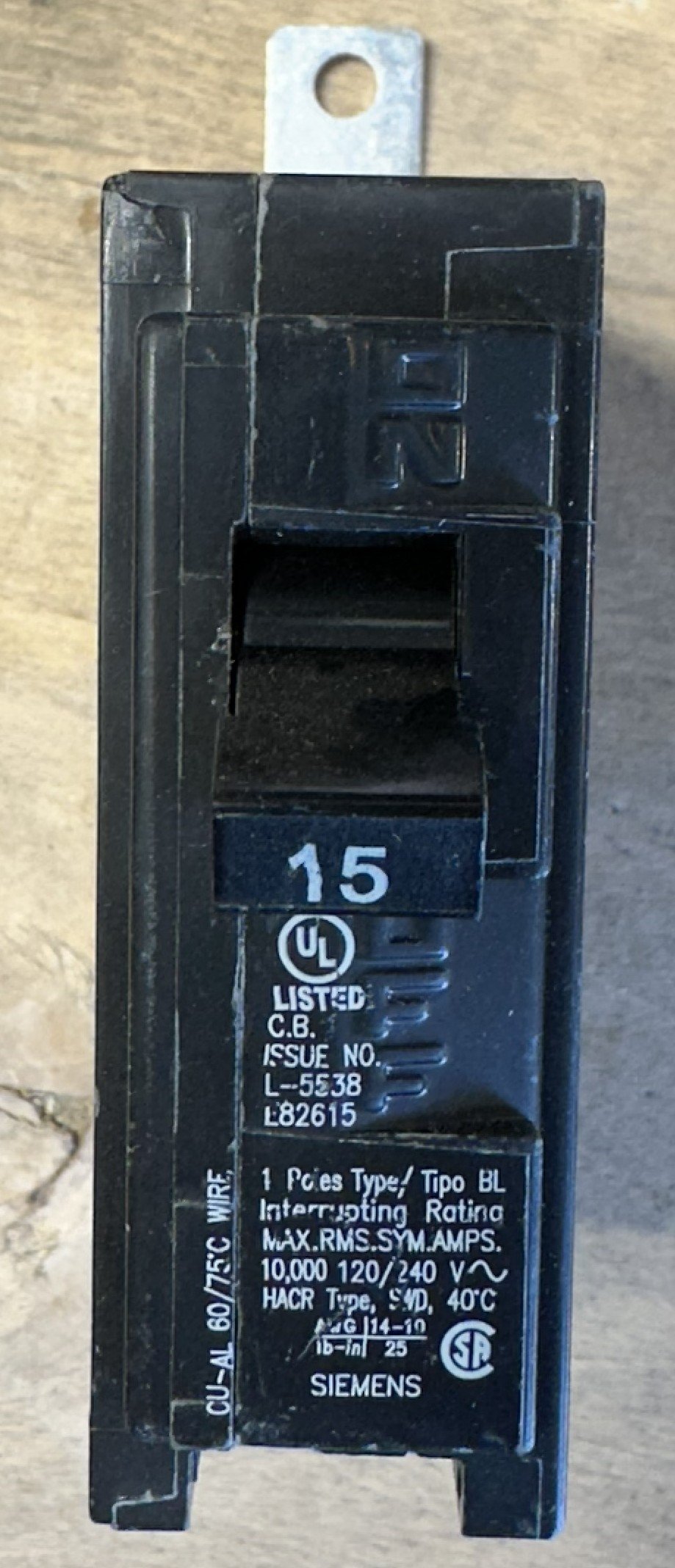

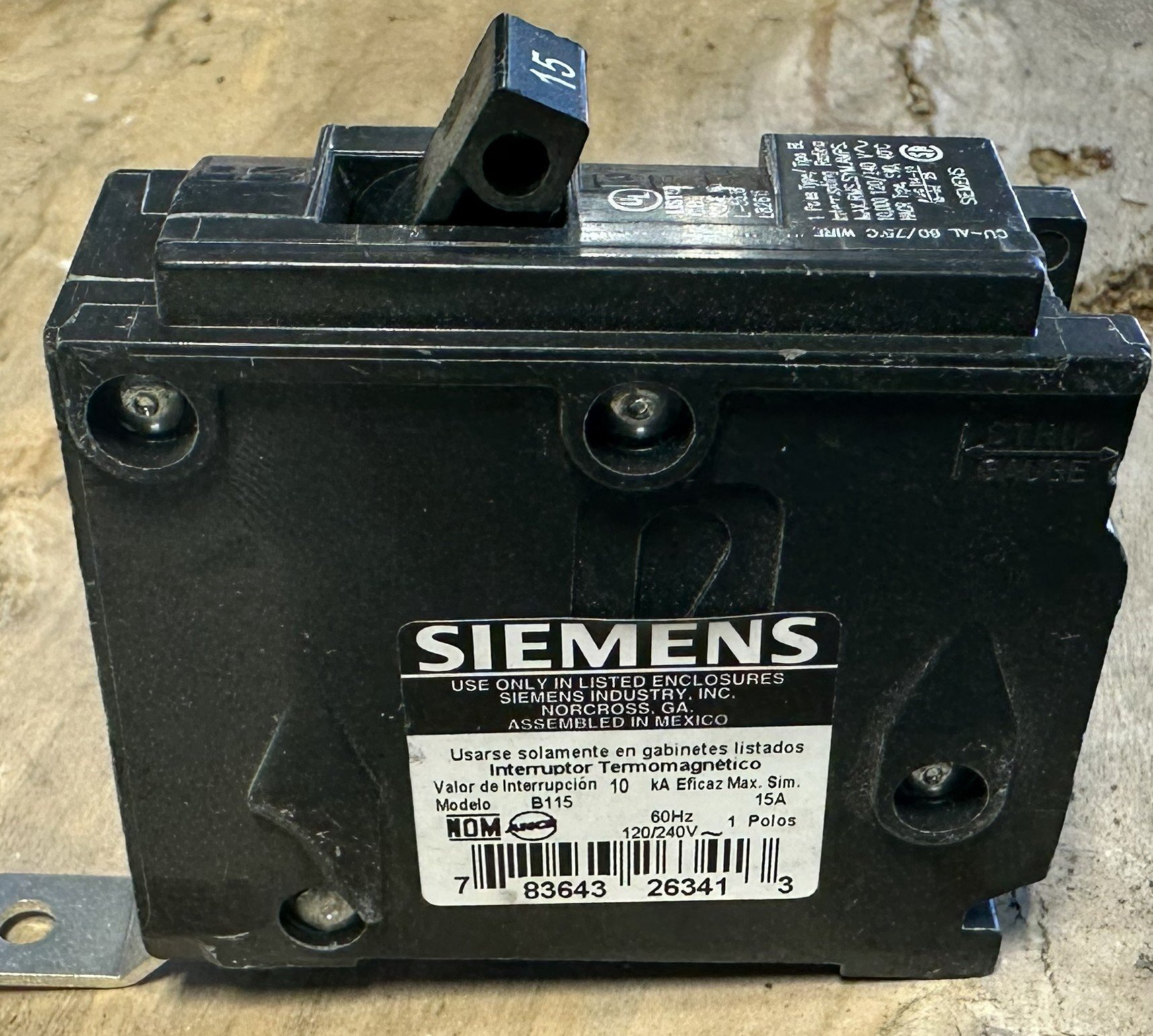

Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1611
