15 Amps, Federal Pacific, Type HEG, MCCB (equiv. HEG631015), 3-Pole, 600 VAC / 250 VDC, 65kA @ 240V, Non-Adj Trip

Details

Description

Federal Pacific Electric (FPE) Type HEG Molded Case Circuit Breaker (Equiv. HEG631015)
15A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 65kA @ 240V / 25kA @ 480V / 18kA @ 600V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

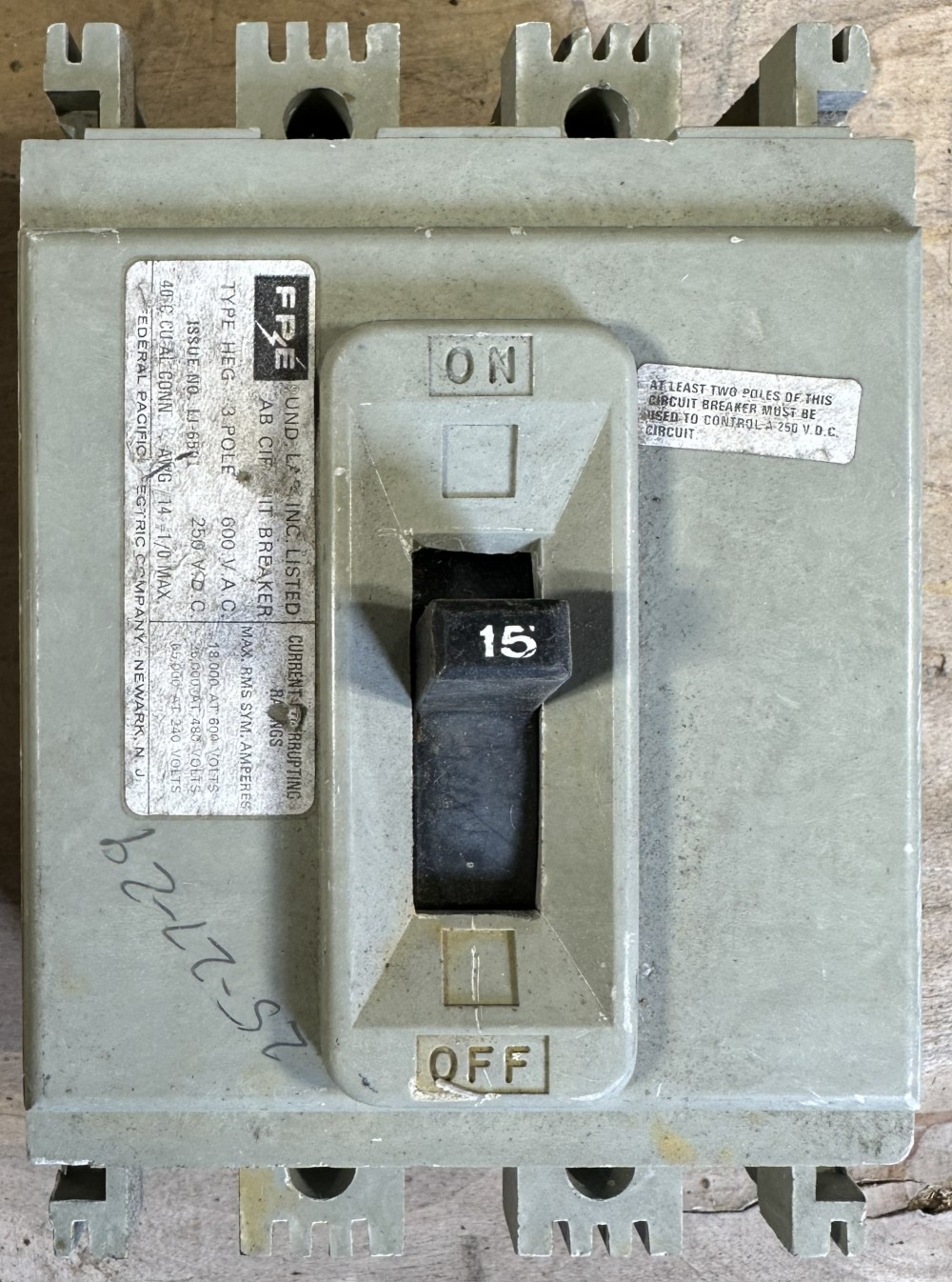

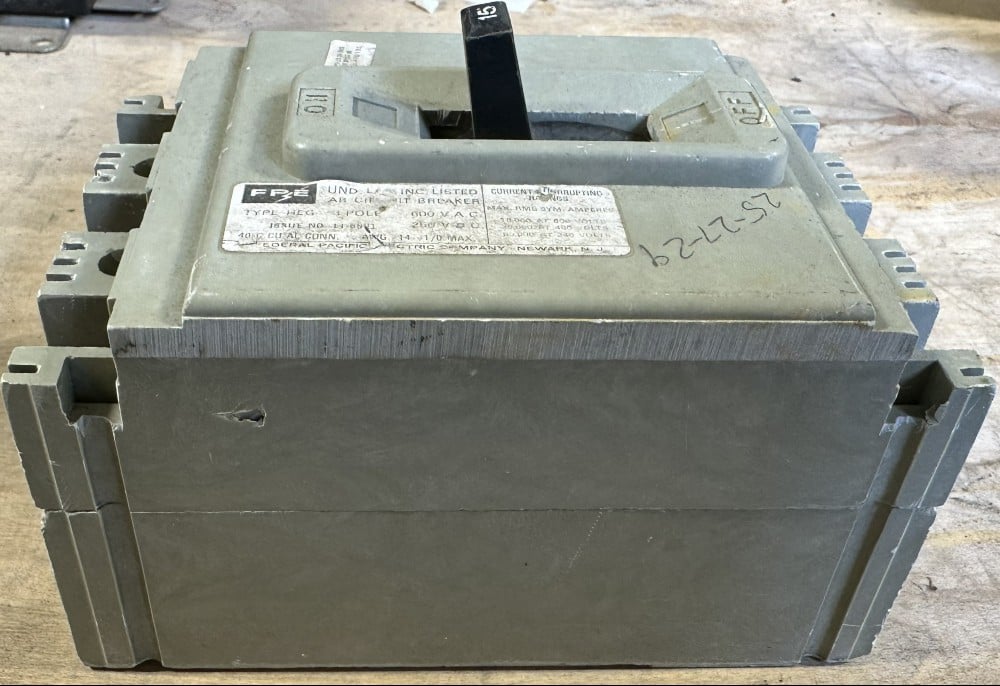

Federal Pacific Electric Co. (Newark, NJ) Type HEG high-interrupting molded case circuit breaker, rated 15A at 40°C, 3-pole, 600V AC / 250V DC, with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 25,000A at 480V and 18,000A at 600V (RMS symmetrical). Cu/Al terminals, #14–1/0 AWG. UL listed. Catalog number not marked on unit; HEG631015 is the standard catalog number for this type and rating. One unit available – priced by the each.

SPECIFICATIONS

Manufacturer: Federal Pacific Electric Co., Newark, New Jersey
Series: Type HEG (UL Issue No. LJ-6591)
Catalog #: Not marked (standard equivalent: HEG631015)
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 15A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC (at least two poles must be used for a 250V DC circuit)
Interrupting Rating: 65,000A @ 240V, 25,000A @ 480V, 18,000A @ 600V (RMS Sym.)
Terminals: Cu/Al, #14–1/0 AWG max.
Approvals: UL Listed

CONDITION

Condition: Used – As-Is. Handwritten marker notes on covers.

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1561
