Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Cutler-Hammer |
| Model | GBH2015 |
| Stock # | CB - 1550 |
Description
Cutler-Hammer Type GBH GBH2015 Bolt-On Circuit Breaker
15A – 2-Pole – 347/600V AC / 125/250V DC – Thermal-Magnetic, Fixed Trip – 10kA @ 347/600V AC / 14kA @ 125/250V DC
>> Qty 6 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

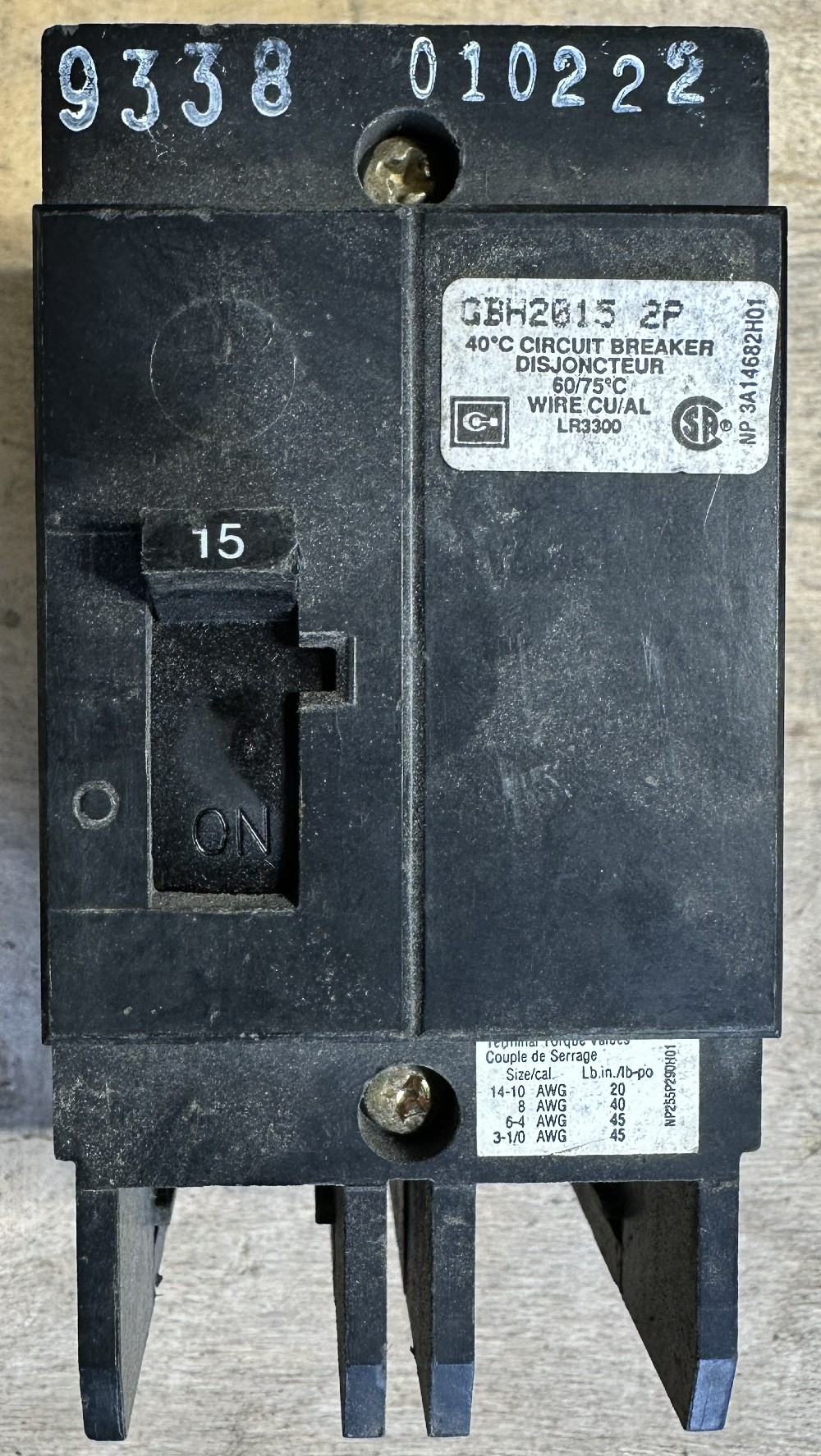

Cutler-Hammer Type GBH bolt-on circuit breaker, catalog GBH2015, rated 15A at 40°C, 2-pole, 347/600V AC / 125/250V DC, with fixed, non-adjustable trip. Interrupting rating of 10,000A at 347/600V AC and 14,000A at 125/250V DC (use 2 poles in series for 250V DC). Cu/Al wire, 60/75°C. CSA certified, factory sealed. Six units available – priced each.
Please note: 347/600V slash rating – for use on solidly grounded wye systems only.
SPECIFICATIONS
Manufacturer: Cutler-Hammer
Series: Type GBH (bolt-on)
Catalog #: GBH2015
Type: Thermal-Magnetic Bolt-On Circuit Breaker
Poles: 2
Current Rating: 15A @ 40°C

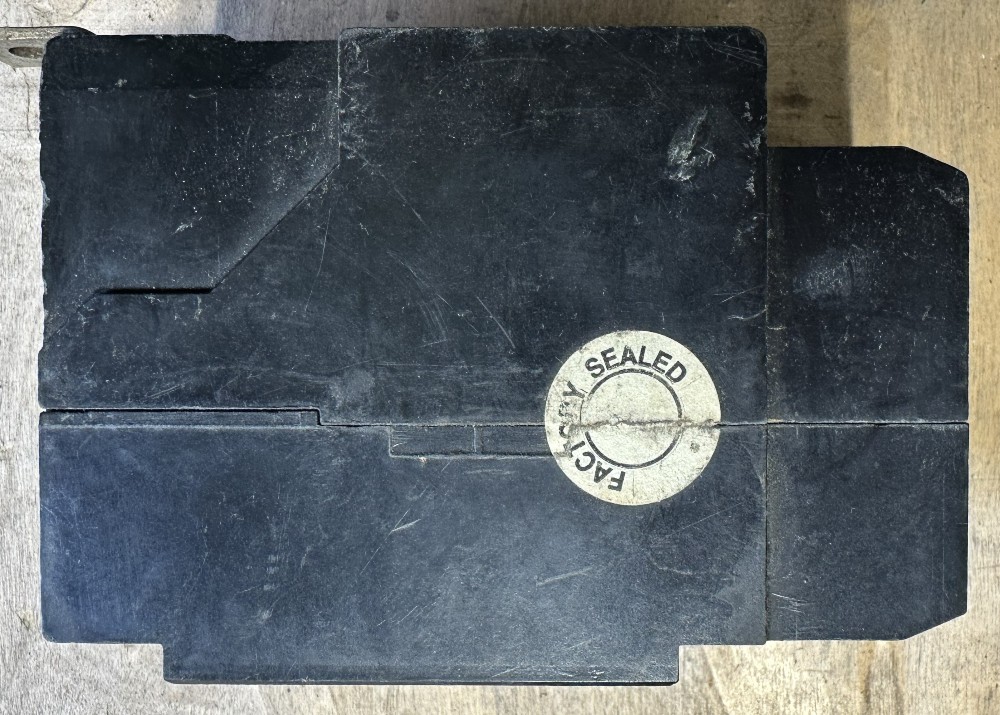

Trip Type: Fixed – non-adjustable; factory sealed
Voltage: 347/600V AC; 125/250V DC (2 poles in series for 250V DC)

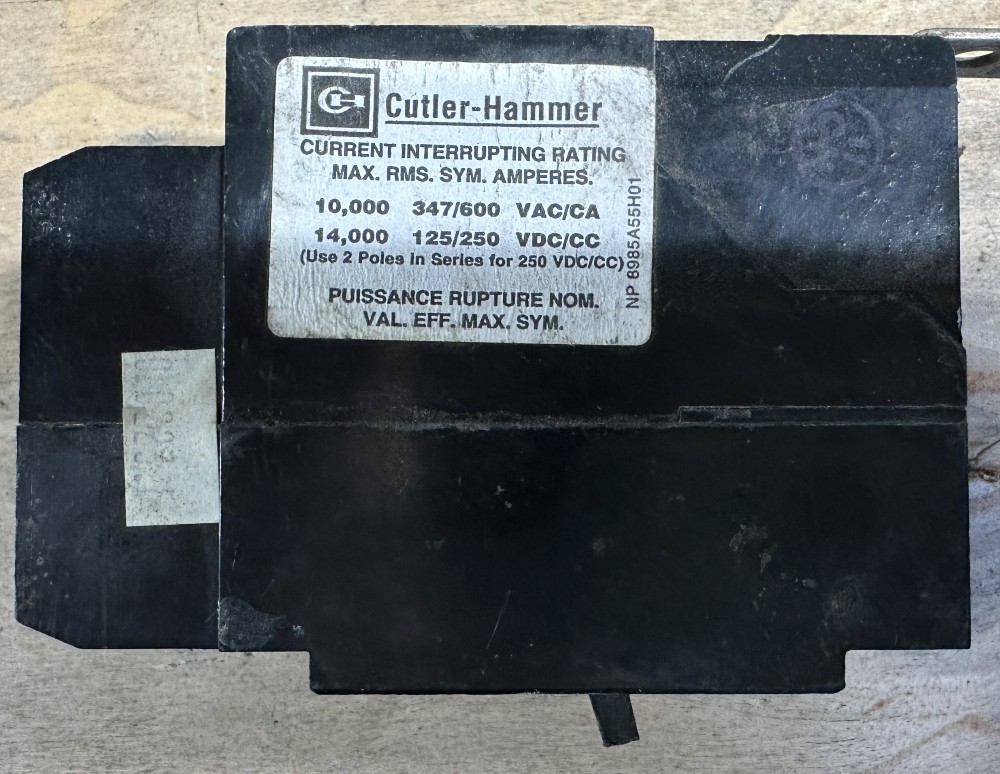

Interrupting Rating: 10,000A Sym. @ 347/600V AC; 14,000A Sym. @ 125/250V DC
Wire: Cu/Al, 60/75°C
Terminal Torque: 14–10 AWG 20 lb-in; 8 AWG 40 lb-in; 6–4 AWG 45 lb-in; 3–1/0 AWG 45 lb-in
Nameplate #: NP 3A14682H01
Approvals: CSA (File LR3300)
CONDITION

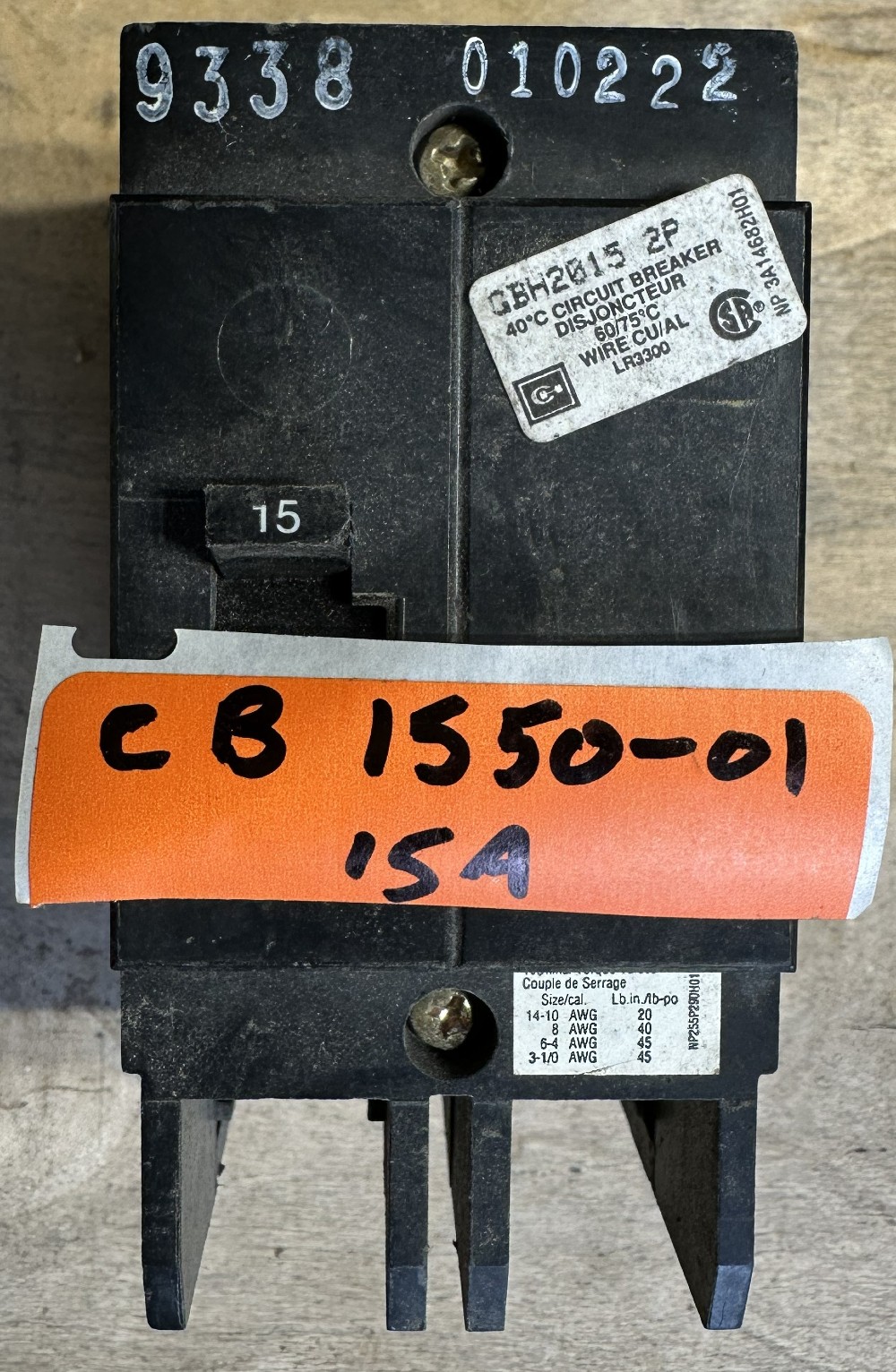

Condition: Used – As-Is. Inventory numbers marked on case.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1550
