Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | Q232125 |
| Stock # | CB- 1592 |
Description

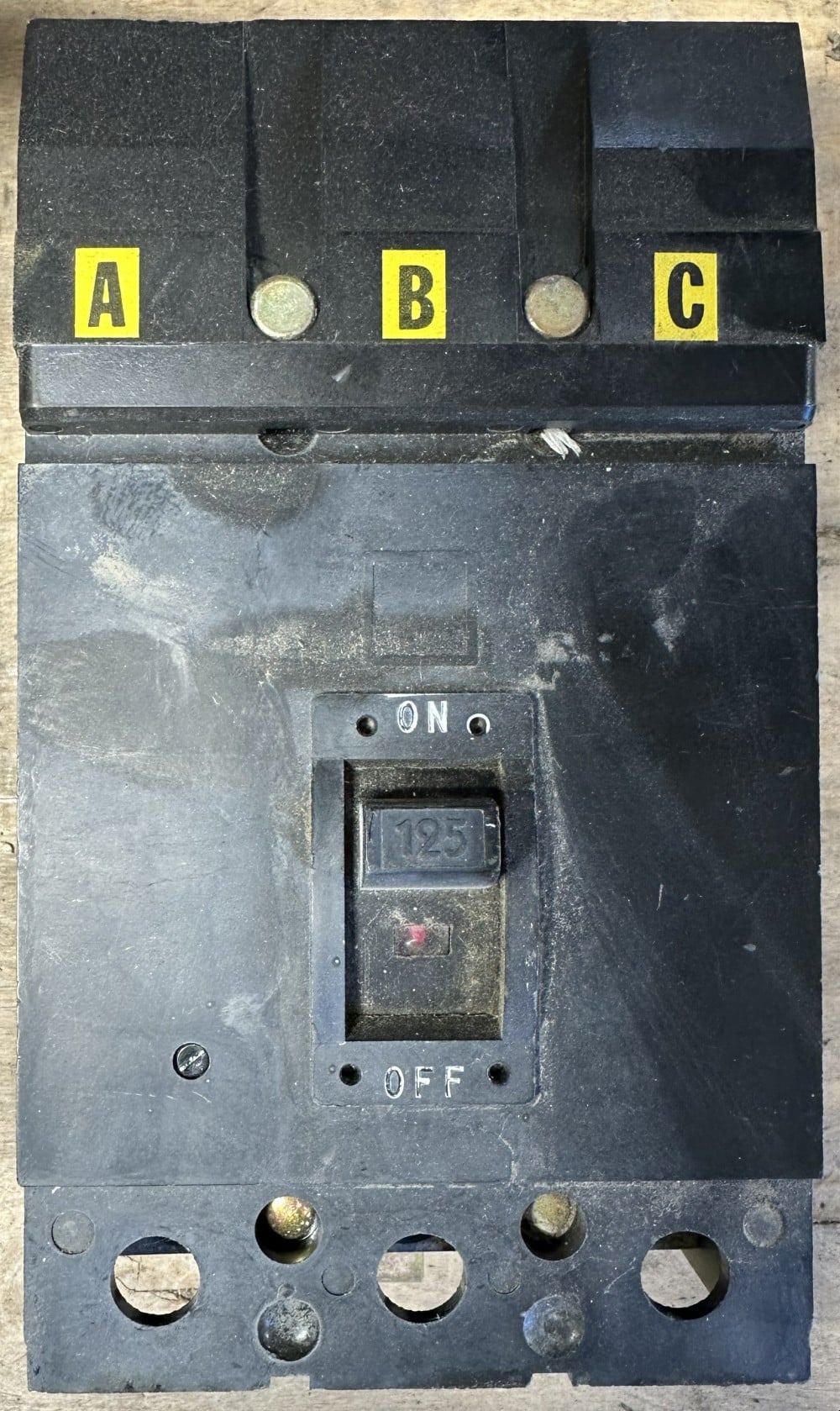

Square D Q2-32125 Type Q2 I-Line Plug-In Molded Case Circuit Breaker – Vintage
125A – 3-Pole – Thermal-Magnetic, Fixed Trip – I-Line Plug-On
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Vintage Square D Company Canada Limited Type Q2 thermal-magnetic molded case circuit breaker, catalog Q2-32125, rated 125A at 40°C, 3-pole, with fixed, non-adjustable trip. I-Line plug-in jaws on line end with A-B-C phase markings. Load-side lugs for #4 AWG–300 MCM Cu or Al.

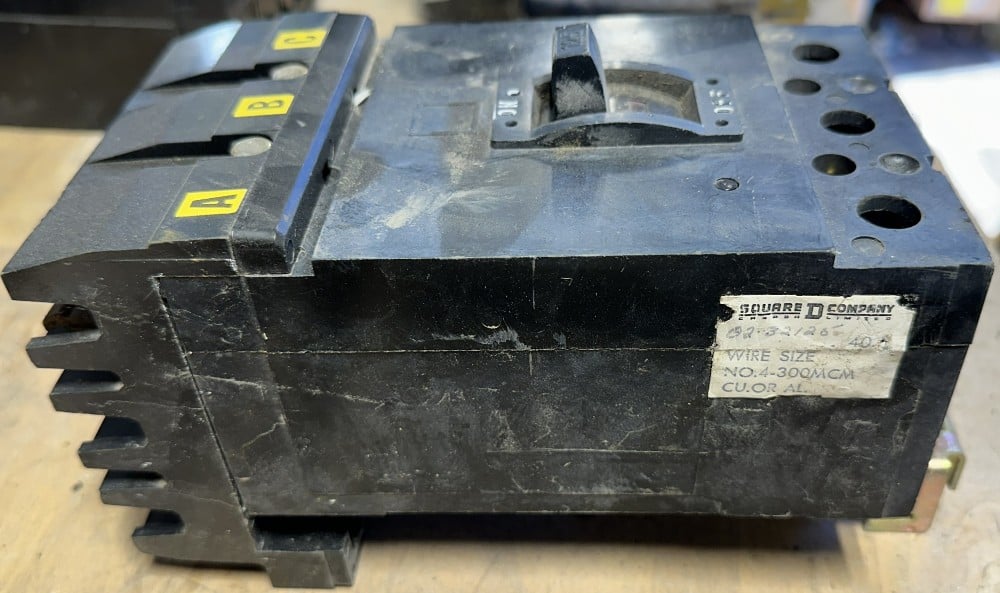

Please note: Catalog number is partly legible on the side label. Voltage and interrupting rating are not marked; the catalog number indicates the 240V class (probable 240V AC, not confirmed). Buyer to verify suitability before use.
SPECIFICATIONS
Manufacturer: Square D Company Canada Limited
Series: Type Q2
Catalog #: Q2-32125 (label partly legible)
Type: Thermal-Magnetic Molded Case Circuit Breaker, I-Line plug-in
Poles: 3 (A-B-C)
Current Rating: 125A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: Not marked – probable 240V AC (per catalog number)
Interrupting Rating: Not marked
Line Connection: I-Line plug-in jaws
Load Lugs: #4 AWG–300 MCM Cu or Al
CONDITION
Condition: Used – As-Is. Vintage unit; side label partly legible.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1592
