Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | GE Spectra |
| Model | MCCB |
| Stock # | CB - 1564 |
Description
GE Spectra RMS SKL High Interrupting Circuit Breaker with Motor Operator & Shunt Trip
1200A SKL Frame – 3-Pole – Electronic Trip – SKMOM1 Motor Operator – SAST4 Shunt Trip – Bus Extensions
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

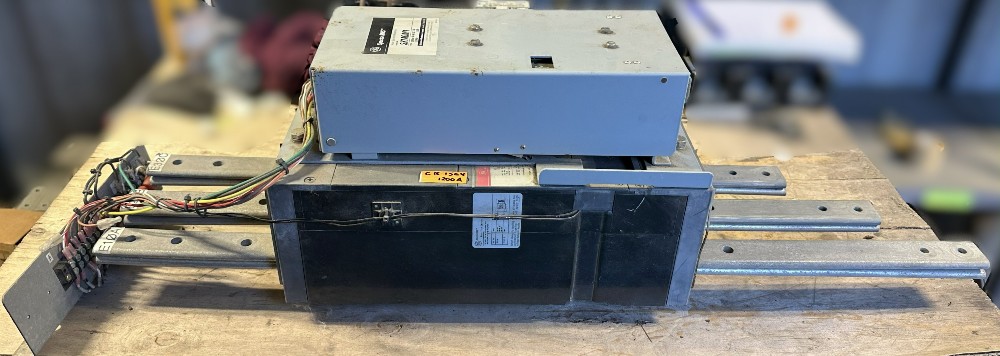

General Electric Spectra RMS SKL-frame high interrupting molded case circuit breaker, 1200A maximum, 3-pole, with electronic trip. Complete with SKMOM1 motor operated mechanism (120 VAC 50/60 Hz 7.5A / 125 VDC 5.0A) and SAST4 shunt trip (48 VAC 50/60 Hz / 48 VDC, inrush 300 mA), suitable for use with ground fault sensing and relaying equipment. Bus bar extensions installed (one side marked E1ØA, E2ØB, E3ØC), with control wiring and TB1/TB2 terminal blocks on mounting bracket.
Please note: Full catalog number, rating plug (trip rating), voltage and interrupting rating available on request.
SPECIFICATIONS
Manufacturer: General Electric
Series: Spectra RMS, SKL Frame (High Interrupting)
Type: Molded Case Circuit Breaker, electronic trip
Poles: 3
Frame Rating: 1200A maximum

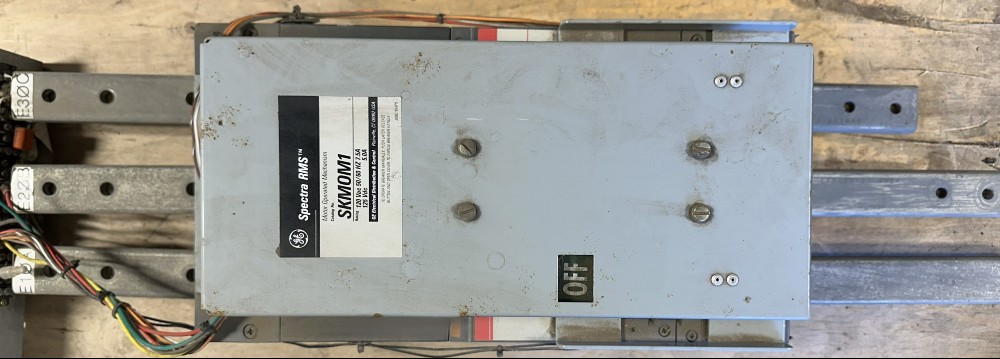

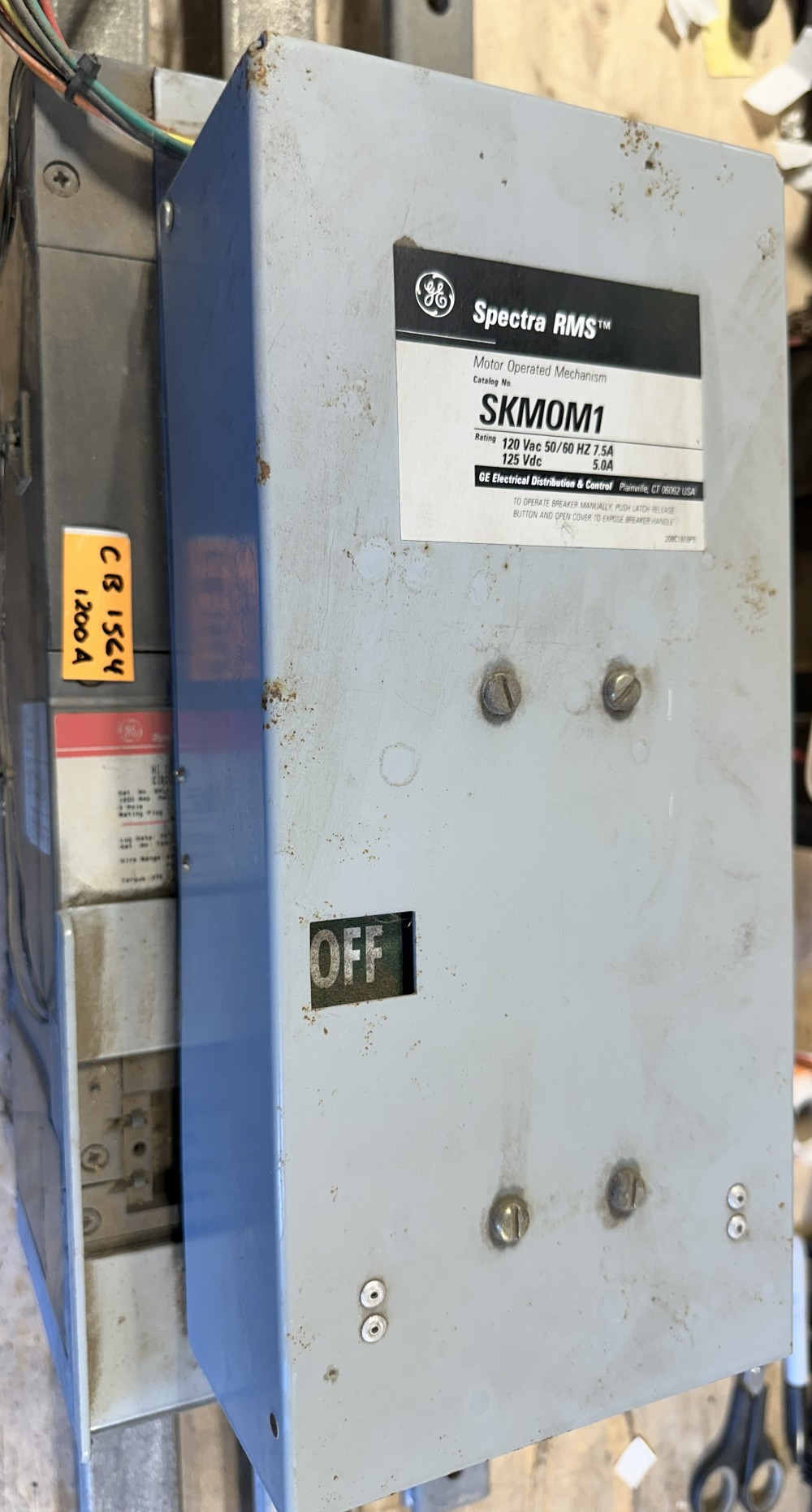

Motor Operator: SKMOM1, 120 VAC 50/60 Hz 7.5A / 125 VDC 5.0A (installed)

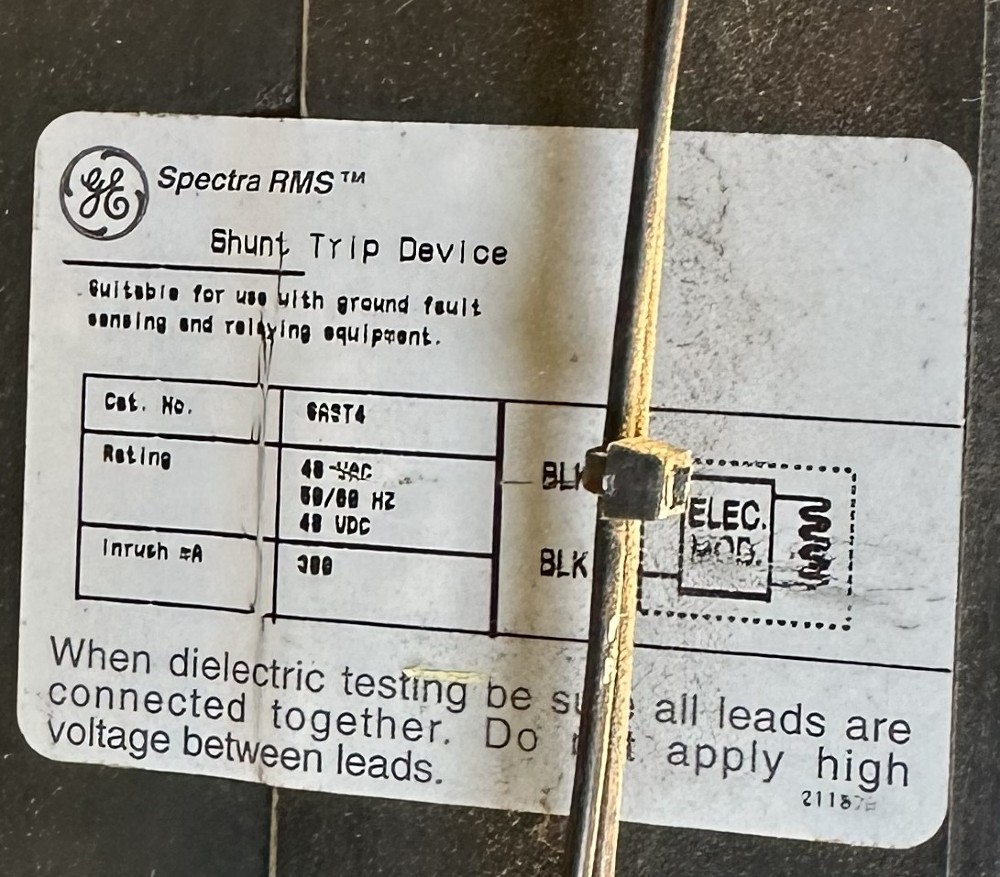

Shunt Trip: SAST4, 48 VAC 50/60 Hz / 48 VDC, inrush 300 mA (installed); suitable for ground fault sensing and relaying equipment
Bus Extensions: Installed, one side marked E1ØA, E2ØB, E3ØC

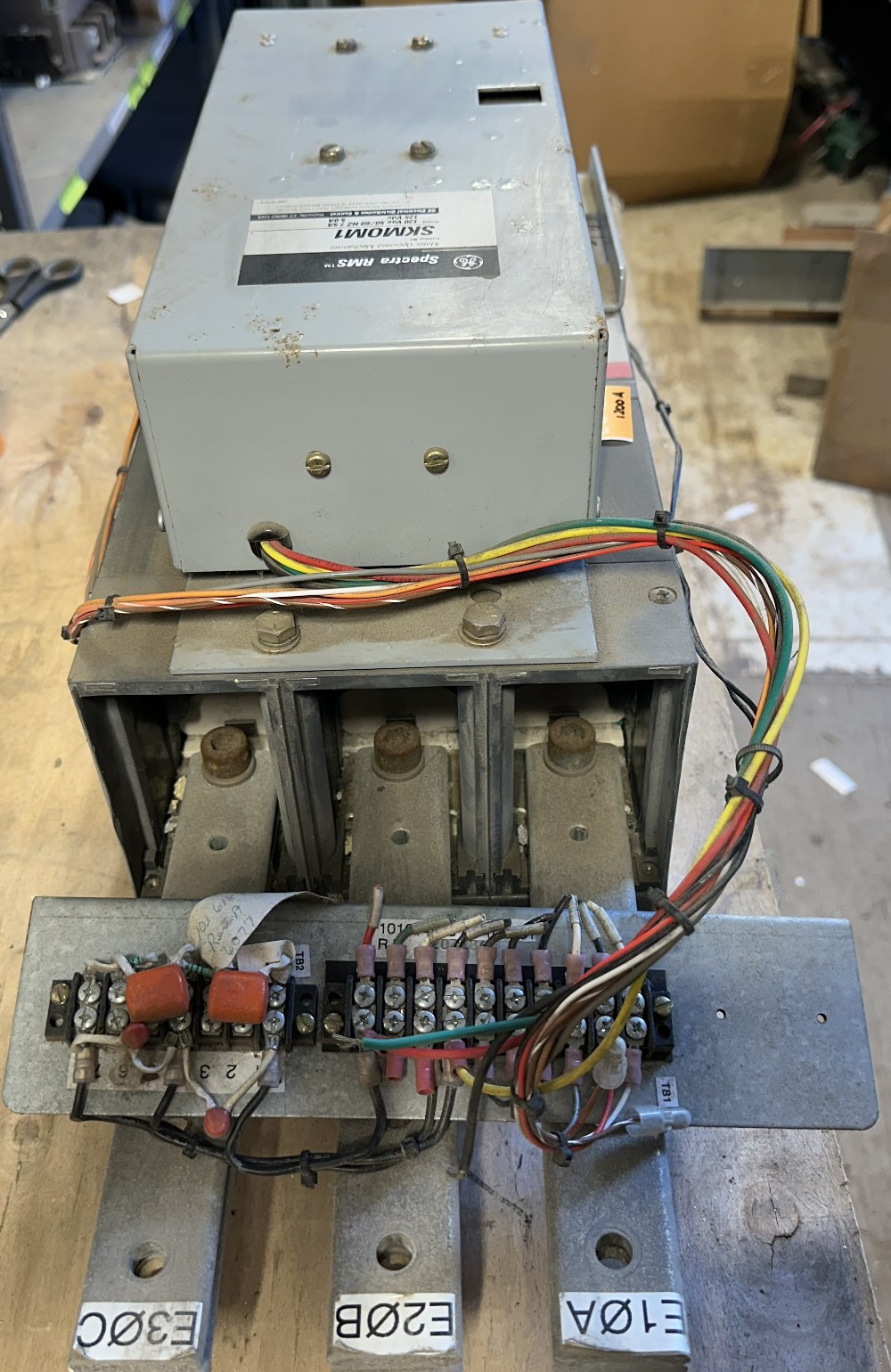

Control Wiring: Terminal blocks TB1/TB2 on mounting bracket
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)

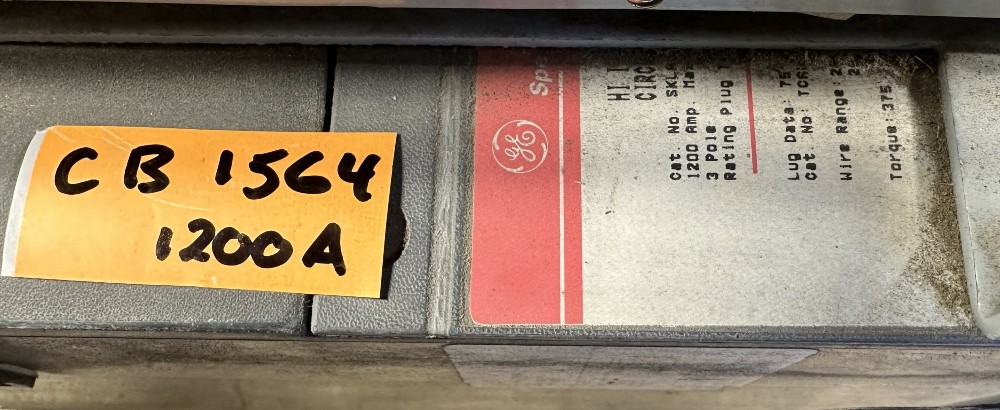

Stock #: CB-1564
