100A, Westinghouse, HFB3100, Mark 75, Molded Case Circuit Breaker, 3-Pole, 600 Volts, 65kA @ 240V

Details

Description

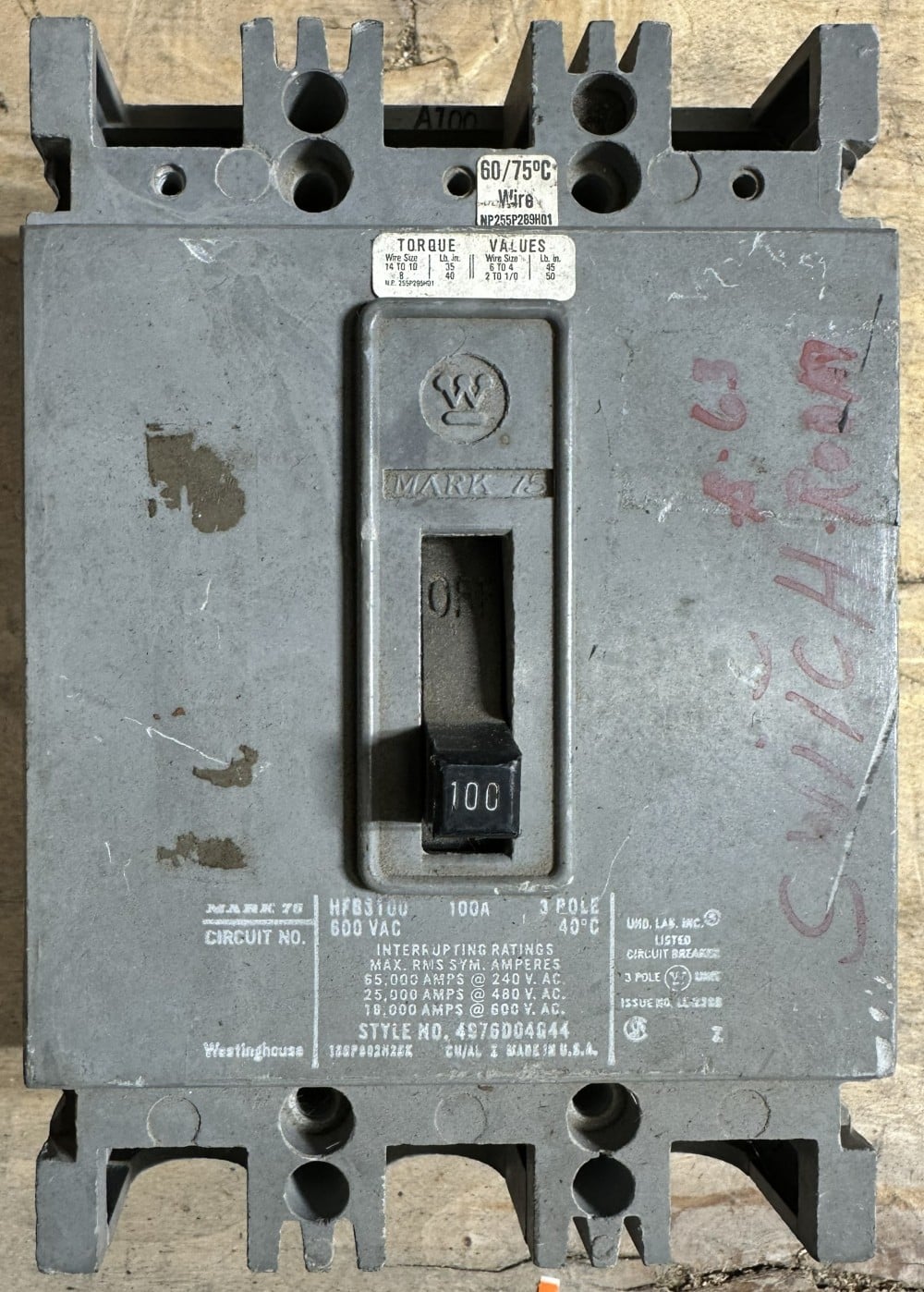

Westinghouse Mark 75 HFB3100 High Interrupting Molded Case Circuit Breaker
100A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 65kA @ 240V / 25kA @ 480V / 18kA @ 600V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

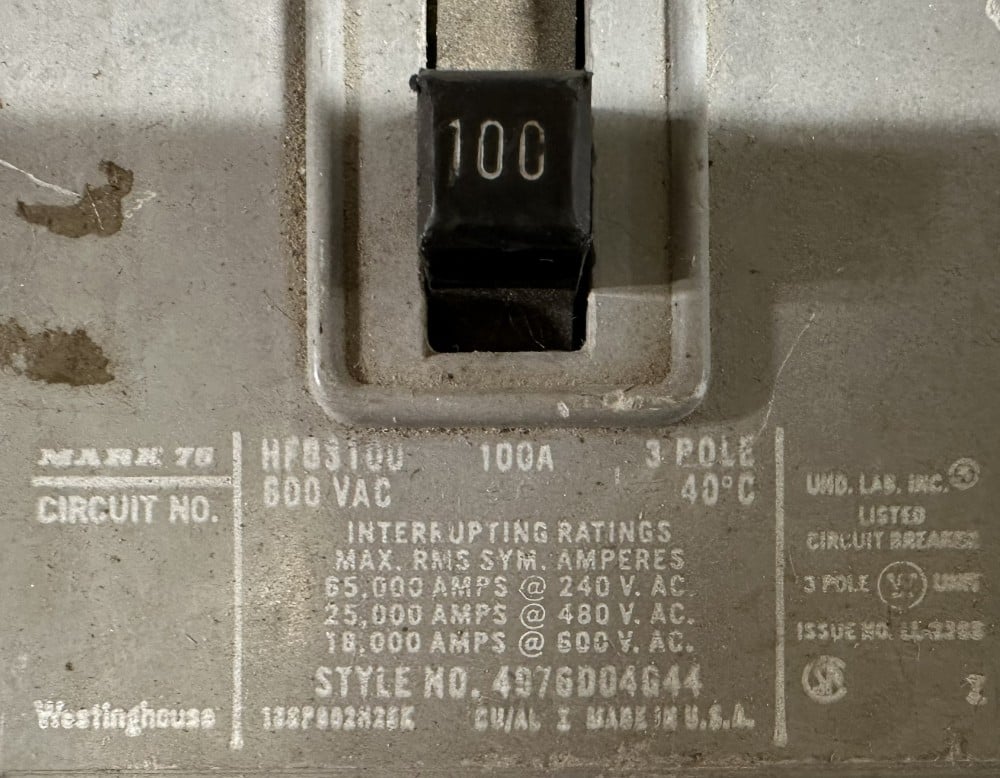

Westinghouse Mark 75 HFB high interrupting thermal-magnetic molded case circuit breaker, catalog HFB3100, Style No. 4976D04G44. Rated 100A at 40°C, 3-pole, 600V AC, with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 25,000A at 480V and 18,000A at 600V. Cu/Al terminals, 60/75°C wire. UL listed and CSA certified.

SPECIFICATIONS

Manufacturer: Westinghouse (Westinghouse Canada / Made in U.S.A.)
Series: Mark 75 HFB (High Interrupting)
Catalog #: HFB3100
Style #: 4976D04G44
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 100A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 65,000A @ 240V, 25,000A @ 480V, 18,000A @ 600V
Calibration: 40°C
Terminals: Cu/Al, 60/75°C wire
Lug Torque: #14–10 AWG 35 lb-in; #8 AWG 40 lb-in; #6–4 AWG 45 lb-in; #2–1/0 AWG 50 lb-in
Approvals: UL Listed, CSA

CONDITION

Condition: Used – As-Is. Nameplate labels worn.

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1581
