Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | TYPE FA |
| Stock # | CB - 1571 |
Description
Square D Type FA Plug-In Molded Case Circuit Breaker – Probable FA36100
100A – 3-Pole – 600V AC / 125-250V DC – Thermal-Magnetic, Fixed Trip – 14kA @ 480V / 600V
>> Qty 2 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

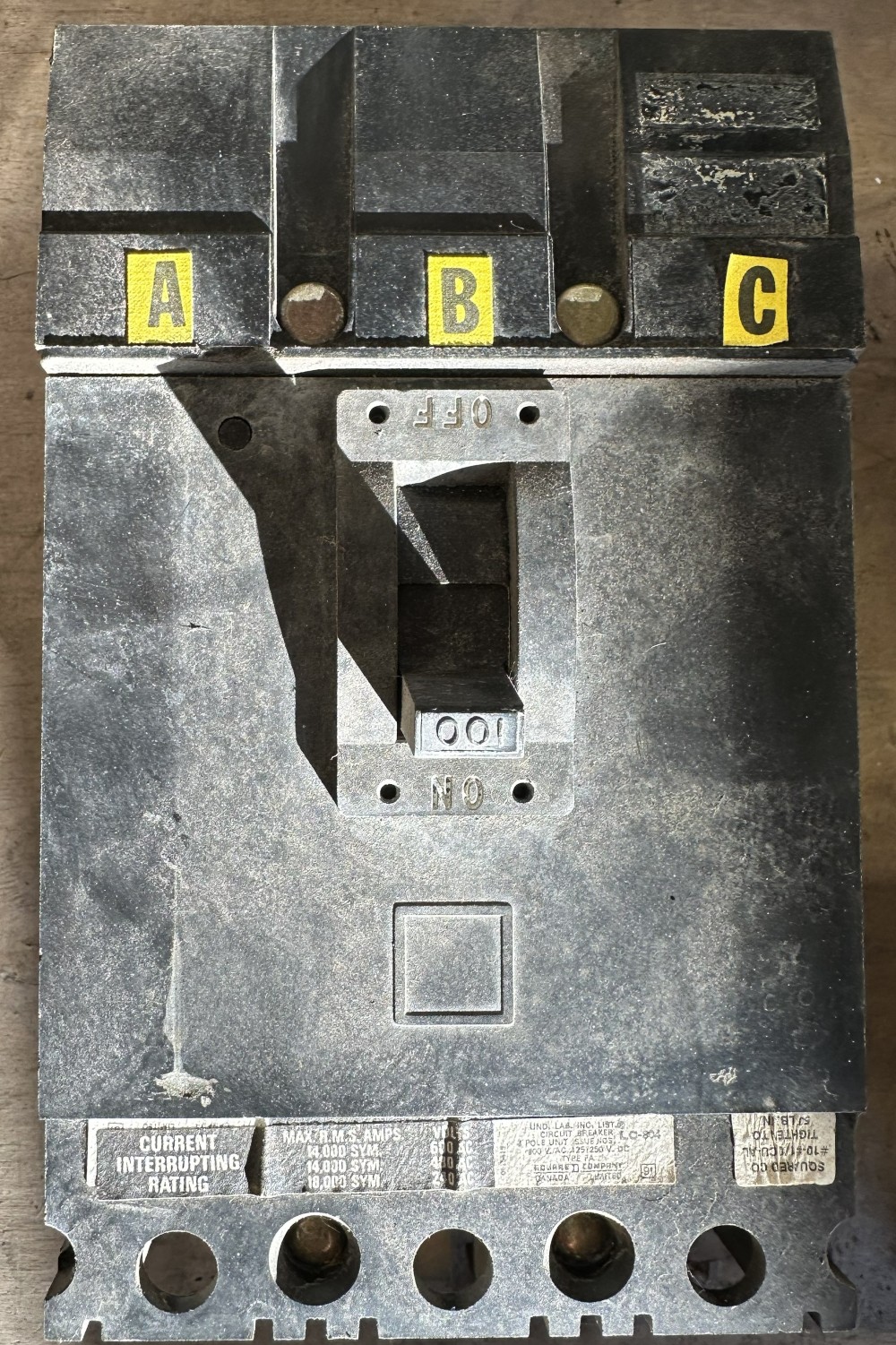

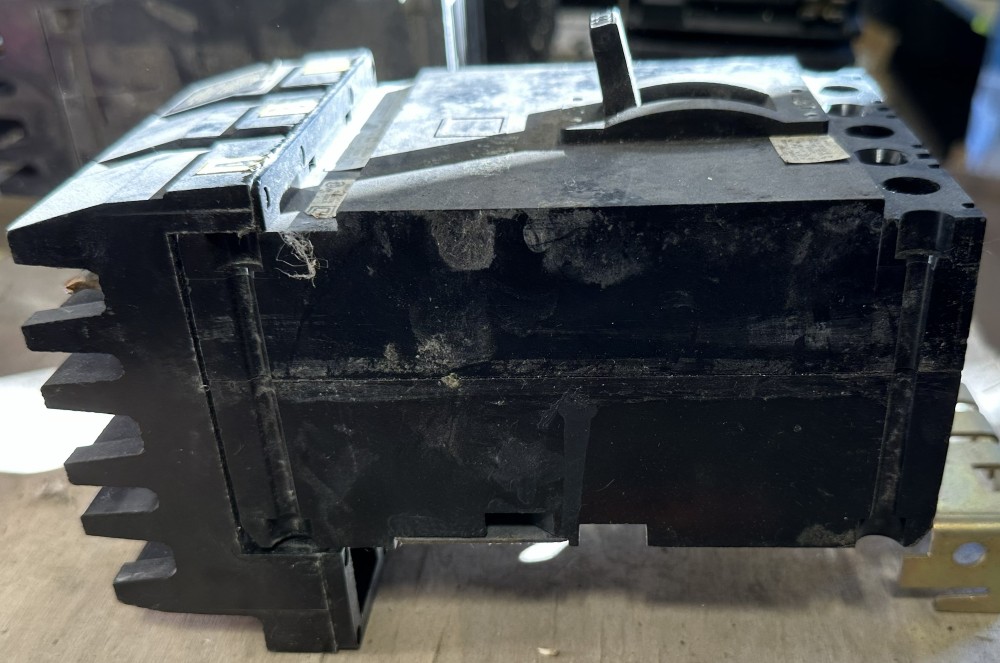

Square D Company Canada Limited Type FA thermal-magnetic molded case circuit breaker, probable catalog FA36100, rated 100A, 3-pole, 600V AC / 125-250V DC, with fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V. Plug-in jaws on line end with A-B-C phase labels. Mounting bracket at load end. UL listed. Two units available – priced each.
SPECIFICATIONS
Manufacturer: Square D Company Canada Limited
Series: Type FA (Issue No. LC-804)
Catalog #: Probable FA36100
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 3
Current Rating: 100A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 125-250V DC
Interrupting Rating: 18,000A @ 240V AC, 14,000A @ 480V AC, 14,000A @ 600V AC
Line Connection: Plug-in jaws, phase labels A, B, C
Accessories: Mounting bracket at load end
Approvals: UL Listed
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1571
