100A, Square D, Type FA Plug-In, Molded Case Circuit Breaker (probable FA26100), 2-Pole, 600 VAC, 14kA @ 600V

Details

Description

Square D Type FA Plug-In Molded Case Circuit Breaker – Probable FA26100
100A – 2-Pole (3-Pole Frame, Poles A & C) – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 14kA @ 480V / 600V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

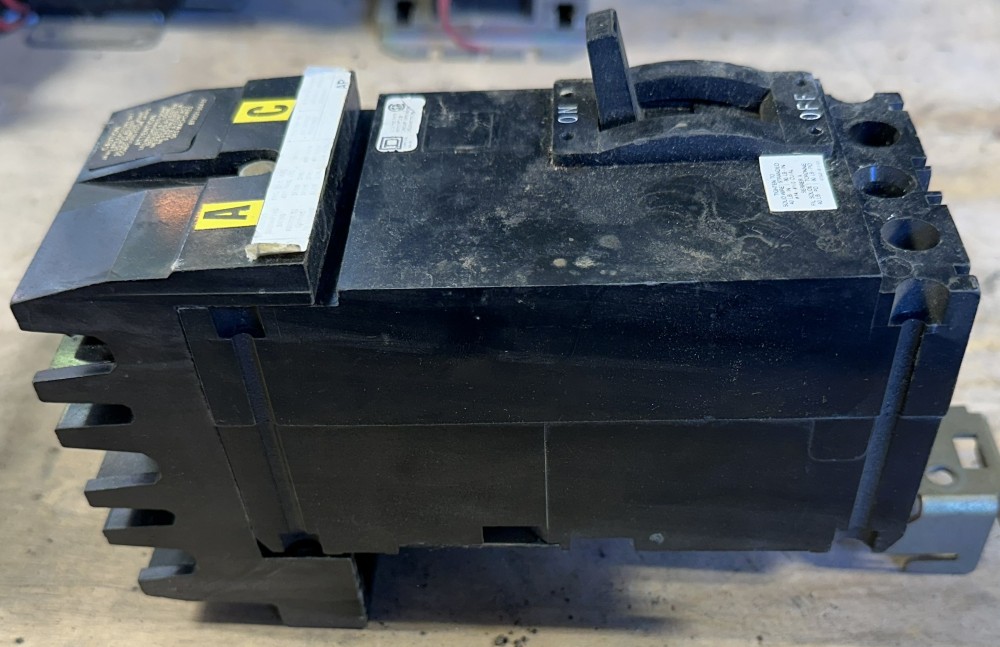

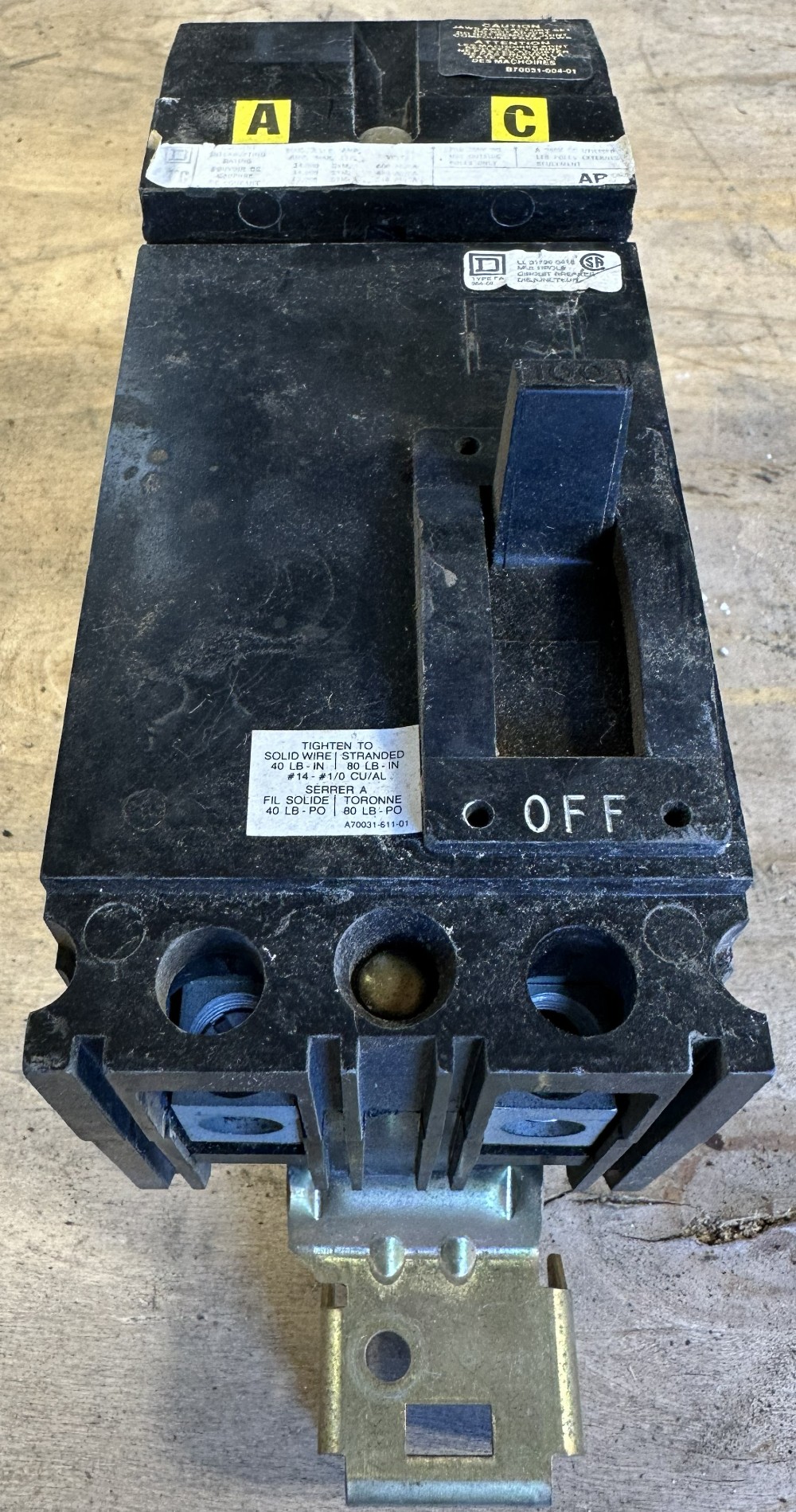

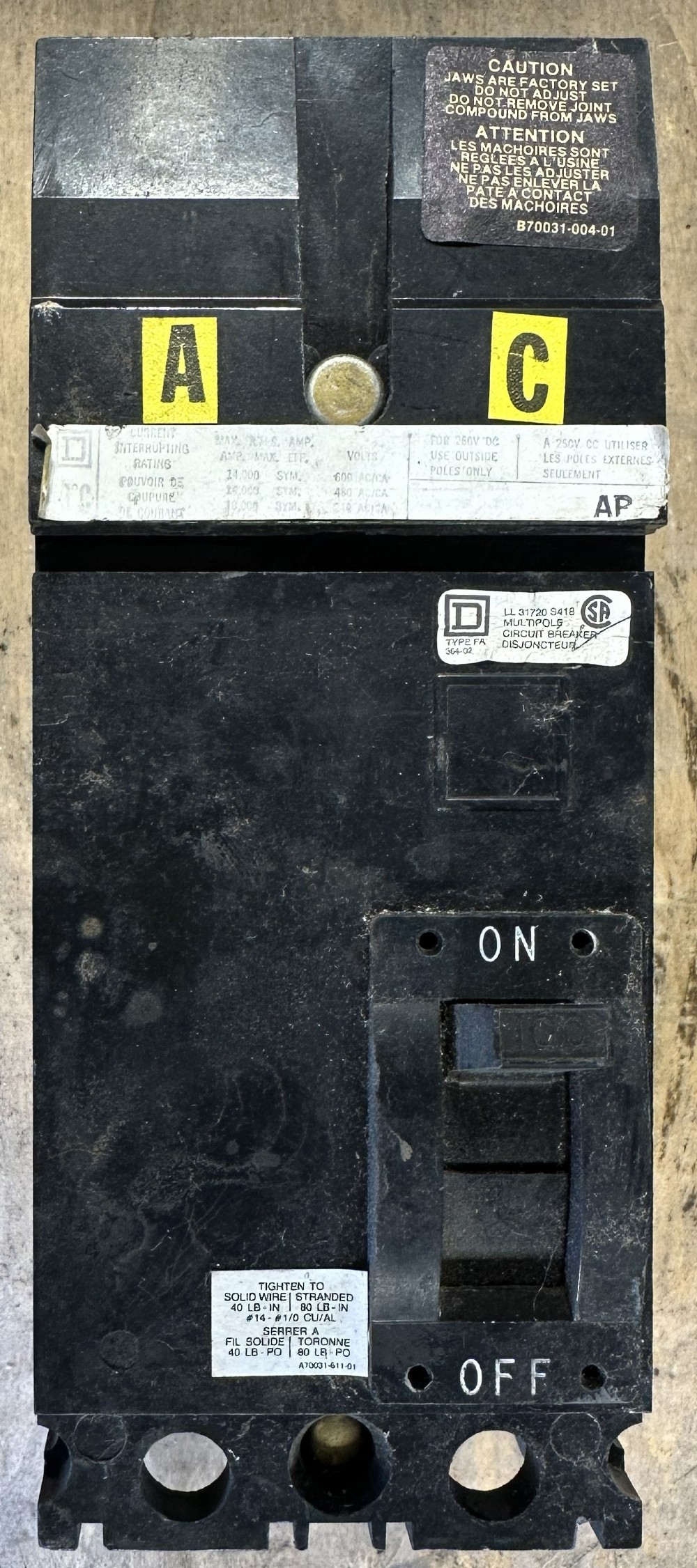

Square D Type FA thermal-magnetic molded case circuit breaker, probable catalog FA26100, rated 100A at 40°C, 2-pole (poles A and C in a 3-pole frame), 600V AC; 250V DC using outside poles. Fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V. Plug-in jaws on line end (factory set); load-side terminals for #14–1/0 Cu/Al. Mounting bracket at load end. CSA certified.

SPECIFICATIONS

Manufacturer: Square D
Series: Type FA
Catalog #: Probable FA26100
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 2 (poles A and C, in 3-pole frame)
Current Rating: 100A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC; 250V DC (outside poles)

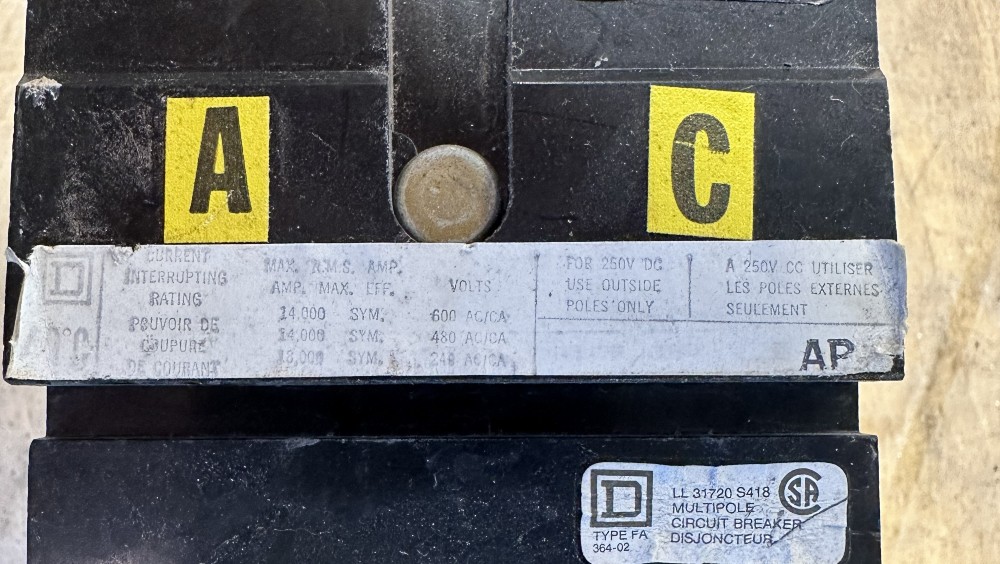

Interrupting Rating: 18,000A @ 240V, 14,000A @ 480V, 14,000A @ 600V
Line Connection: Plug-in jaws (factory set)
Load Terminals: #14–1/0 Cu/Al; solid 40 lb-in / stranded 80 lb-in
Accessories: Mounting bracket at load end
Approvals: CSA (LL 31720 S418, Type FA 364-02)

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1567
