Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | TYPE FA |
| Stock # | CB - 1574 |
Description

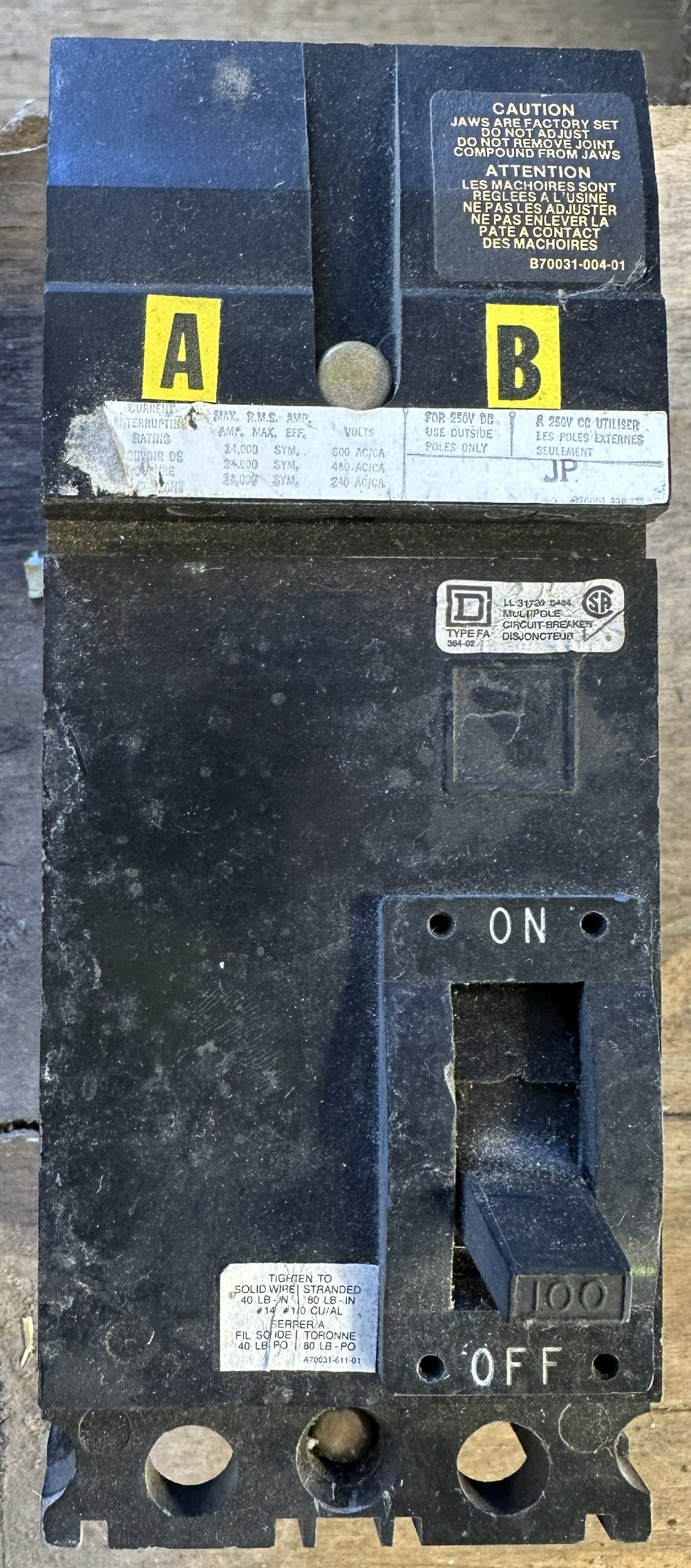

Square D Type FA Plug-In Molded Case Circuit Breaker – Probable FA26100 – Phases A-B
100A – 2-Pole (3-Pole Frame, Poles A & B) – 600V AC – Thermal-Magnetic, Fixed Trip – 14kA @ 480V / 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D Type FA thermal-magnetic molded case circuit breaker, probable catalog FA26100, rated 100A, 2-pole on phases A and B in a 3-pole frame, 600V AC; 250V DC rated. Fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V. Plug-in jaws on line end (factory set); load-side terminals for #14–1/0 Cu/Al. Mounting bracket at load end. CSA certified.
Please note: Poles are on phases A and B (not A and C). Please confirm phase configuration suits your application.
SPECIFICATIONS
Manufacturer: Square D
Series: Type FA
Catalog #: Probable FA26100
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 2 (phases A and B, in 3-pole frame)
Current Rating: 100A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC; 250V DC
Interrupting Rating: 18,000A @ 240V, 14,000A @ 480V, 14,000A @ 600V
Line Connection: Plug-in jaws (factory set)
Load Terminals: #14–1/0 Cu/Al; solid 40 lb-in / stranded 80 lb-in
Accessories: Mounting bracket at load end
Approvals: CSA (LL 31720 S484, Type FA 364-02)
CONDITION

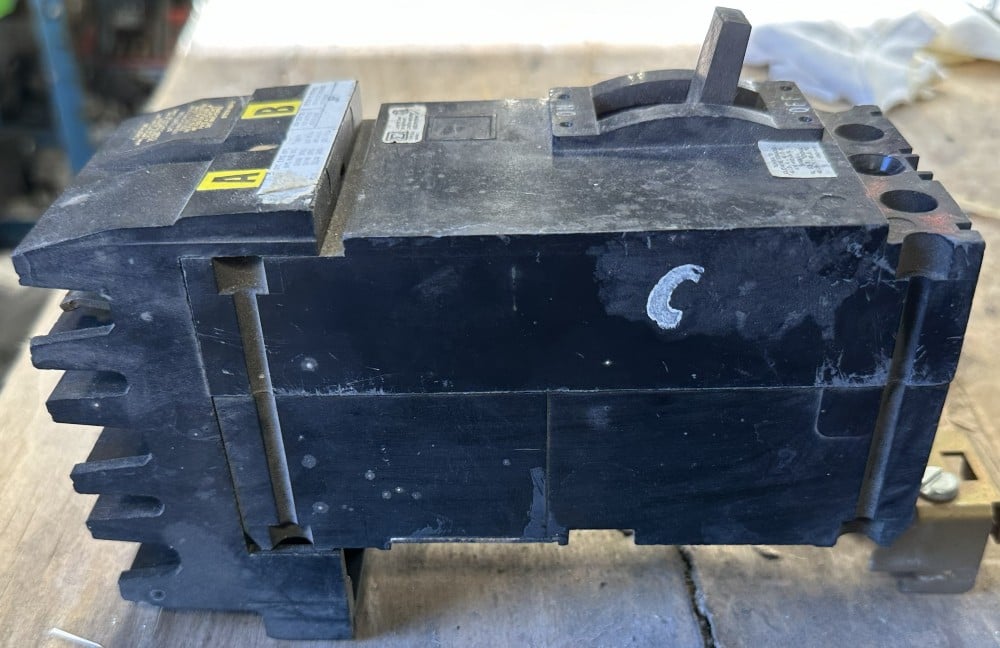

Condition: Used – As-Is. Paint marking on side of case.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1574
