Square D Type FA Non-Automatic Circuit Interrupter – I-Line Plug-In
100A, 600 VAC / 250 VDC, 3 Pole – Molded Case Switch (No Trip Unit)

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

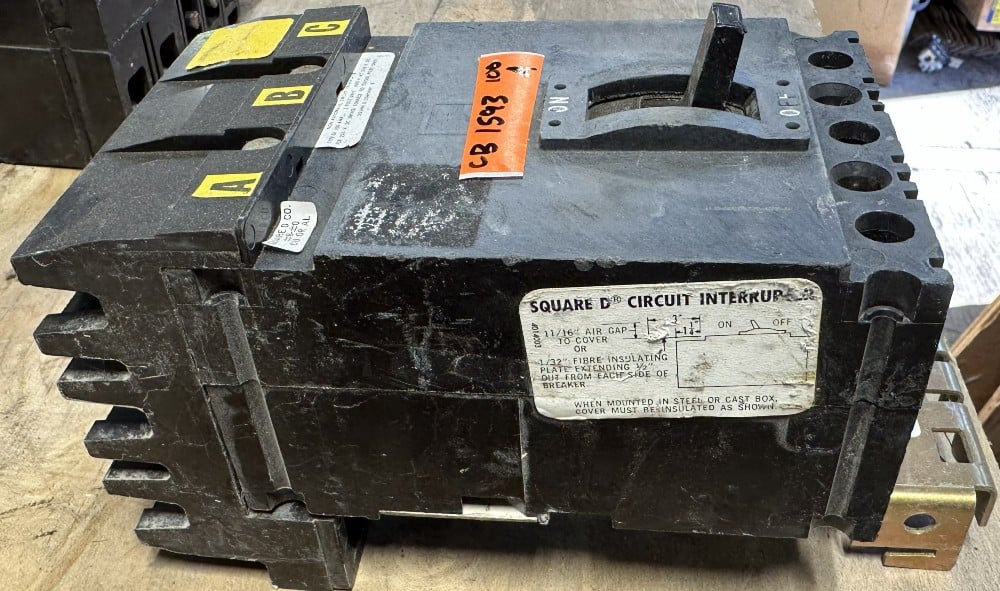

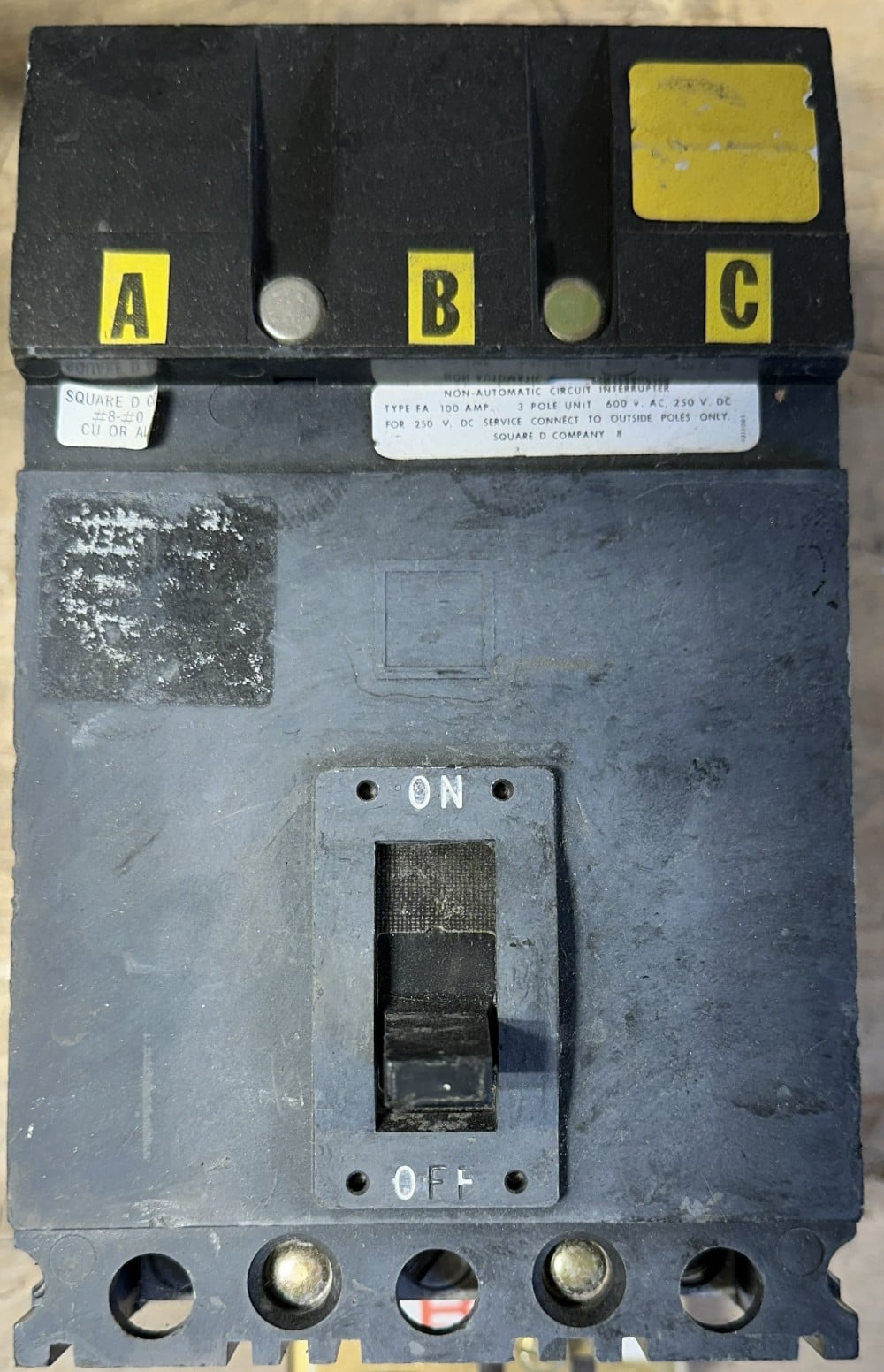

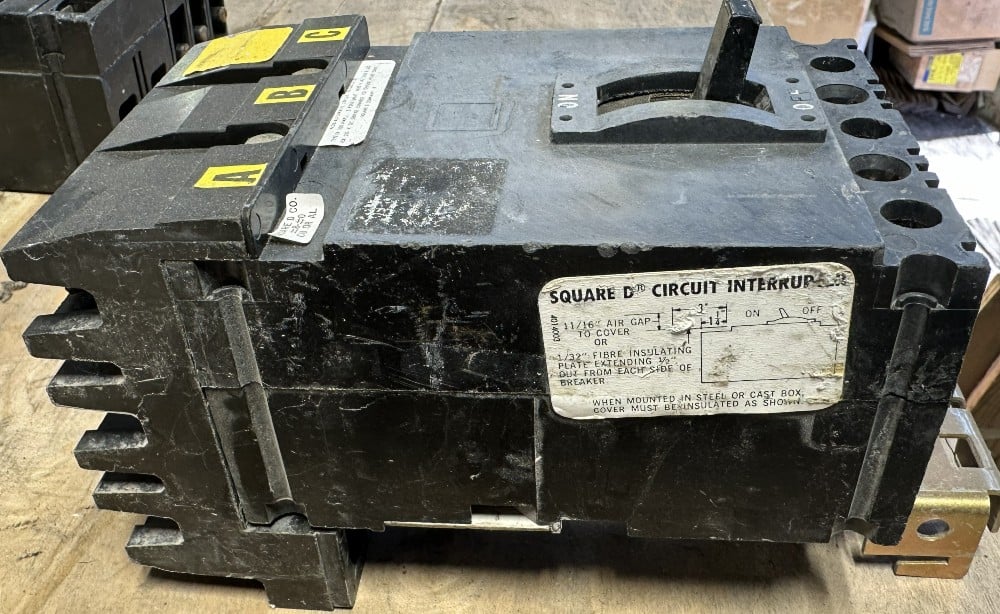

Square D Type FA non-automatic 3-pole circuit interrupter (molded case switch), 100A frame, rated 600 VAC / 250 VDC. It has I-Line plug-in jaws on the line end for mounting in Square D I-Line panelboards and switchboards, and load-side lugs for #8–#0 Cu or Al conductors. The side label reads “Square D Circuit Interrupter”, and the phases are marked A-B-C on the line end.

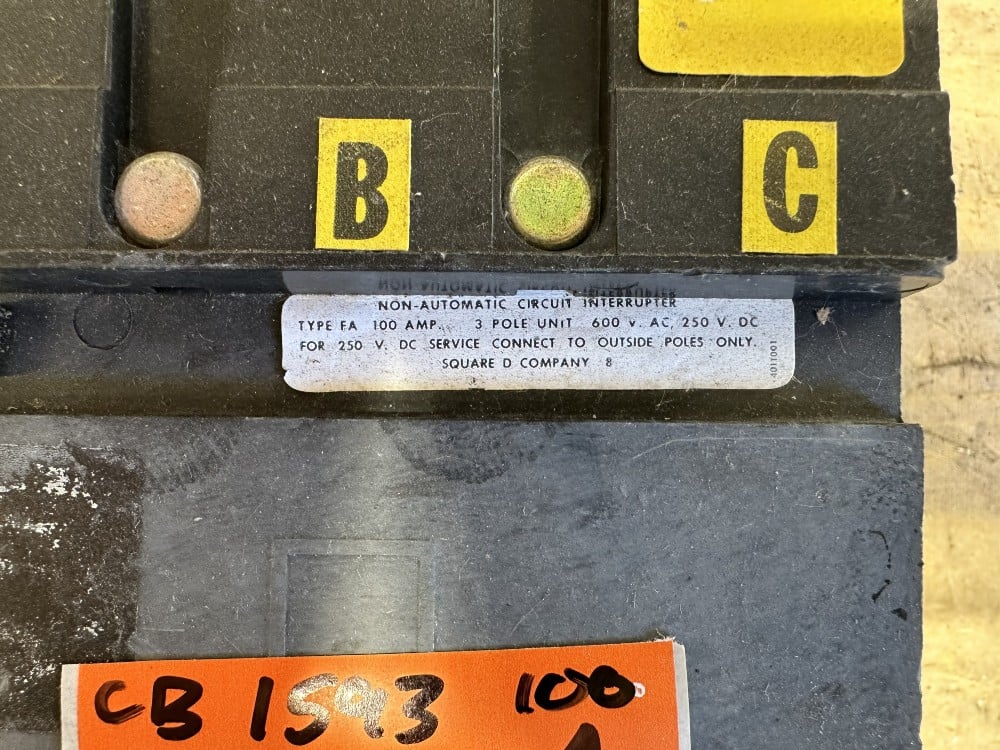

IMPORTANT: This is a NON-AUTOMATIC unit with no trip unit. It works as a disconnect switch only and gives NO overload or short-circuit protection. It must be protected by a suitably rated upstream overcurrent device. For 250 VDC service, connect to the outside poles only. When mounted in a steel or cast box, the cover must be insulated (11/16 in. air gap or 1/32 in. fibre insulating plate).

SPECIFICATIONS
Manufacturer: Square D Company
Type: FA Non-Automatic (Circuit Interrupter / Molded Case Switch)
Frame / Rating: 100A
Voltage: 600 VAC / 250 VDC
Poles: 3
Trip Unit: None (non-automatic)
Line End: I-Line plug-in jaws
Load-Side Lugs: #8 – #0 Cu or Al
Catalogue No.: Not marked
Label No.: 4011001

CONDITION
Used – As-Is. Removed from service. Shows normal signs of use and age, with some label wear. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1593
