Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | QBA32100 |
| Stock # | CB - 1578 |
Description
Square D PowerPact QBA32100 I-Line Molded Case Circuit Breaker, Series 2
100A – 3-Pole – 240V AC – Thermal-Magnetic, Fixed Trip – 10kA @ 240V – I-Line Plug-On
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

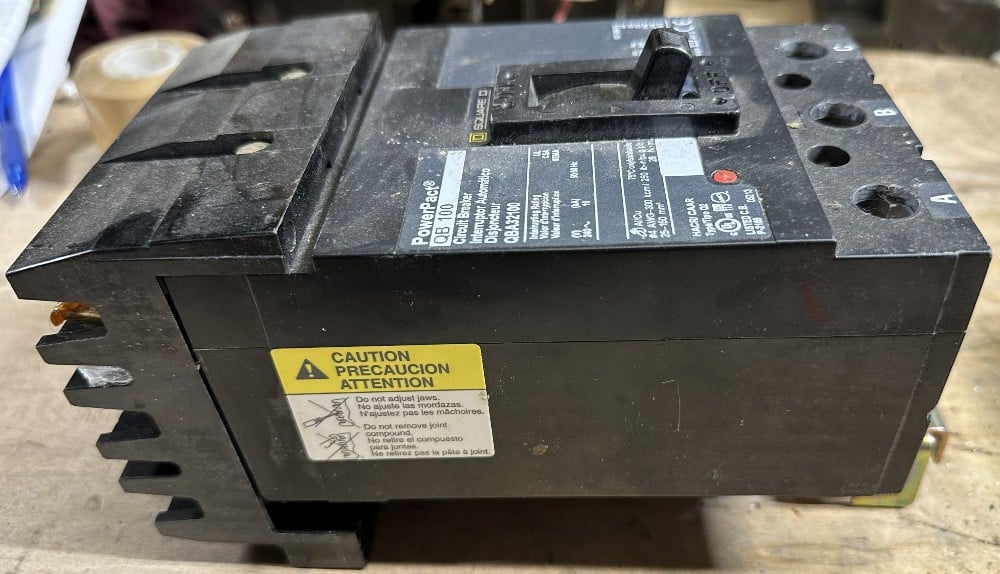

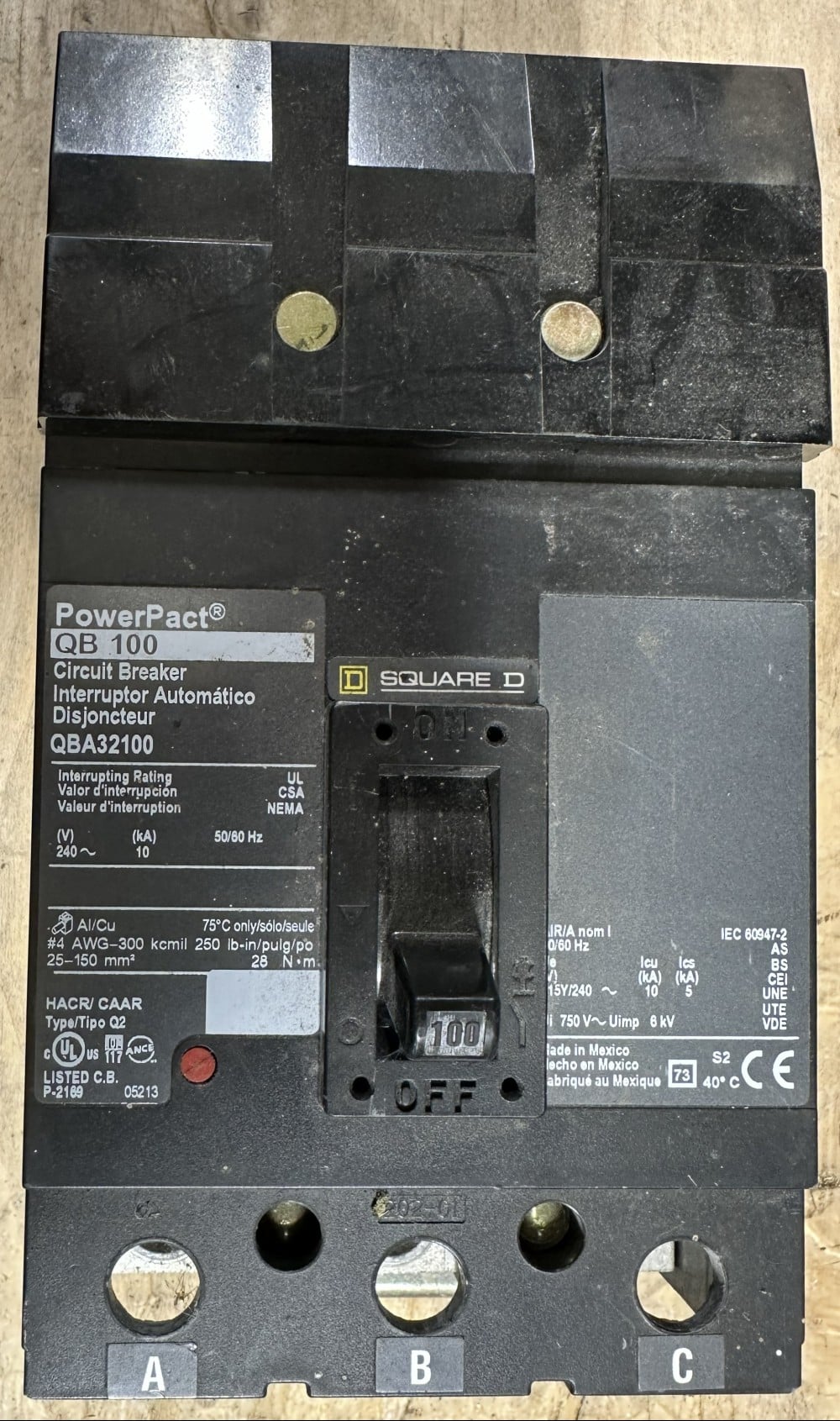

Square D (Schneider Electric) PowerPact Q-frame QB 100 thermal-magnetic molded case circuit breaker, catalog QBA32100, Type Q2, Series 2, with I-Line plug-on mounting. Rated 100A at 40°C, 3-pole, 240V AC 50/60 Hz, with fixed, non-adjustable trip. Interrupting rating of 10kA at 240V. Push-to-trip button. HACR/CAAR rated. Mounting bracket at load end. cULus, NOM, ANCE and CE marked.
SPECIFICATIONS
Manufacturer: Square D (Schneider Electric), Made in Mexico
Series: PowerPact Q-Frame (QB 100), Type Q2, Series 2
Catalog #: QBA32100
Type: Thermal-Magnetic Molded Case Circuit Breaker
Mounting: I-Line Plug-On (factory set)
Poles: 3 (A-B-C)
Current Rating: 100A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 240V AC, 50/60 Hz
Interrupting Rating: 10kA @ 240V (UL/CSA/NEMA); IEC 60947-2 Icu 10kA / Ics 5kA @ 415Y/240V
Insulation: Ui 750V; Uimp 6kV
Wire Rating: Al/Cu #4 AWG–300 kcmil (25–150 mm²), 75°C wire, 250 lb-in (28 N·m)
Features: Push-to-trip button; mounting bracket at load end
Ratings: HACR/CAAR
Approvals: cULus, NOM, ANCE, CE

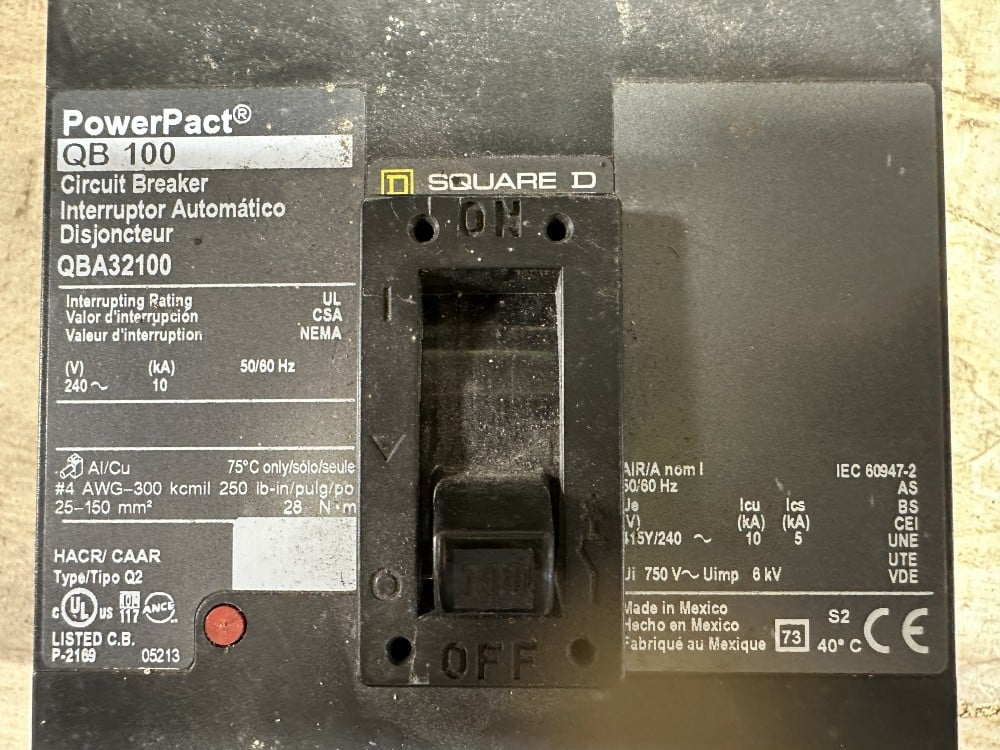

File / Date Code: P-2169 / 05213
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1578
