Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | JK2225F |
| Stock # | CB - 1526 |
Description
Westinghouse AB De-ion JK2225F Molded Case Circuit Breaker
100A Trip Unit in 225A JK-Frame – 2-Pole – 600V AC / 250V DC – Interchangeable Thermal-Magnetic Trip – Adjustable Magnetic HI/LO (2–6)
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Canadian Westinghouse AB De-ion JK-frame molded case circuit breaker, frame catalog JK2225F (225A maximum), 2-pole, 600V AC / 250V DC. Fitted with a 100A interchangeable thermal-magnetic trip unit with adjustable magnetic trip settings (HI/LO, 2–6). Lugs not installed.

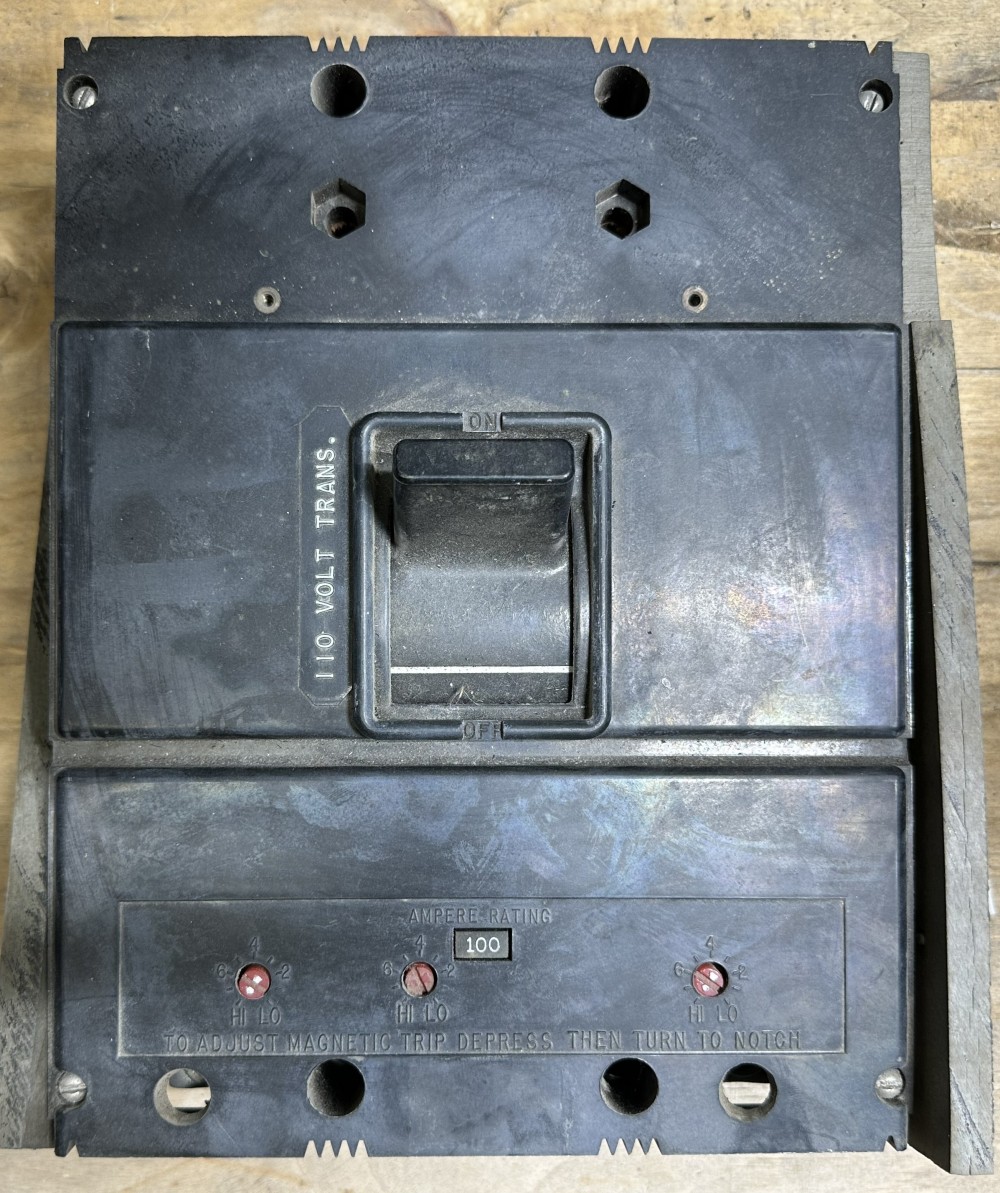

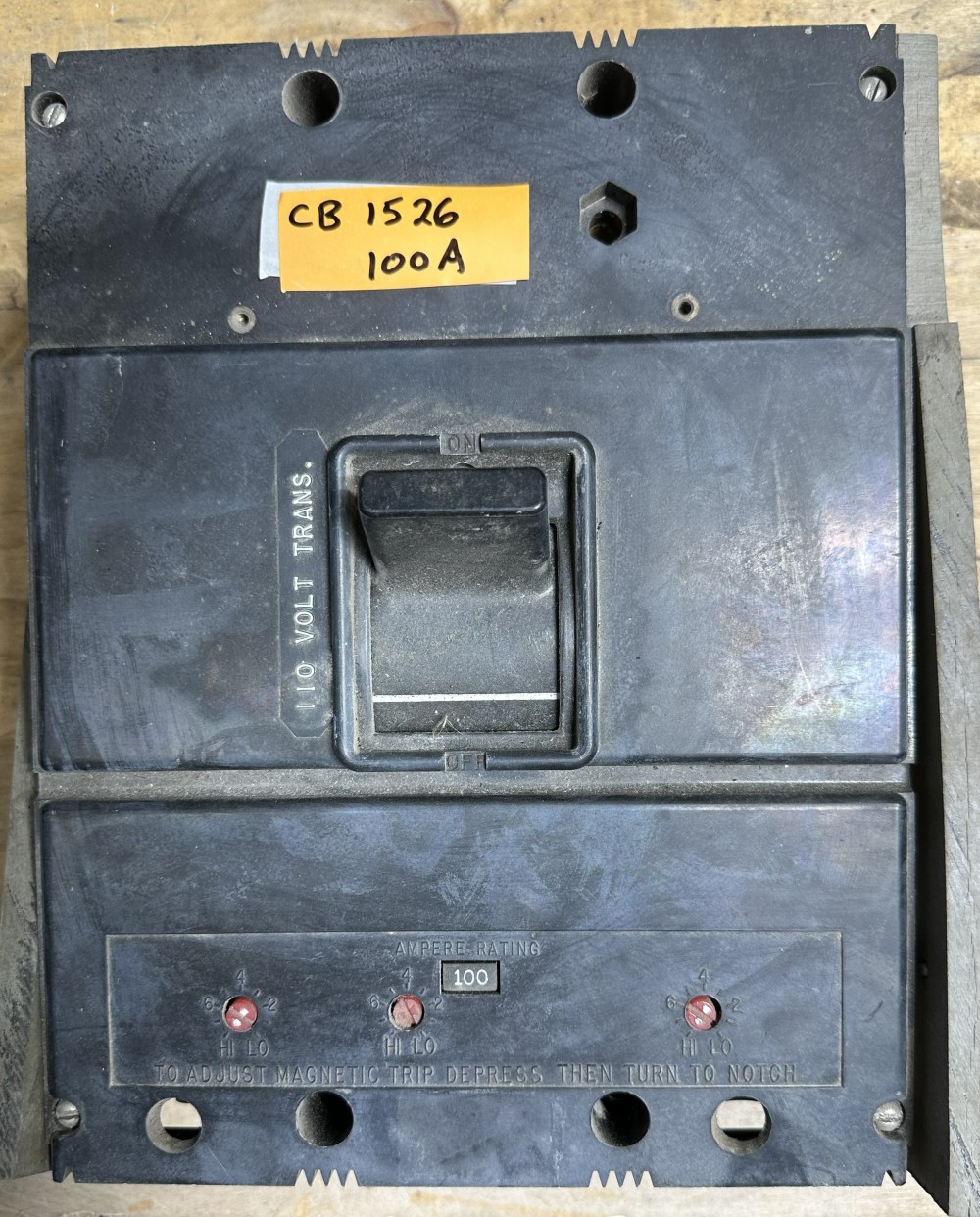

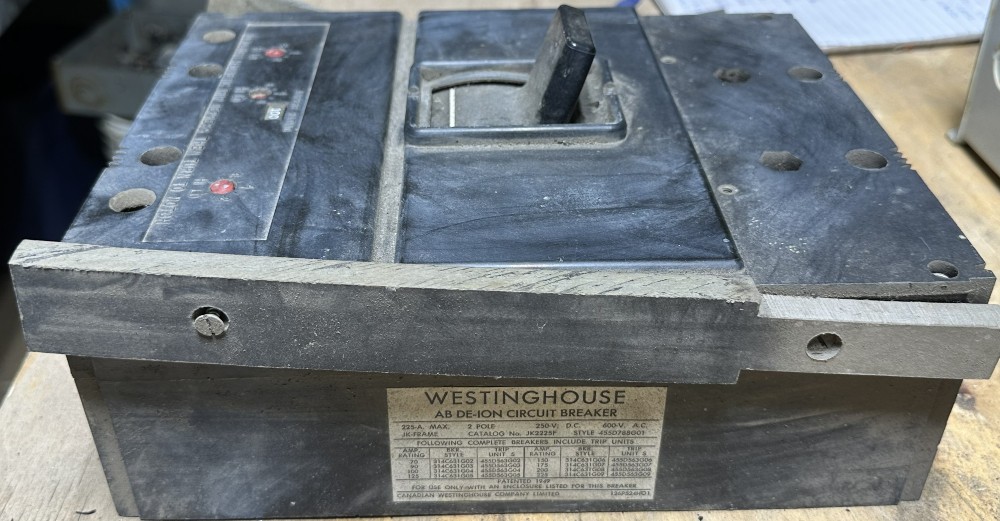

Please note: Cover is marked "110 VOLT TRANS." (circuit identification from previous installation – not a rating). A wooden mounting strip is attached to one side of the case.
SPECIFICATIONS
Manufacturer: Westinghouse (Canadian Westinghouse Company Limited)
Series: AB De-ion, JK-Frame
Frame Catalog #: JK2225F (Style 455D788G01), 225A maximum
Type: Molded Case Circuit Breaker, interchangeable trip unit
Poles: 2
Trip Unit Rating: 100A
Trip Unit: Thermal-Magnetic, interchangeable

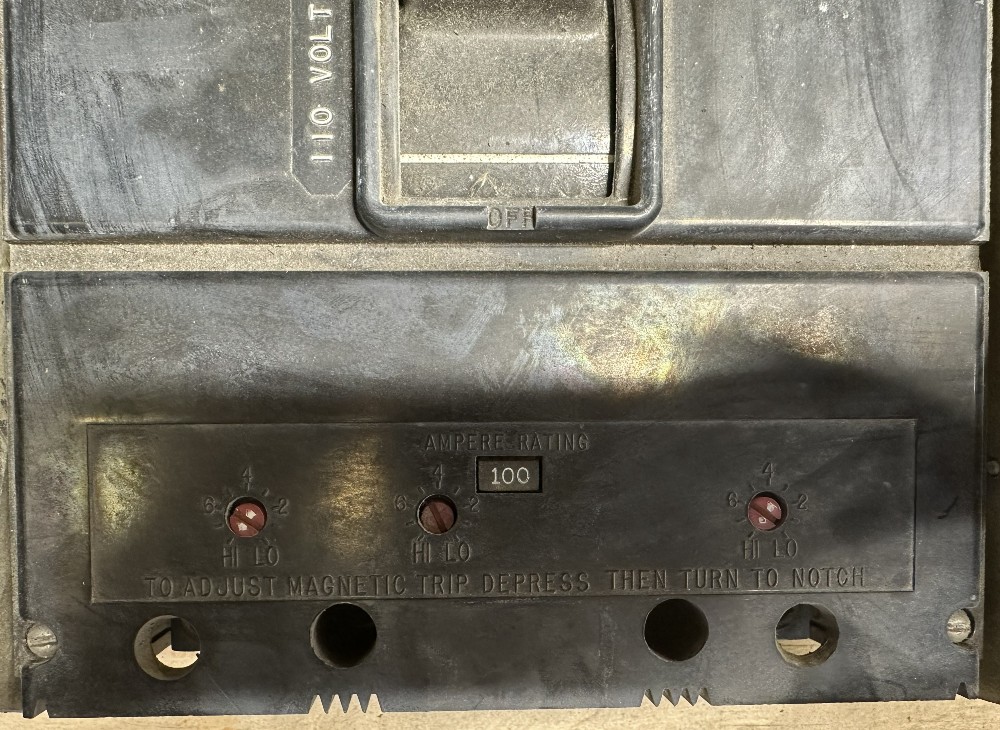

Magnetic Trip Adjustment: HI/LO (2–6)
Voltage: 600V AC / 250V DC

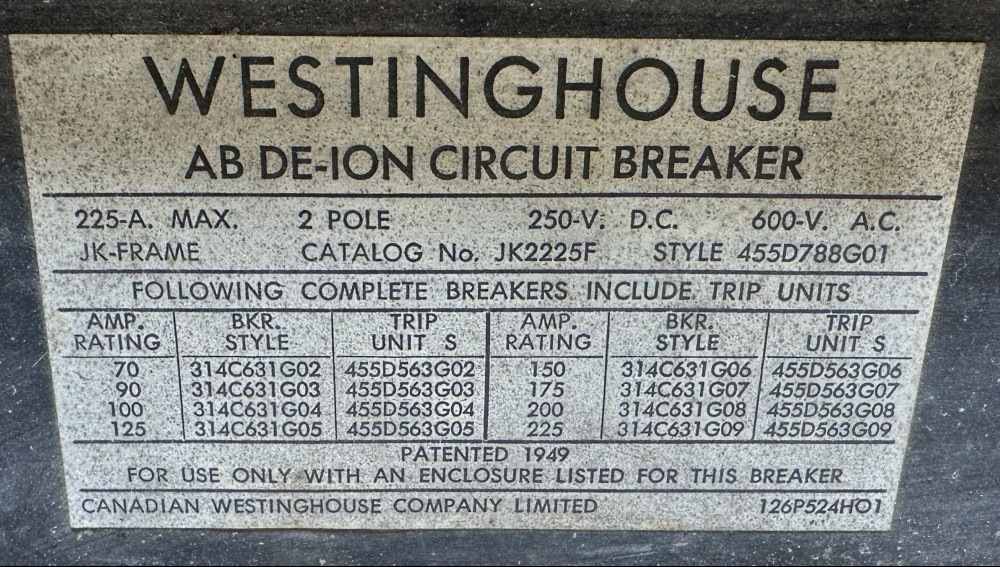

Style #s for 100A (per nameplate): Breaker 314C631G04; Trip Unit 455D563G04
Lugs: Not installed
Patent Date: 1949
CONDITION
Condition: Used – As-Is. Cover marked "110 VOLT TRANS."; wooden mounting strip attached to one side.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1526
