Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | HFB3100 |
| Stock # | CB - 1512 |
Description
Westinghouse Mark 75 HFB3100 High Interrupting Molded Case Circuit Breaker
100A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 65kA @ 240V / 25kA @ 480V / 18kA @ 600V
>> Qty 2 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Westinghouse Canada Mark 75 HFB high interrupting thermal-magnetic molded case circuit breaker, catalog HFB3100, rated 100A, 3-pole, 600V AC with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 25,000A at 480V and 18,000A at 600V. Calibrated at 40°C, Cu/Al wire rated. Two units available – priced each.
SPECIFICATIONS
Manufacturer: Westinghouse (Westinghouse Canada Inc.)
Series: Mark 75 HFB (High Interrupting)
Catalog #: HFB3100
Style #: 4976D04G44
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 100A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 65,000A @ 240V, 25,000A @ 480V, 18,000A @ 600V
Calibration: 40°C
Wire Rating: Cu/Al
CONDITION

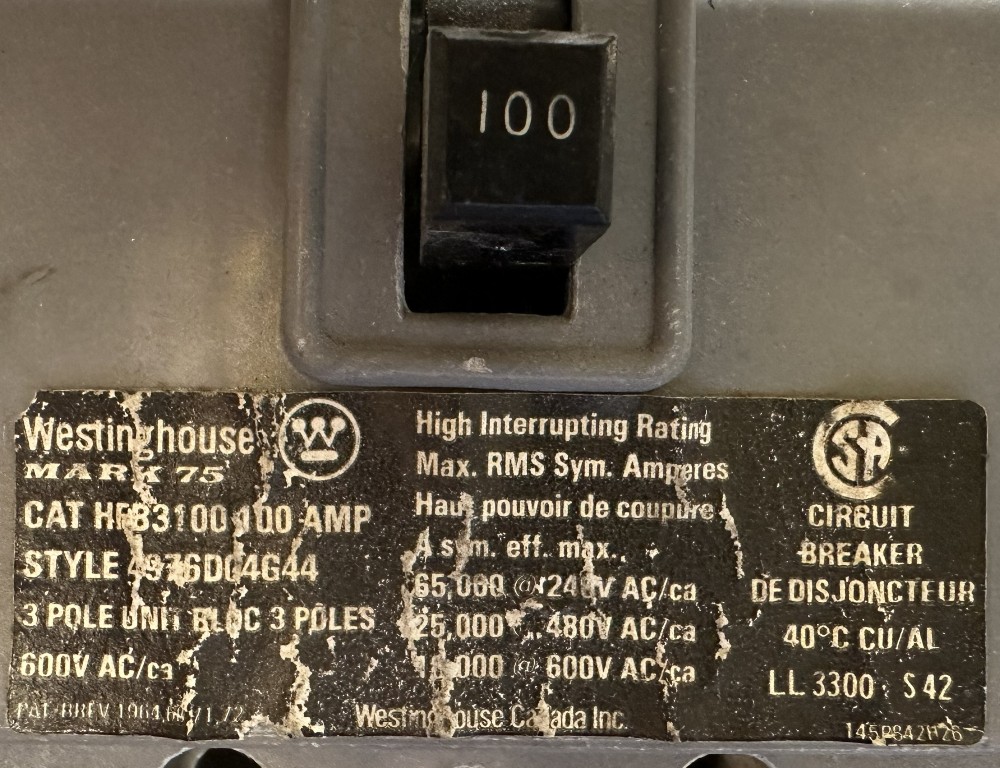

Condition: Used – As-Is. Nameplate label worn but legible.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1512
