Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | HLA36100 |
| Stock # | CB - 1505 |
Description

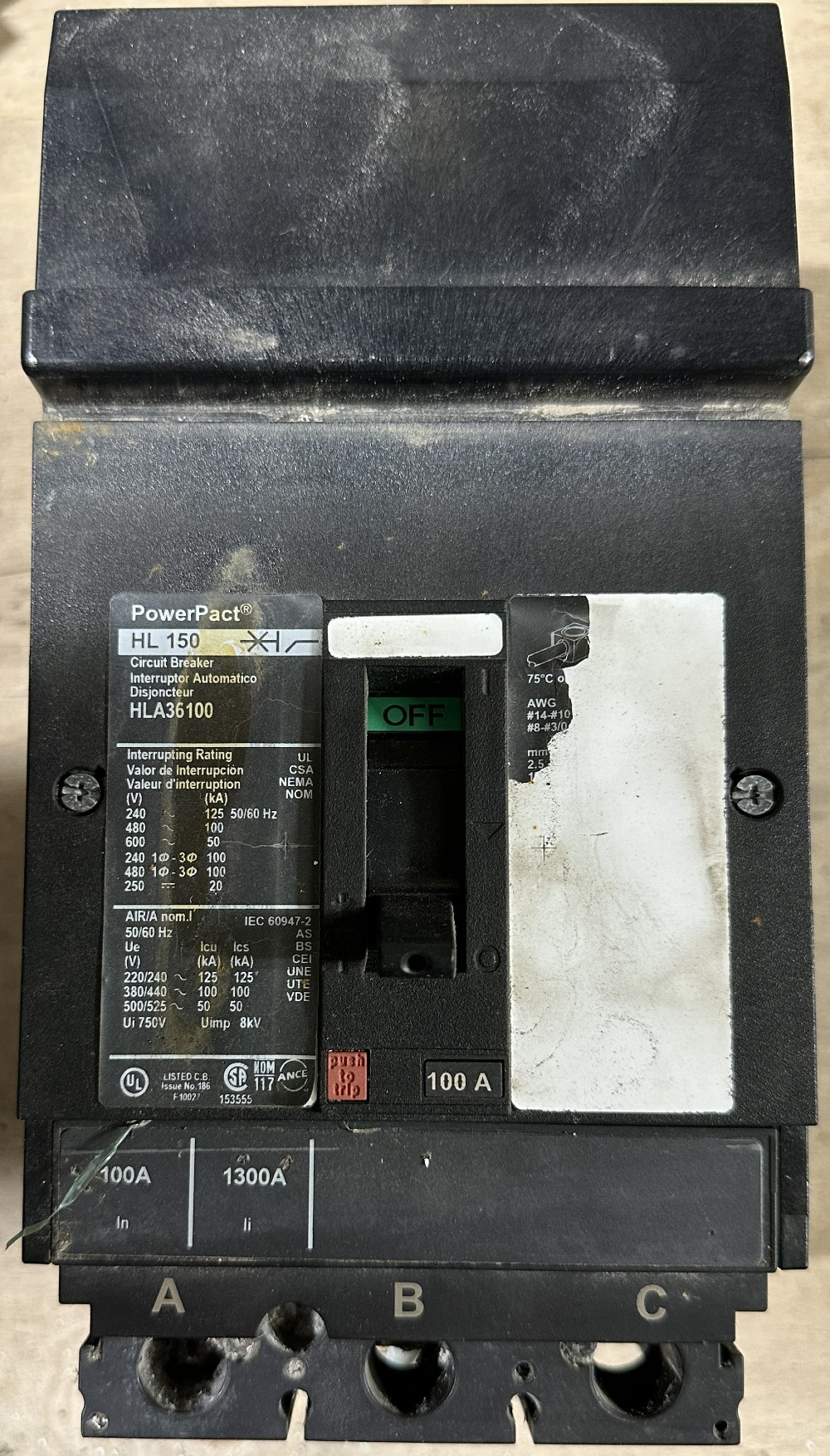

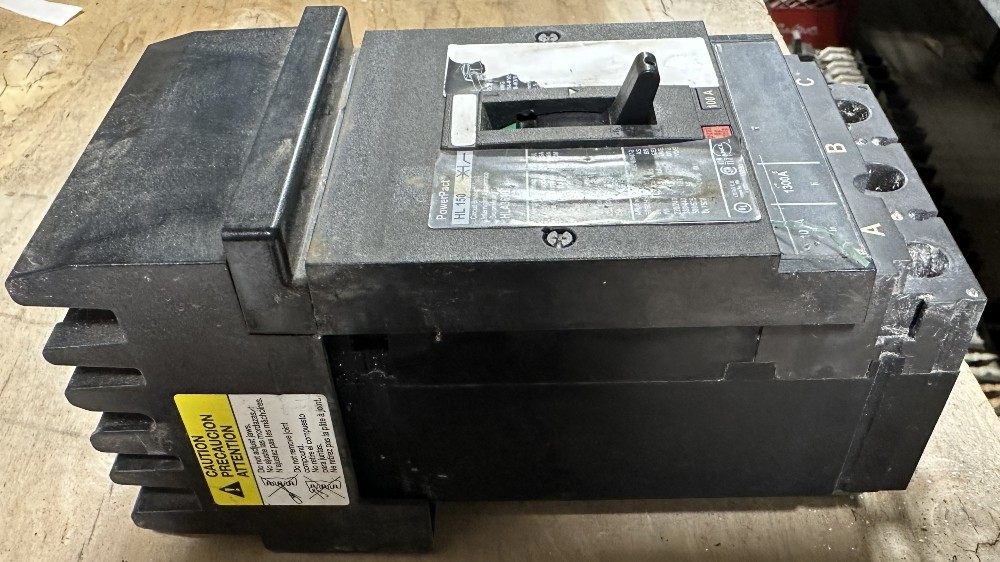

Square D PowerPact HLA36100 I-Line Molded Case Circuit Breaker
100A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 100kA @ 480V / 50kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D (Schneider Electric) PowerPact H-frame HL 150 thermal-magnetic molded case circuit breaker, catalog HLA36100, with I-Line plug-in mounting. Rated 100A, 3-pole, 600V AC / 250V DC, with fixed, non-adjustable trip (In 100A, Ii 1300A). High interrupting capacity of 125kA at 240V, 100kA at 480V and 50kA at 600V.
SPECIFICATIONS
Manufacturer: Square D (Schneider Electric)
Series: PowerPact H-Frame (HL 150)
Catalog #: HLA36100
Type: Thermal-Magnetic Molded Case Circuit Breaker
Mounting: I-Line Plug-In
Poles: 3 (A-B-C)
Current Rating: 100A (In)
Instantaneous Trip: Ii 1300A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC
Interrupting Rating: 125kA @ 240V, 100kA @ 480V, 50kA @ 600V, 20kA @ 250V DC
Wire Rating: #14–#10 and #8–#3/0 AWG (75°C)
CONDITION
Condition: Used – As-Is. Lug label partly missing.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1505
