Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Gould - Ite |
| Model | EF3B100 |
| Stock # | CB - 1540 |
Description

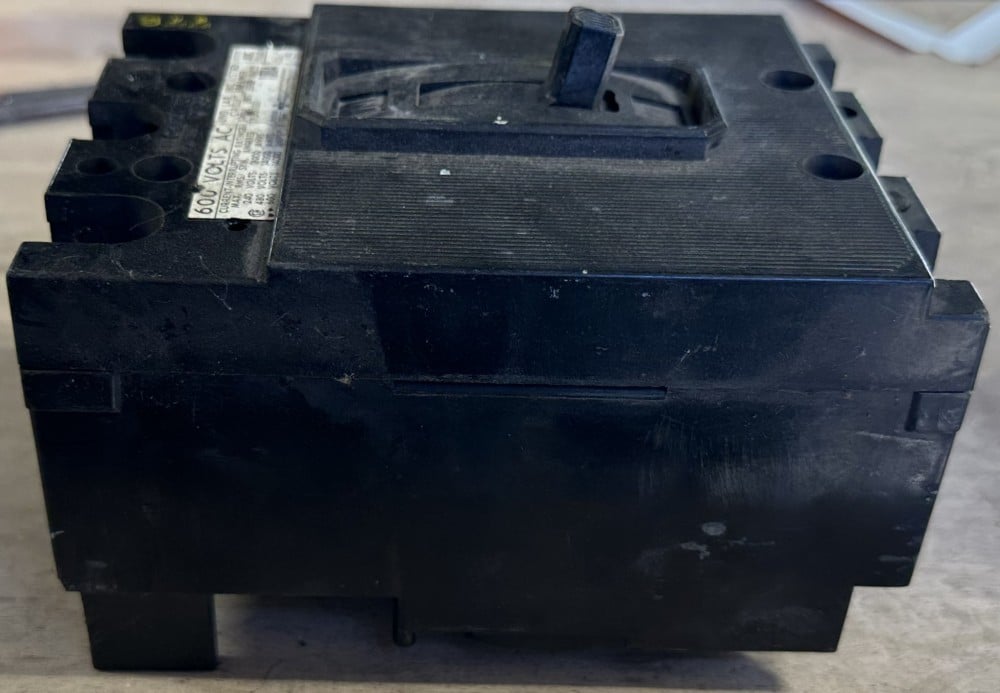

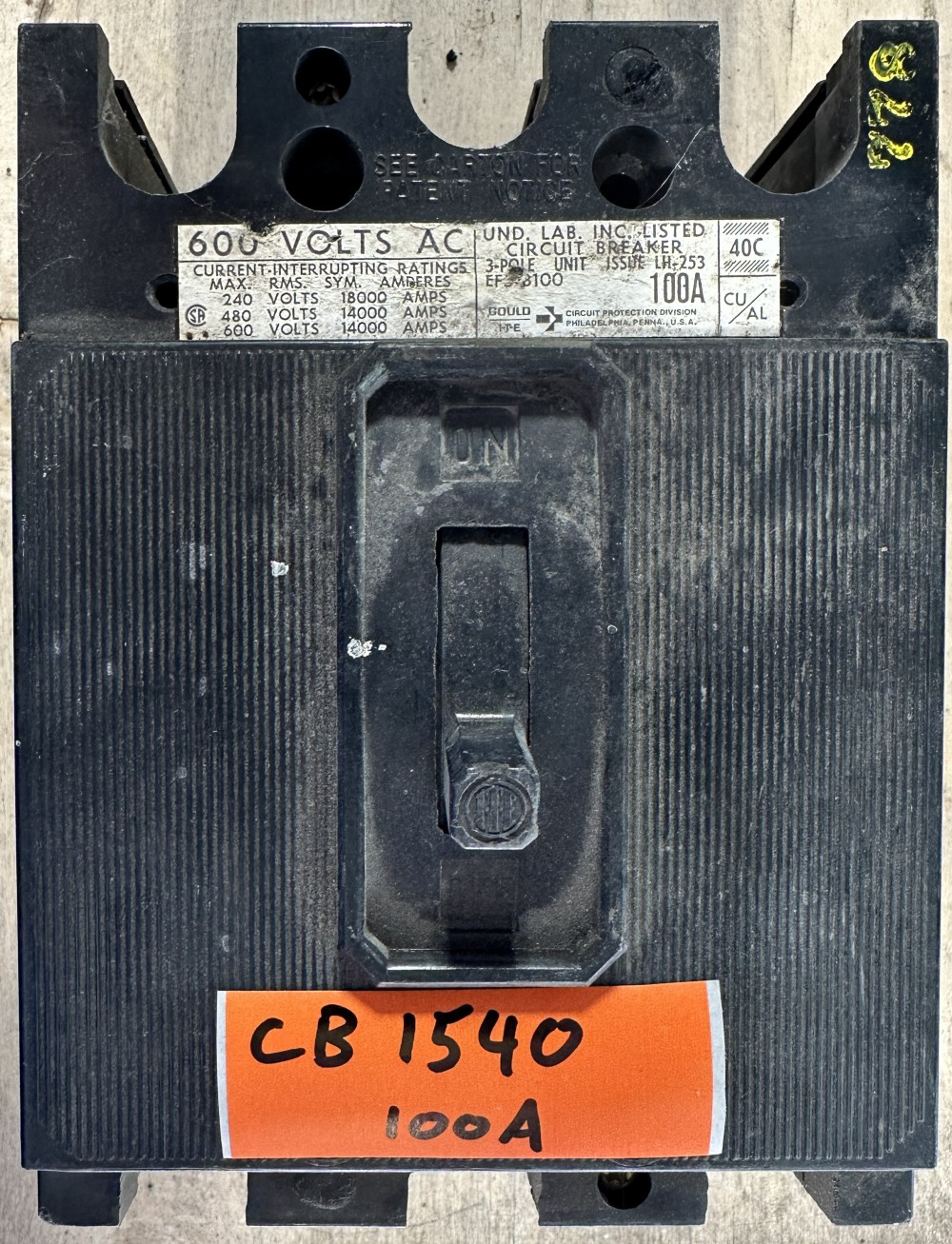

Gould I-T-E Type EF EF3-B100 Molded Case Circuit Breaker
100A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 18kA @ 240V / 14kA @ 480V / 14kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Gould I-T-E (Circuit Protection Division, Philadelphia, PA, U.S.A.) Type EF thermal-magnetic molded case circuit breaker, catalog EF3-B100. Rated 100A at 40°C, 3-pole, 600V AC, with fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V (RMS symmetrical). Cu/Al terminals. UL listed and CSA certified.
SPECIFICATIONS
Manufacturer: Gould I-T-E, Circuit Protection Division, Philadelphia, Pennsylvania, U.S.A.
Series: Type EF
Catalog #: EF3-B100
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 100A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 18,000A @ 240V, 14,000A @ 480V, 14,000A @ 600V (RMS Sym.)
Terminals: Cu/Al
Approvals: UL Listed (Issue No. LH-253), CSA
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1540
