Siemens ED63A010 Motor Circuit Interrupter (Motor Circuit Protector)
10A – 3-Pole – 600V AC / 250V DC – Instantaneous Magnetic Trip Only – Adjustable 30–100A

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

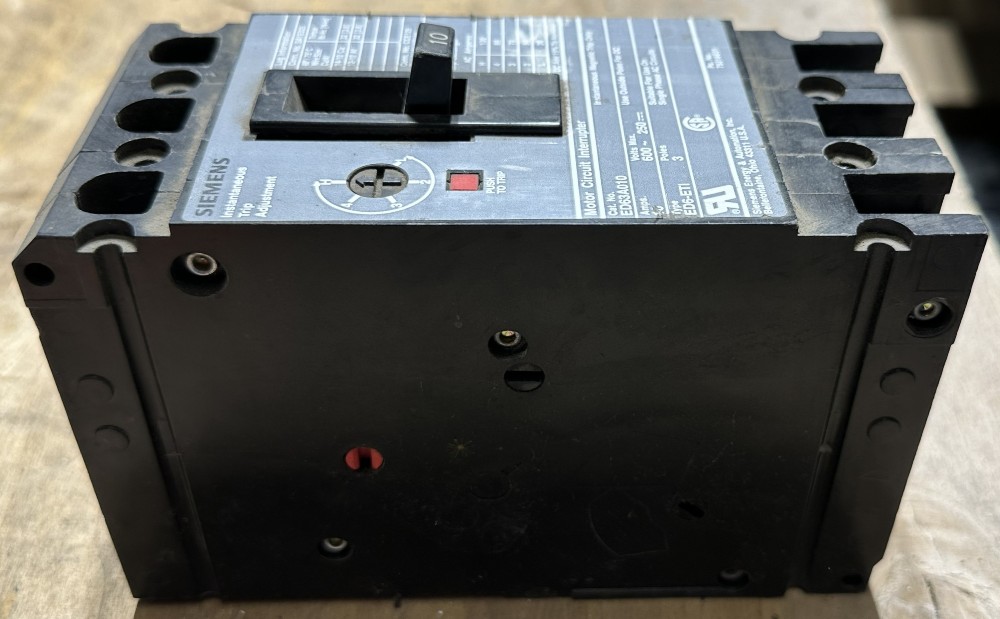

Siemens ED6-ETI motor circuit interrupter, catalog ED63A010, rated 10A, 3-pole, 600V AC / 250V DC. Instantaneous magnetic trip only, adjustable in five settings from 30A to 100A (AC nominal). Suitable for single-phase AC circuits; for DC use outside poles. Wire rating per SA1E025 lugs.

IMPORTANT: Magnetic trip only – provides short-circuit protection only; no thermal (overload) protection. Intended for use with a separate overload relay in a motor circuit.

SPECIFICATIONS

Manufacturer: Siemens (Siemens Energy & Automation, Inc.)
Series: ED6-ETI
Catalog #: ED63A010
Type: Motor Circuit Interrupter (Motor Circuit Protector)
Poles: 3
Current Rating: 10A
Voltage: 600V AC / 250V DC (use outside poles for DC); suitable for single-phase AC circuits
Trip Type: Instantaneous magnetic only – no thermal (overload) element
Trip Settings (AC nominal): L = 30A, 2 = 50A, 3 = 70A, 4 = 85A, H = 100A (DC: add 15%)
Wire Rating: SA1E025 lugs (60/75°C), #14–10 Cu, #12–10 Al
Lug Torque: 32 lb-in (3.6 N·m)
Approvals: UL Listed, CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1510
