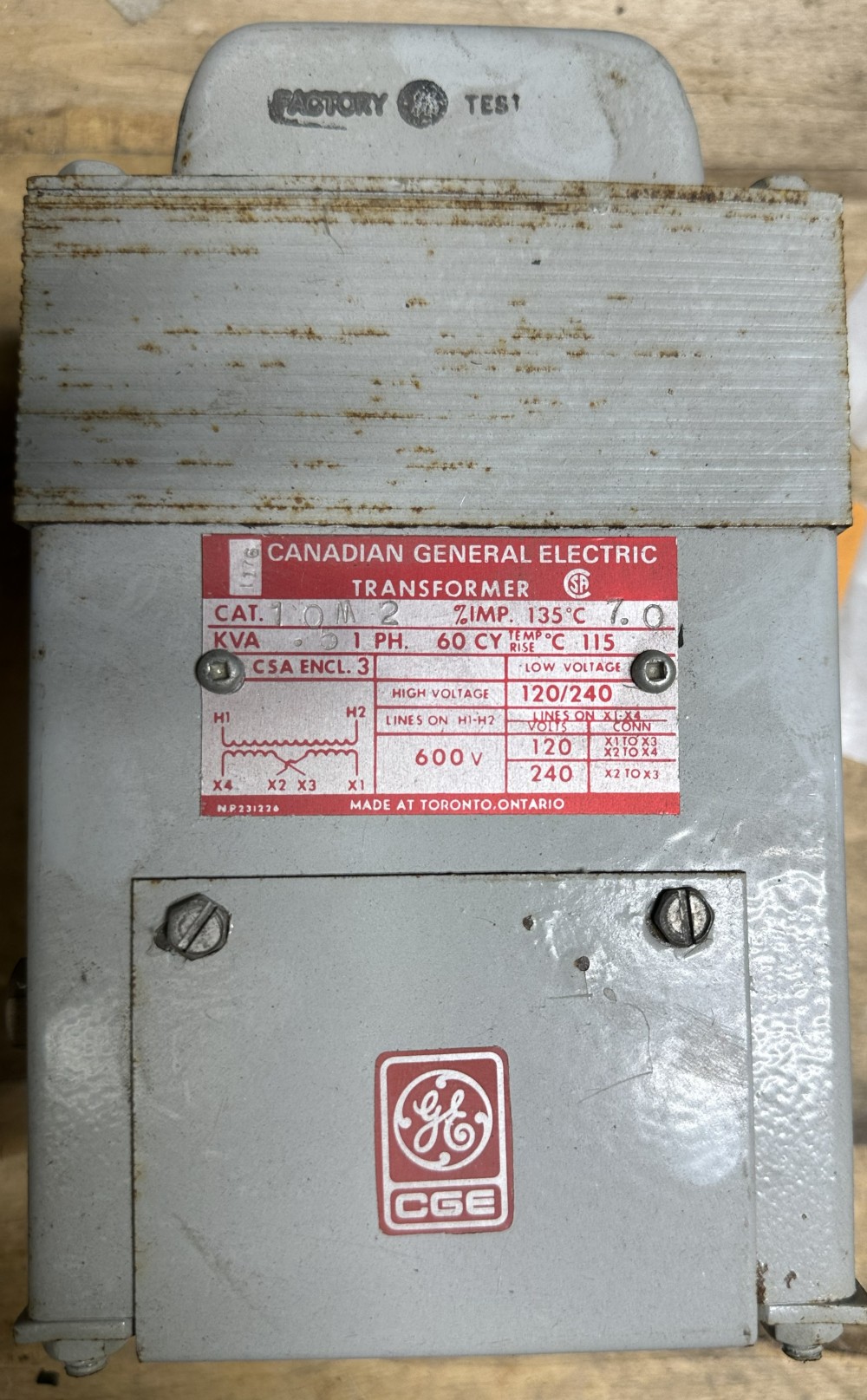

Canadian General Electric 10M2 Single Phase Isolation Transformer
0.5 kVA – 600V Primary – 120/240V Secondary – 60 Hz – CSA Enclosure 3

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

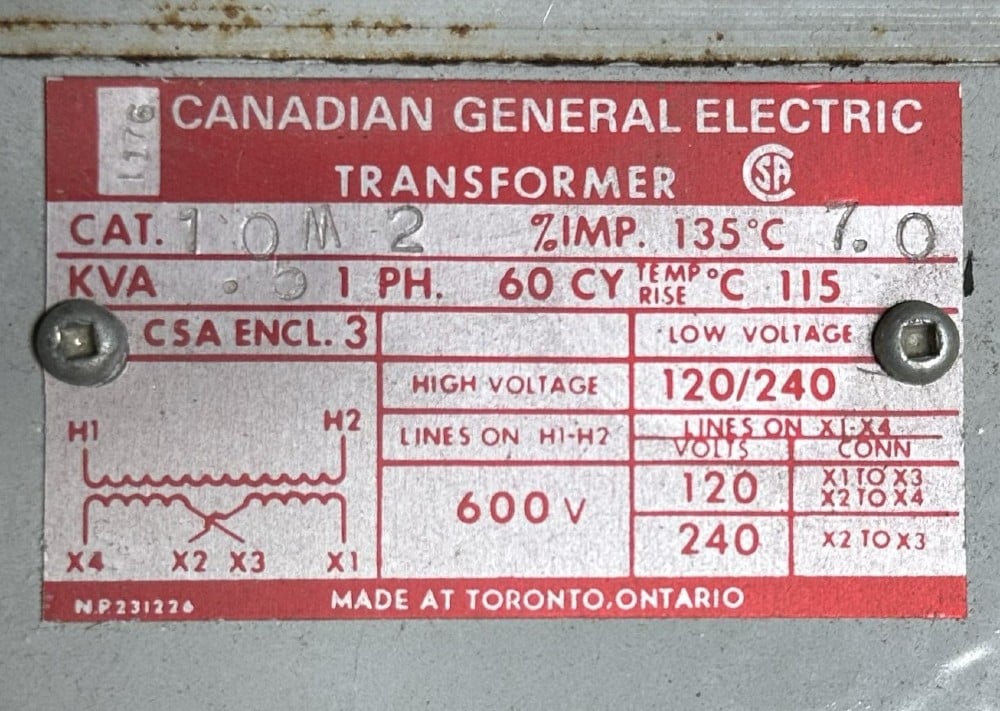

Canadian General Electric single phase dry-type isolation transformer, catalog 10M2, rated 0.5 kVA, 60 Hz. 600V primary (H1–H2) to 120/240V secondary (X1–X4). Secondary connects for 120V (X1 to X3 and X2 to X4, windings in parallel) or 240V (X2 to X3, windings in series). 7.0% impedance at 135°C, 115°C temperature rise. CSA Enclosure 3, CSA certified. Made in Toronto, Ontario.

SPECIFICATIONS

Manufacturer: Canadian General Electric (Made at Toronto, Ontario)
Catalog #: 10M2
Type: Single Phase Dry-Type Isolation Transformer
kVA: 0.5
Phase: Single Phase
Frequency: 60 Hz
Primary (HV): 600V, lines on H1–H2
Secondary (LV): 120/240V, lines on X1–X4
120V Connection: X1 to X3 and X2 to X4 (windings in parallel)
240V Connection: X2 to X3 (windings in series)
Impedance: 7.0% @ 135°C
Temperature Rise: 115°C
Enclosure: CSA Enclosure 3
Nameplate #: NP231226
Approvals: CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: J-1477
